FZK 011 Electronic Thermostat

1. Adjustable temperature
2. High switching capacity
3. Small hysteresis
4. Change-over contact
5. Clip fixing
The mechanical thermostat is used for controlling heating and cooling equipment, filter fans or signal devices. The thermostat registers the surrounding air and can switch both inductive and resistive loads via snap-action contact. Functionality: The temperature setting on the scale equals to the upper switch point, which means that the NC contact opens. The temperature setting minus switch temperature difference (and tolerances) equals to the lower switch point, which means that the NC contact closes.

OnLine Service:

E-mail Us PDF Download
vantoele 75606132
【Prev Products】 【Next Products】

Description

FZK 011 Mechanical Thermostat Cabinet Thermostat Enclosure Thermostat Specificate

Switch temperature difference
4K (± 1.5K tolerance)*
Sensor element
thermostatic bimetal
Contact type
change-over snap-action contact
Contact resistance
< 10mOhm
Service life
> 100 000 cycles
Max. switching capacity, NC
250VAC, 10 (4) A
DC 30W
Max. switching capacity, NO
250VAC, 5 (2) A
DC 30W
EMC
acc. to EN 55014-1-2, EN 61000-3-2, EN 61000-3-3
Connection
4-pole terminal, clamping torque 0.5Nm max.: rigid wire 2.5mm², stranded wire (with wire end ferrule) 1.5mm²
Mounting
clip for 35mm DIN rail, EN50022
Casing
plastic according to UL94 V-0, light grey
Dimensions/weight
67 x 50 x 38mm approx. 0.10kg
Fitting position
variable
Operating/Storage temperature
-20 to +80°C (-4 to +176°F) / -45 to +80°C (-49 to +176°F)
Protection type
IP20
*Connecting terminal "N" (RF heating resistor) causes the thermal feedback to work and so reduces the switch temperature difference to approx. 0.5K.

Art. No.
Operating voltage*
Setting range
01170.0-00
230VAC
+5 to +60°C
01170.0-02
230VAC
-20 to +30°C

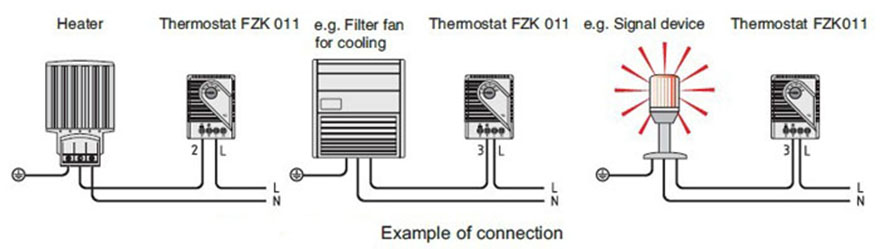

FZK 011 Mechanical Thermostat Cabinet Thermostat Enclosure Thermostat Connection & Drawing 1

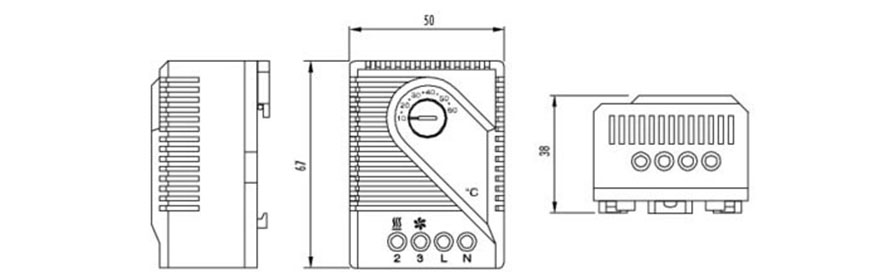

FZK 011 Mechanical Thermostat Cabinet Thermostat Enclosure Thermostat Connection & Drawing 2

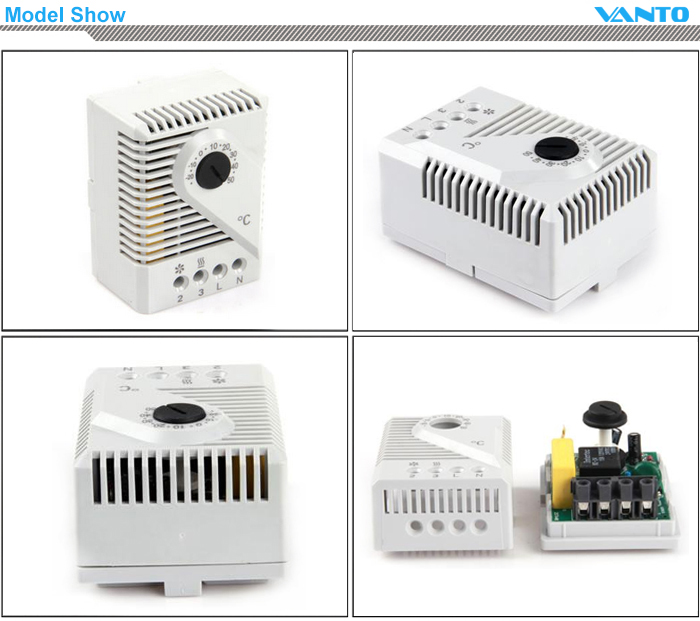

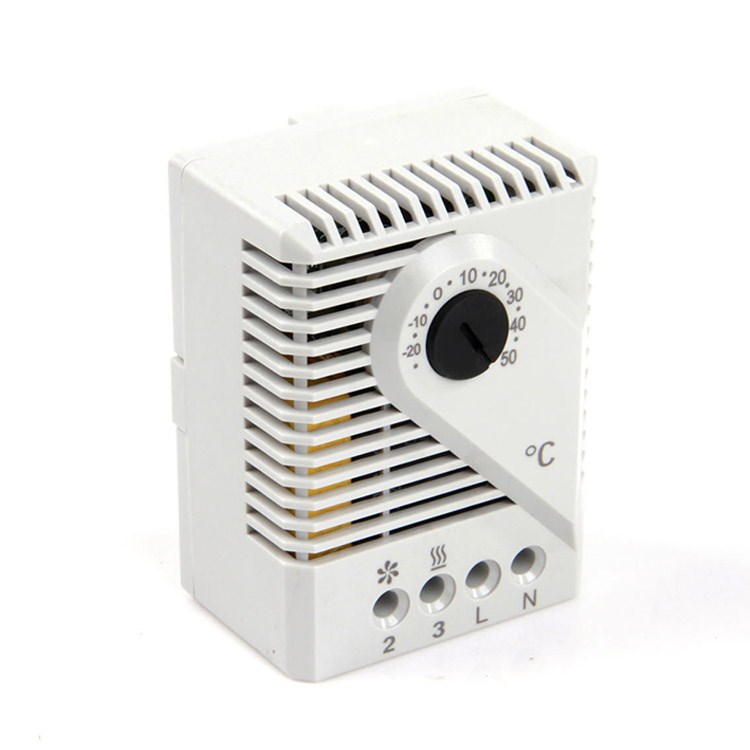

FZK 011 Mechanical Thermostat Cabinet Thermostat Enclosure Thermostat Model Show

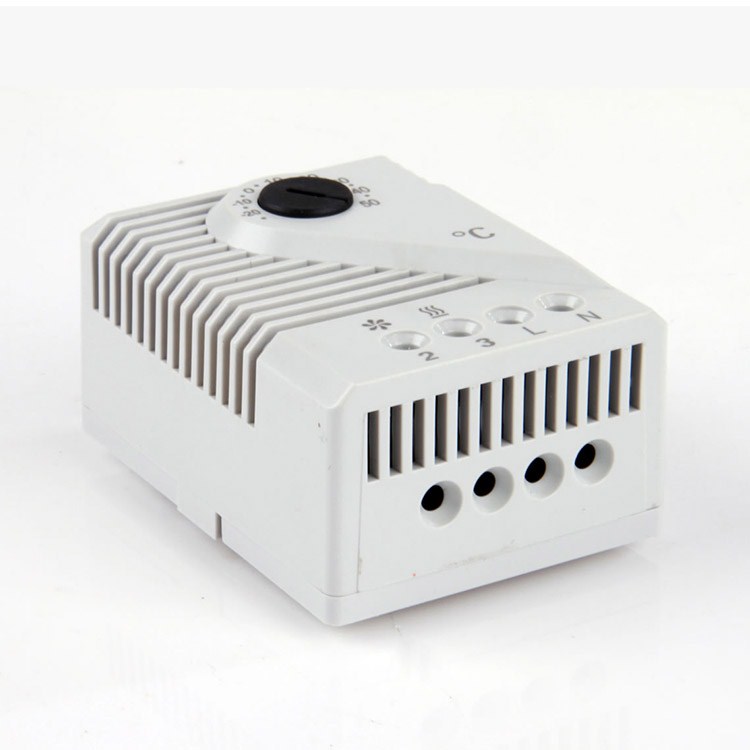

Stego FZK 011 Electronic Thermostat

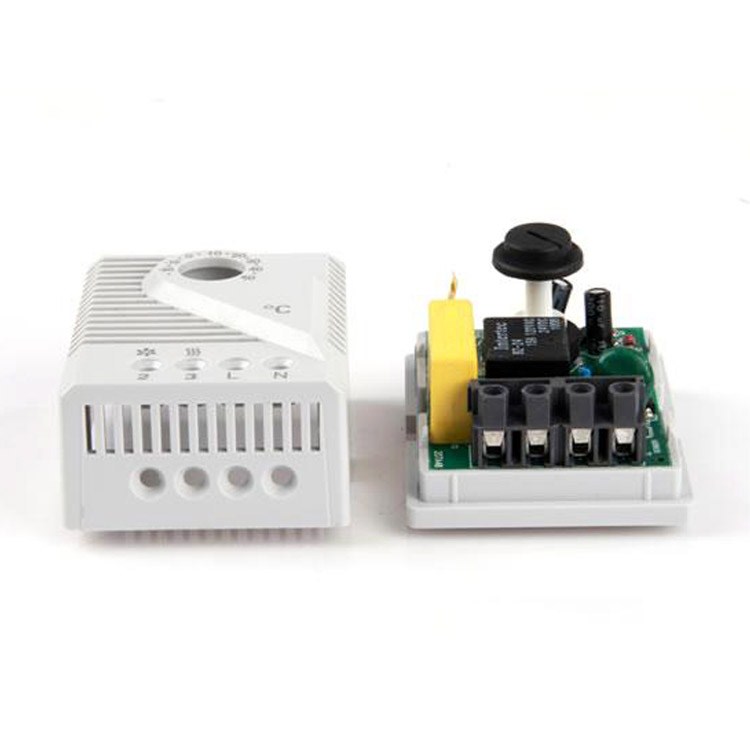

FZK 011 Mechanical Thermostat for Cabinet & Enclosure Temperature Control

FZK 011 Mechanical Thermostat Cabinet Thermostat Enclosure Thermostat for Climate Control Packing Show
