KTO 011 Small Thermostat

1. Large setting range
2. Small size
3. Simple to mount
4. Lifetime warranty
5. High switching performance
6. 1 Piece sample order acceptable

KTO 011: Thermostat(normally closed); contact breaker for regulating heaters. The contact opens when temperature is rising.

OnLine Service:

E-mail Us PDF Download
vantoele 75606132
【Prev Products】 【Next Products】

Description

KTS 011 KTO 011 Small Thermostat Cabinet Thermostat Enclosure Thermostat Specifications

Switch temperature difference:
7K (± 4K tolerance)
Sensor element:
thermostatic bimetal
Contact type:
snap-action contact
Contact resistance:
< 10mOhm
Service life:
> 100 000 cycles
Max. switching capacity:
250VAC, 10 (2) A
120VAC, 15 (2) A
DC 30W
EMC:
acc. to EN 55014-1-2, EN 61000-3-2, EN 61000-3-3
Connection:
2-pole terminal, clamping torque 0.5Nm max.: rigid wire 2.5mm², stranded wire (with wire end ferrule) 1.5mm²
Mounting:
clip for 35mm DIN rail, EN50022 (or for exit filter EF 118 Series)
Casing:
plastic according to UL94 V-0, light grey
Dimensions/weight:
60 x 33 x 43mm approx. 40g
Fitting position:
variable
Operating/Storage temperature:
-20 to +80°C (-4 to +176°F) / -45 to +80°C (-49 to +176°F)
Protection type:
IP20


Setting range
Art. No. Contact breaker (NC)
0 to +60°C
01140.0-00
-10 to +50°C
01142.0-00
+20 to +80°C
01159.0-00
+32 to +140°F
01140.9-00
+14 to +122°F
01142.9-00
0 to +60°C
01146.9-00

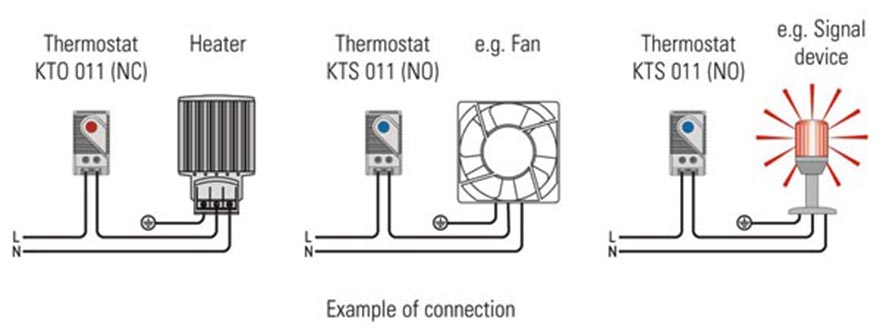

KTO 011 Small Thermostat Cabinet Thermostat Enclosure Thermostat Connection

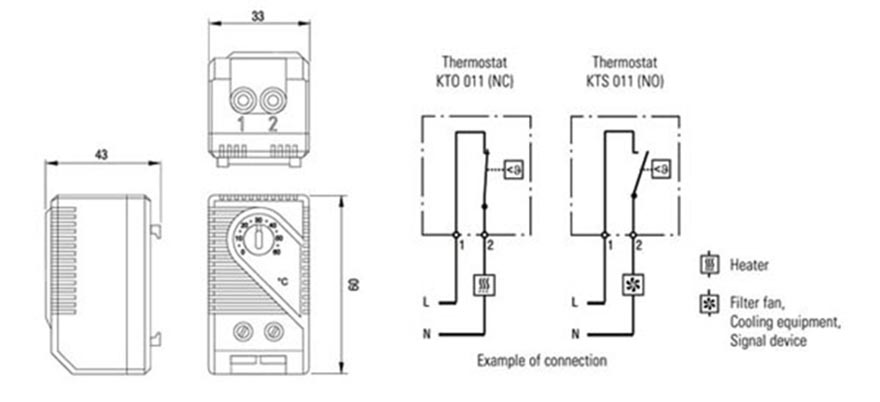

KTO 011 Small Thermostat Cabinet Thermostat Enclosure Thermostat  Drawing

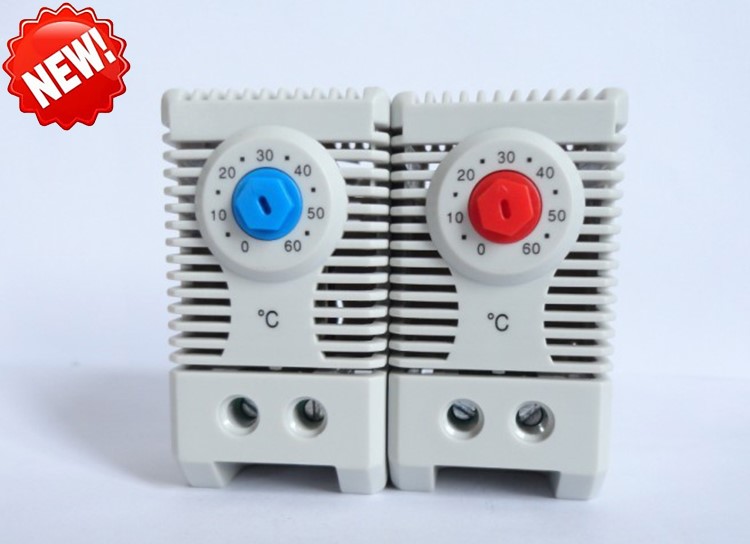

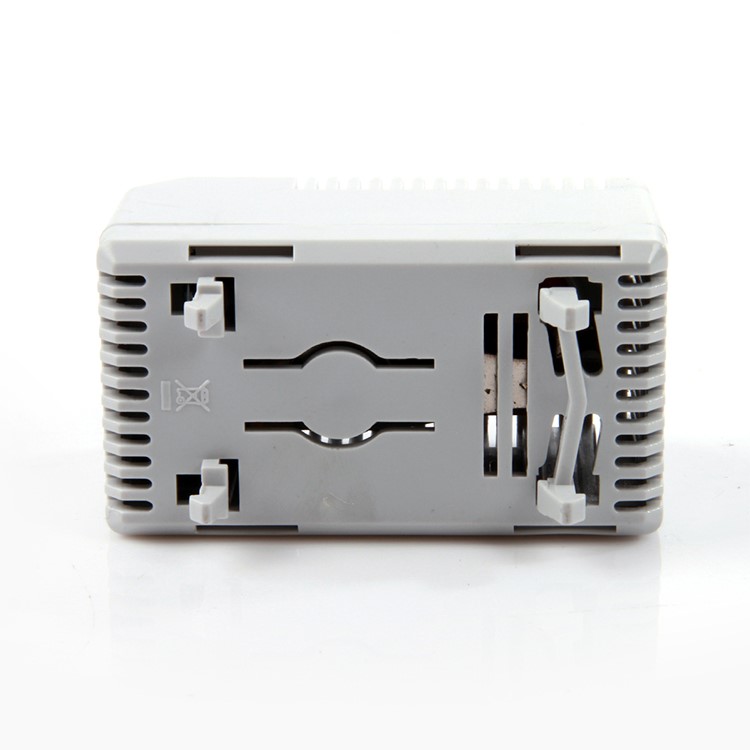

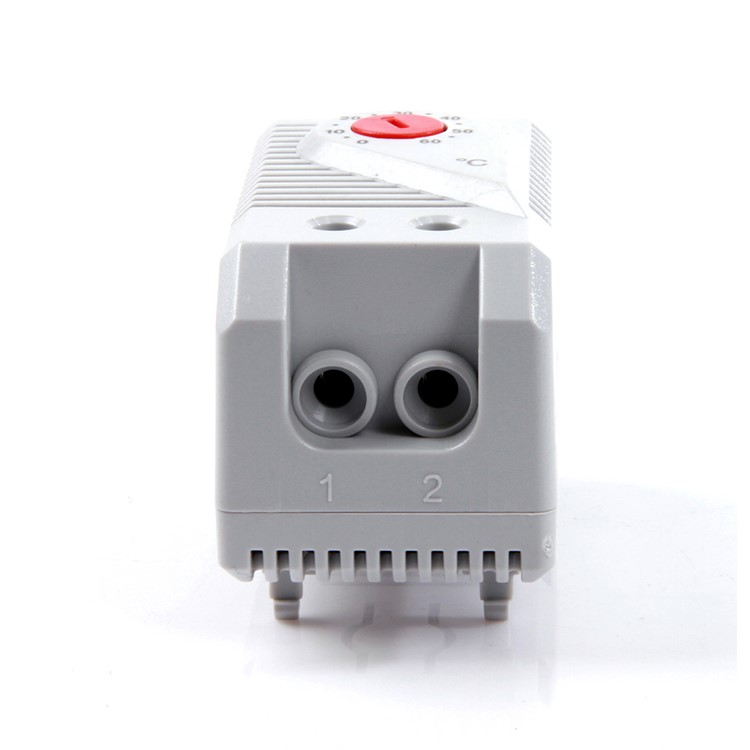

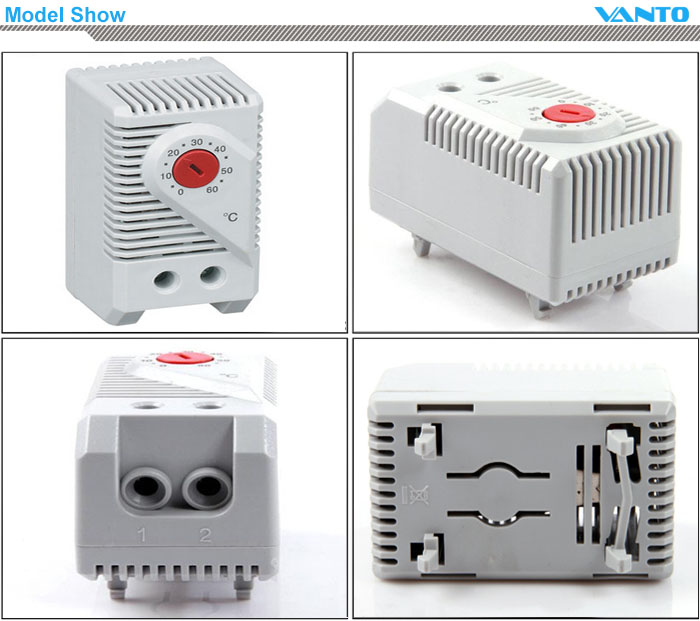

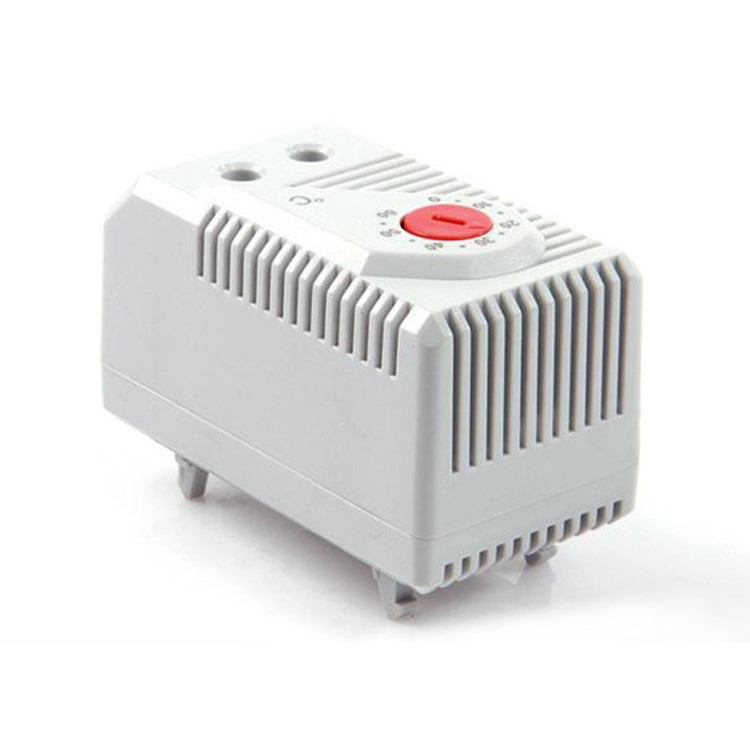

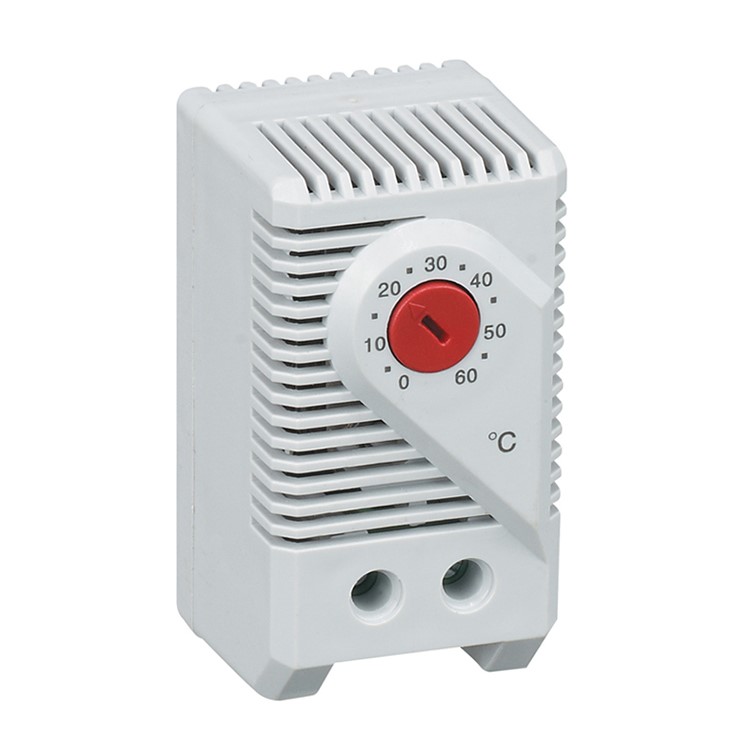

Stego Small Thermostat Cabinet Thermostat Enclosure Thermostat KTO 011

Thermostats KTO 011

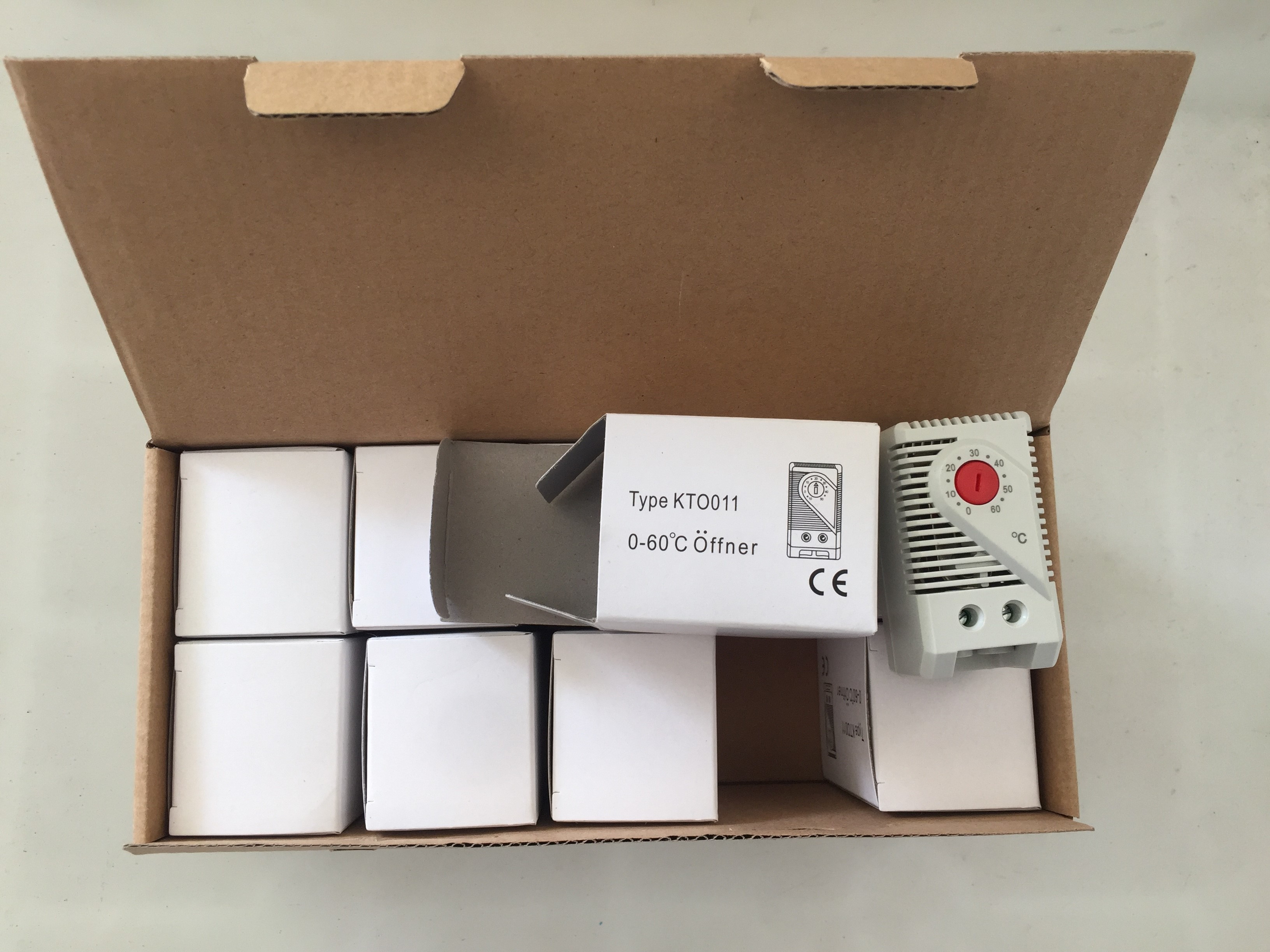

Stego KTS 011 KTO 011 Small Thermostat Cabinet Thermostat Enclosure Thermostat  Packing Show
