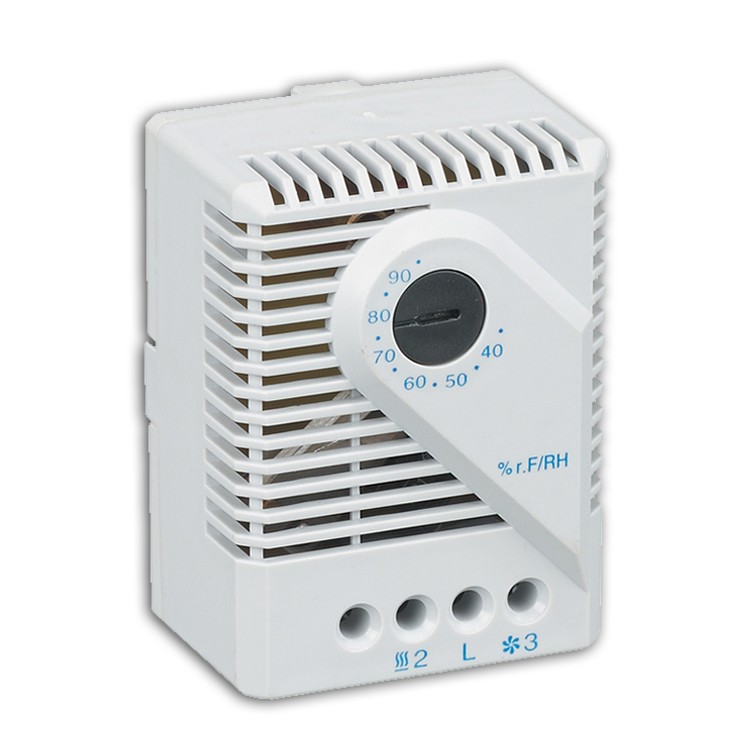

MFR 012 Mechanical Hygrostat

1. Adjustable relative humidity
2. Change-over contact
3. High switching capacity
4. Easily accessible terminals
5. Clip fixing

The electromechanical hygrostat MFR 012 is designed to control enclosure heaters so that the dew point is raised when a critical relative humidity of 65% is exceeded. In this way condensation and corrosion is effectively prevented.

OnLine Service:

E-mail Us PDF Download
vantoele 75606132
【Prev Products】 【Next Products】

Description

Stego MFR 012 Mechanical Hygrostat Cabinet Hygrostat Enclosure Thermostat Specifications

Switch difference*:
4% RH (±3% tolerance)
Permissible air velocity:
15m/sec
Contact type:
change-over contact
Contact resistance:
< 10mOhm
Service life:
> 100 000 cycles
Min. switching capacity:
20V AC/DC 100 mA
Max. switching capacity:
250 VAC, 5 (1) A
DC 20W
EMC:
acc. to EN 55014-1-2, EN 61000-3-2, EN 61000-3-3
Connection:
3-pole terminal for 2.5mm², clamping torque 0.5Nm max.: rigid wire 2.5mm², stranded wire (with wire end ferrule) 1.5mm²
Mounting:
clip for 35mm DIN rail, EN50022
Casing:
plastic according to UL94 V-0, light grey
Dimensions/ weight:
67 x 50 x 38mm approx. 60g
Fitting position:
variable
Operarting/Storage temperature:
0 to +60°C (+32 to +140°F) / -20 to +80°C (-4 to +176°F)
Protection type:
IP20

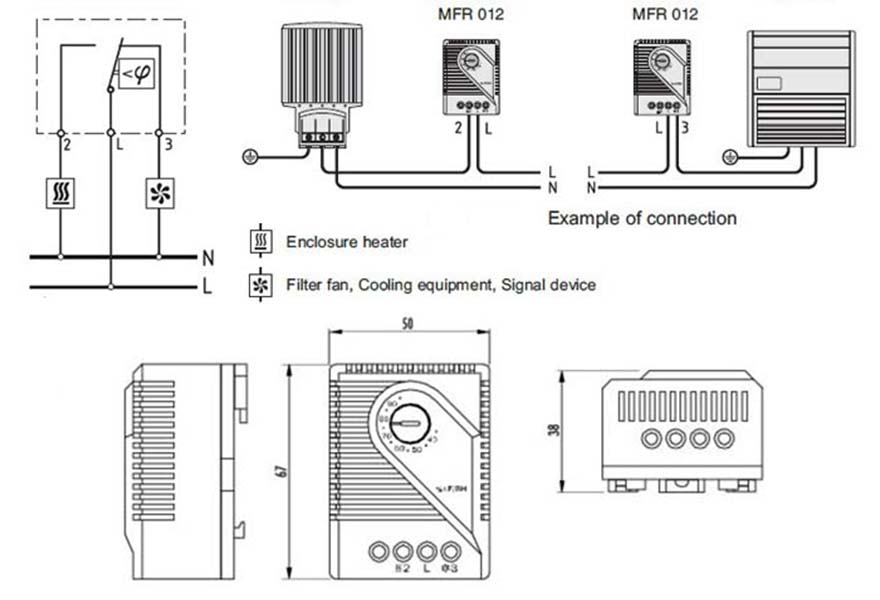

Stego MFR 012 Mechanical Hygrostat Cabinet Hygrostat Enclosure Thermostat Connector & Drawing

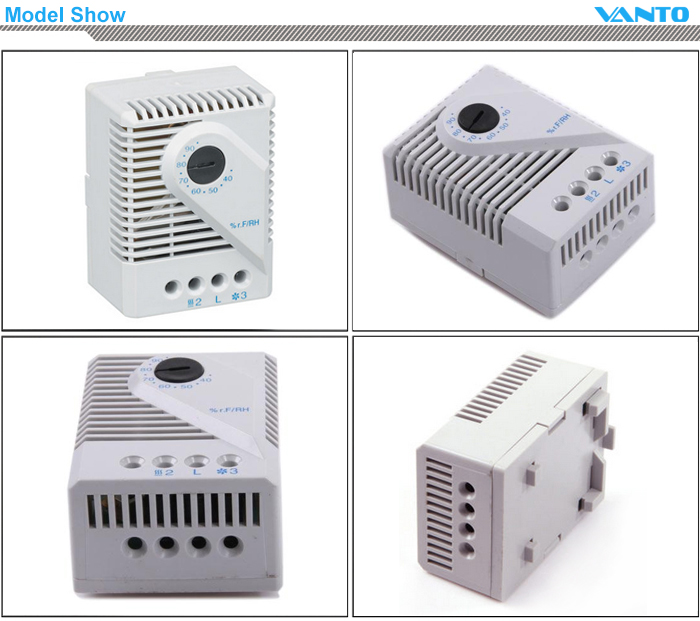

Stego MFR 012 Mechanical Hygrostat Cabinet Hygrostat Enclosure Thermostat Model Show

Stego MFR 012 Mechanical Hygrostat Packing Stego MFR 012 Mechanical Hygrostat Cabinet Hygrostat Enclosure Thermostat for Climate Control Packing Show

FAQ-Vanto Electric

Q:1.How do you control the products' quality?

A:Auto inspection machine and manual testing together before packing.


Q:2.What's your payment term?
A:We usually accept T/T(30% deposit,the balance before delivery.)
Samples cost can be paid by Western Union,MoneyGram

Q:3.Would you accept to use our logo?
A:If you have good quantity,we can make OEM for you.

Q:4.Can I get a sample for reference?
A:We provide free samples for testing,you only need to pay the courier cost.

Q:5.What is your MOQ?
A:The MOQ can be only 1 piece.

Q:6.What is your delivery time?
A:Usually it takes 7-25 working days depends on items and quantity.

Q:7.What is your warranty time of the products?
A:24 months
