ET 011 Electronic thermostat

1. High DC breaking capacity
2. Low hysteresis
3. Adjustable temperature
4. Change-over contact
5. Clip fixing

Electronic thermostat for regulating high performance 24VDC equipment. Heating or cooling appliances as well as signal devices can be switched via the potential free change-over contact. In comparison to mechanical thermostats, the ET 011 has a low hysteresis making the switching point and setting accuracy more precise.

OnLine Service:

E-mail Us PDF Download
vantoele 75606132
【Prev Products】 【Next Products】

Description

ET 011 Electronic Thermostat Cabinet Thermostat Enclosure Thermsotat Specifications

Switch temperature difference
approx. 3K
Sensor element
PTC
Contact type
change-over
Contact resistance
< 10mOhm
Service life
> 100 000 cycles
Max. switching capacity
28VDC, 16A
EMC
acc. to EN 55014-1-2, EN 61000-3-2, EN 61000-3-3
Connection
5-pole terminal, clamping torque 0.5Nm max.: rigid wire 2.5mm², stranded wire (with wire end ferrule) 1.5mm²
Mounting
clip for 35mm DIN rail, EN 50022
Casing
plastic according to UL94 V-0, light grey
Dimensions/ weight
67 x 50 x 46mm approx. 80g
Fitting position
vertical
Operating/Storage temperature
0 to +60°C (+32 to +140°F) / -45 to +80°C (-49 to +176°F)
Protection type
IP20

Part No.
Operating voltage
Setting range
01190.0-00
24VDC (20-28VDC)
0 to +60°C

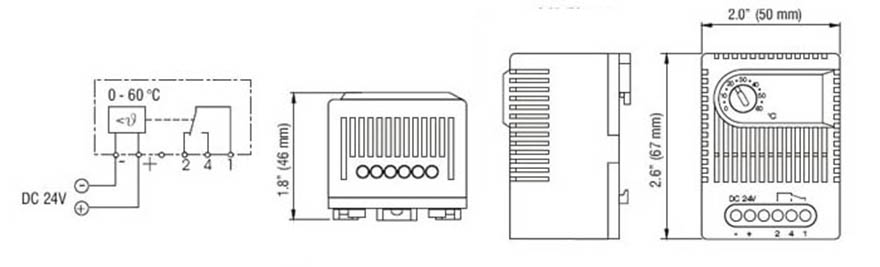

ET 011 Electronic Thermostat Cabinet Thermostat Enclosure Thermsotat Connection & Drawing 2

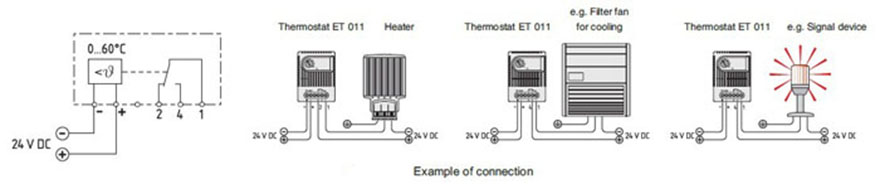

ET 011 Electronic Thermostat Cabinet Thermostat Enclosure Thermsotat Connection & Drawing 1

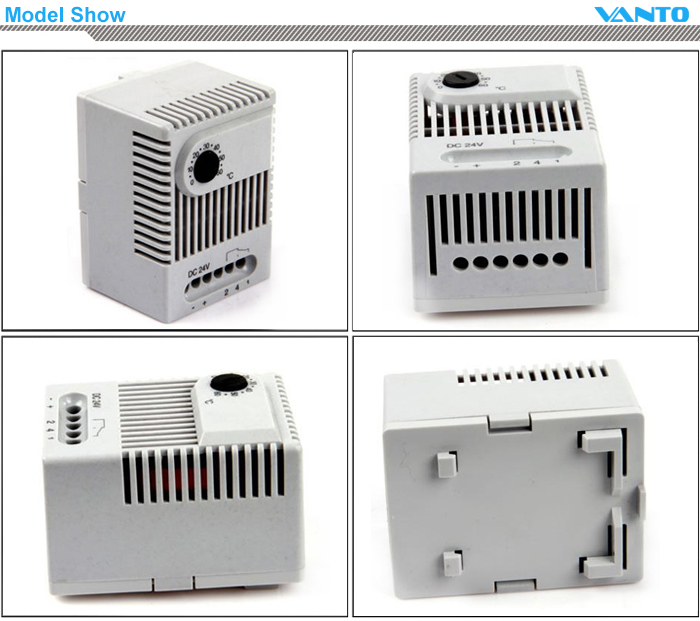

ET 011 Electronic Thermostat Cabinet Thermostat Enclosure Thermsotat Model Show

ET 011 Electronic Enclosure Thermostat Packing

Stego ET 011 Electronic Thermostat Cabinet Thermostat Enclosure Thermsotat Packing Show
