FTS 011 Tamper-proof Thermostat

1. Small size
2. Default temperature settings
3. Easy to install
4. High switching accuracy

Tamper-proof (Pre-set) Thermostat FTS 011: Contact maker/NO (blue casing) for regulating filter fans, heat exchangers, cooling devices or for switching signal devices when temperature limit has been exceeded. The contact closes when temperaure is rising.

OnLine Service:

E-mail Us PDF Download
vantoele 75606132
【Prev Products】 【Next Products】

Description

FTS 011 Tamper-proof Thermostat Cabinet Thermostat Enclosure Thermostat Specifications

Sensor element
thermostatic bimetal
Contact type
snap-action contact
Contact resistance
< 20mΩ
Service life
> 100 000 cycles
Max. switching capacity
10A resistive/ 2A inductive @ 120VAC
5A resistive/ 1.6A inductive @ 240VAC
DC 30W
Max. inrush current
AC 10A
EMC
acc. to EN 55014-1-2, EN 61000-3-2, EN 61000-3-3
Connection
2-pole terminal for AWG 14 max.(2.5mm2), torque 0.8Nm max
Housing
plastic, UL 94V-0, light grey
Mounting
clip for 35mm DIN rail, EN60 715
Mounting position
vertical
Operating temperature
-4 to +176°F(-20 to +80)
Storage temperature
-49 to +176°F(-45 to +80)
Dimensions/weight
1.85 x 1.3 x 1.3" (47x33x33mm) approx. 23g
Protection type
IP20


Part No.
Contact
Switch-off temperature
Switch-on temperature
01160.0-00
NC - open on rise
59°F / 15°C (± 9°F / 5K tolerance)
41°F / 5°C (± 9°F / 5K tolerance)
01160.0-01
NC - open on rise
77°F / 25°C (± 9°F / 5K tolerance)
59°F / 15°C (± 9°F / 5K tolerance)
01161.0-00
NO - close on rise
122°F / 50°C (± 11°F / 6K tolerance)
104°F / 40°C (± 12.6°F / 7K tolerance)
01161.0-01
NO - close on rise
140°F / 60°C (± 11°F / 6K tolerance)
122°F / 50°C (± 12.6°F / 7K tolerance)
01161.0-02
NO - close on rise
95°F / 35°C (± 11°F / 6K tolerance)
77°F / 25°C (± 12.6°F / 7K tolera

FTS 011 FTO 011 Tamper-proof Thermostat Cabinet Thermostat Enclosure Thermostat Connection & Drawing 1

FTS 011 FTO 011 Tamper-proof Thermostat Cabinet Thermostat Enclosure Thermostat connection drawing 2

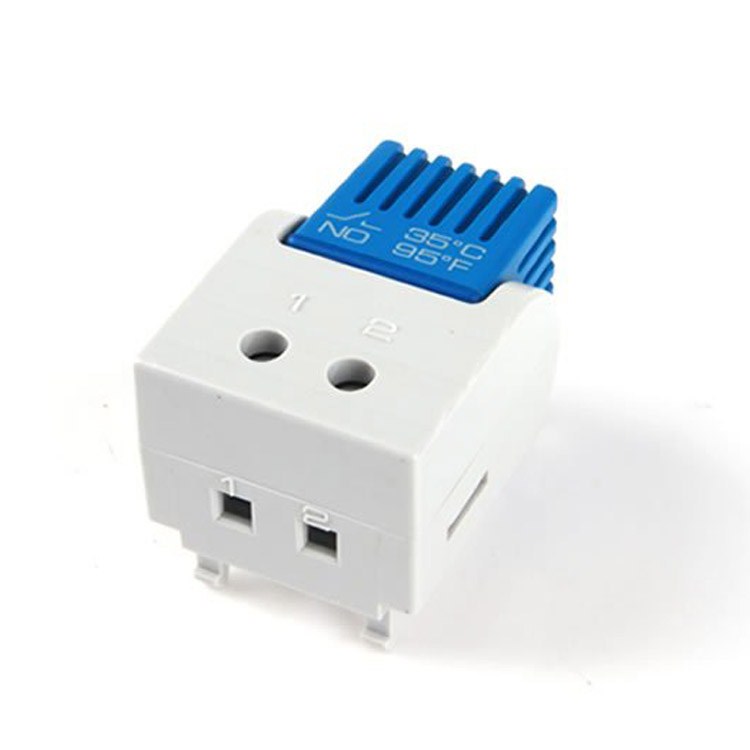

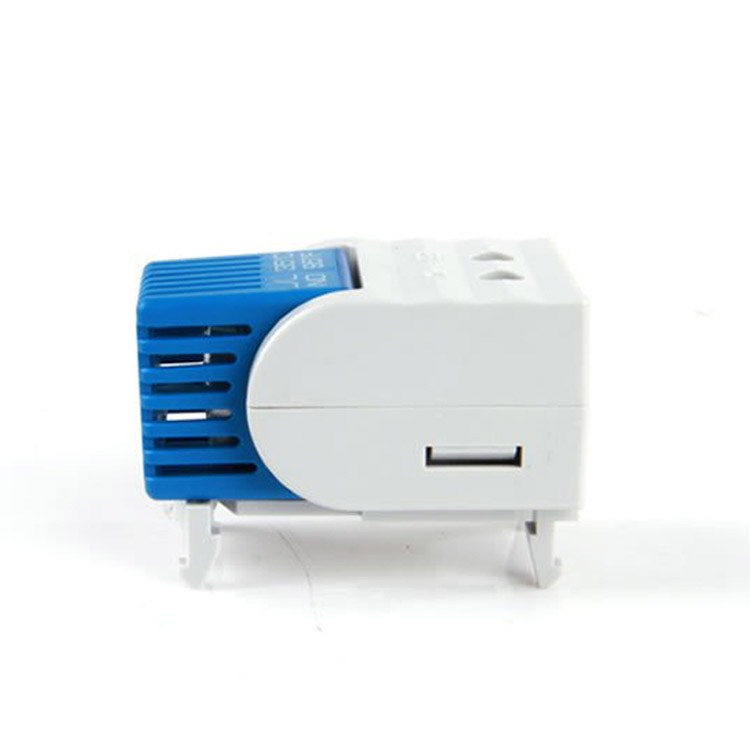

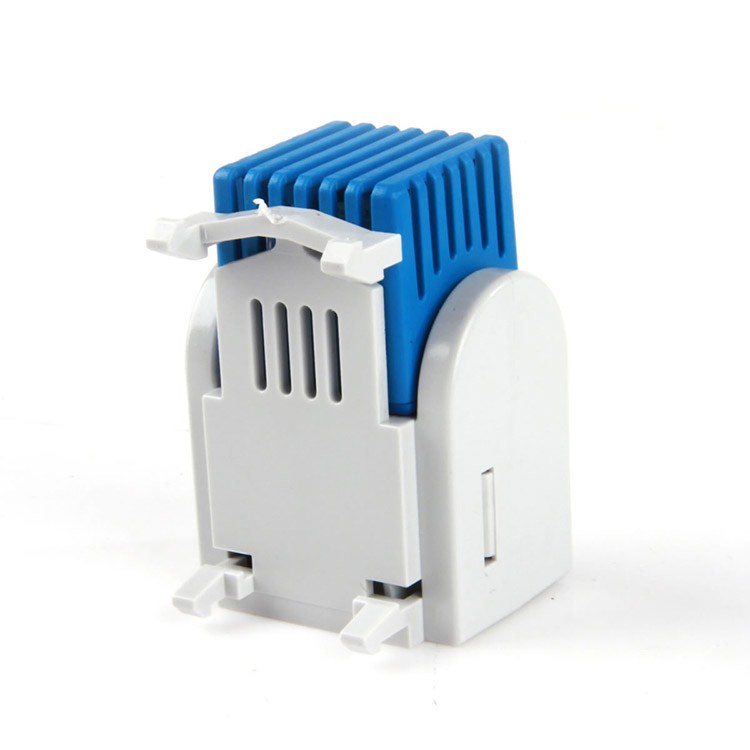

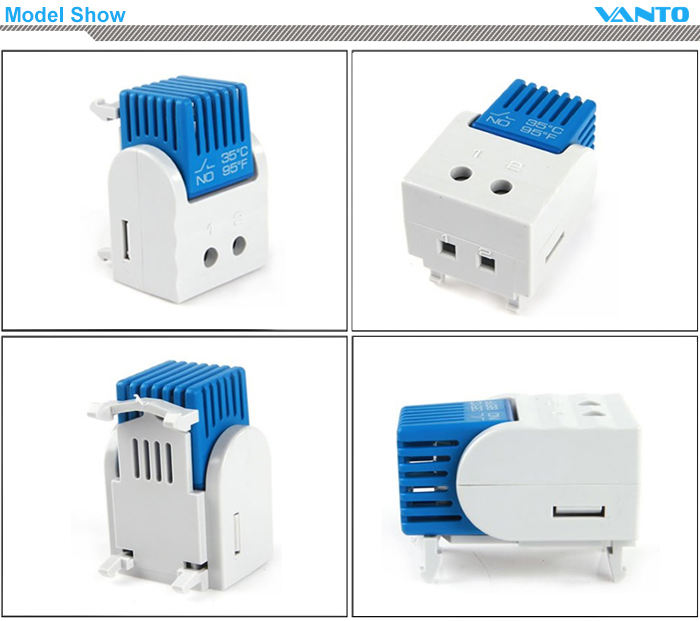

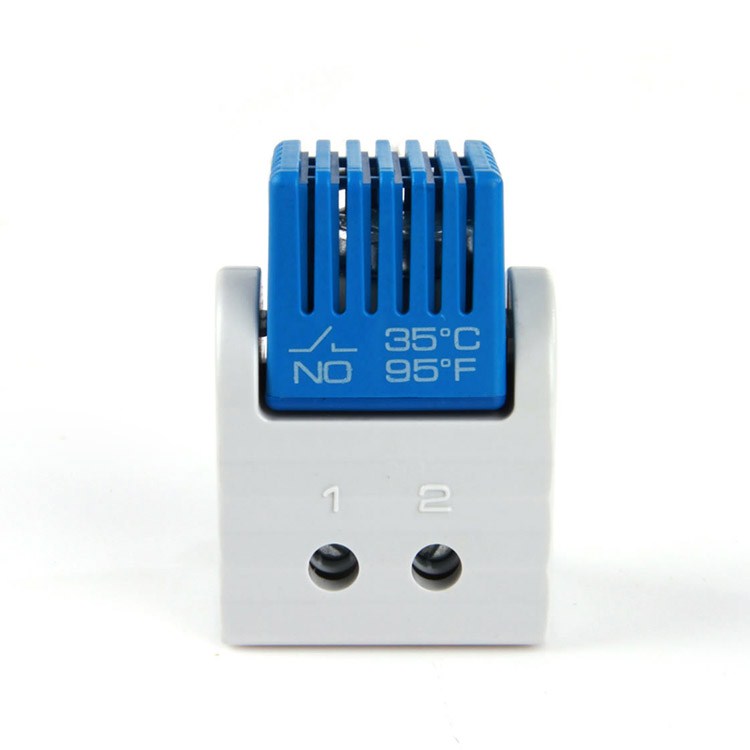

FTS 011 FTO 011 Tamper-proof (Pre-set) Thermostat Cabinet Thermostat Enclosure Thermostat Model Show

FTS 011 FTO 011 Thermostat Packing
