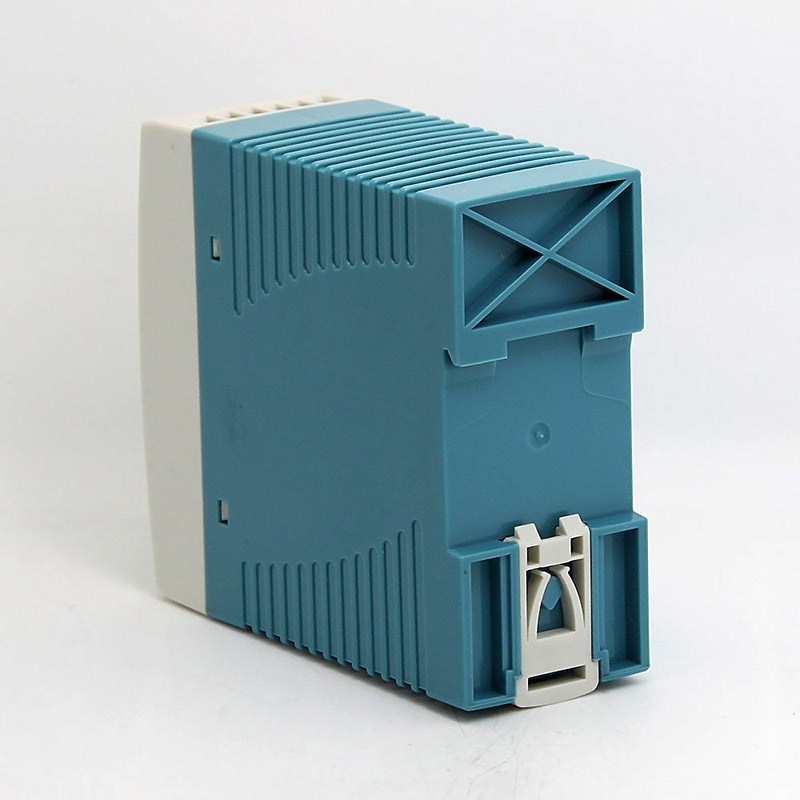

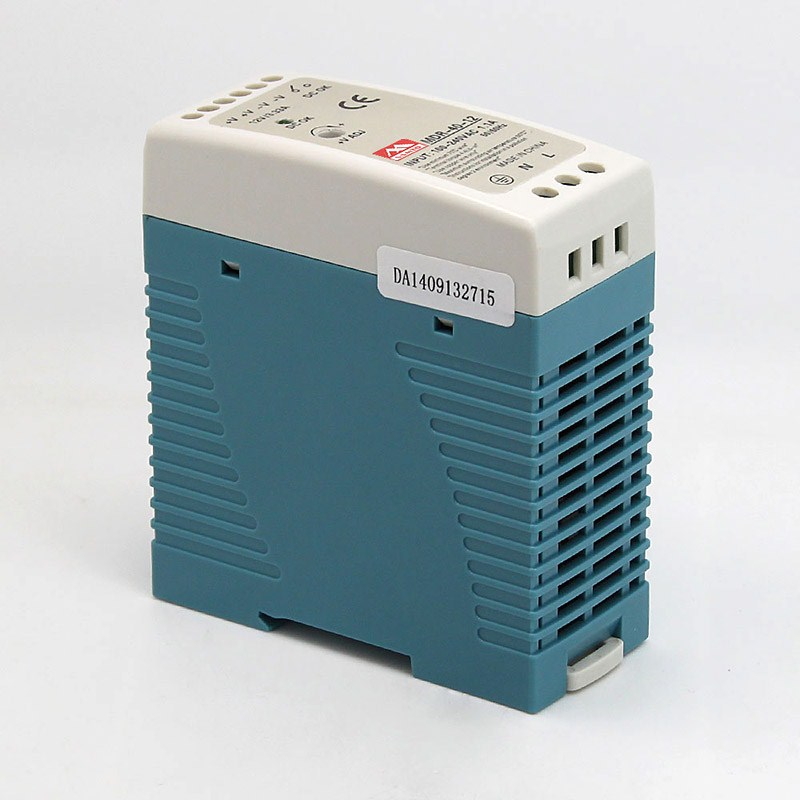

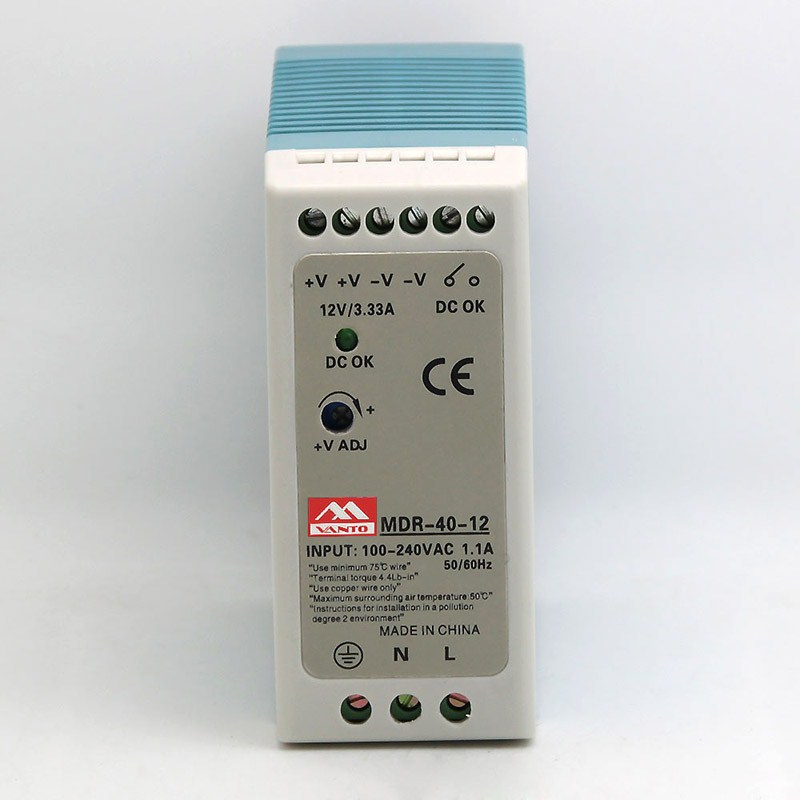

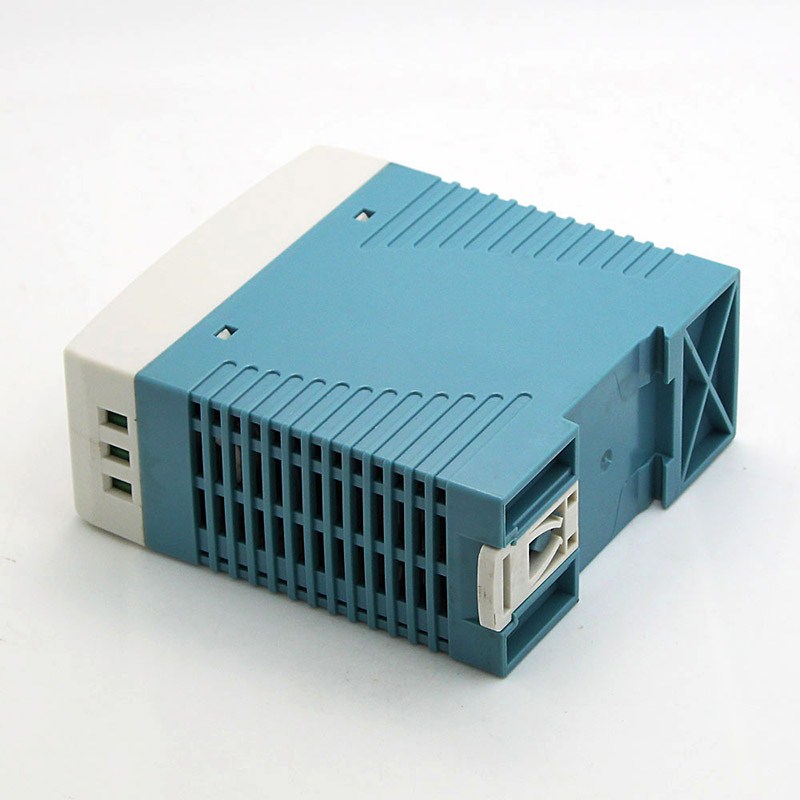

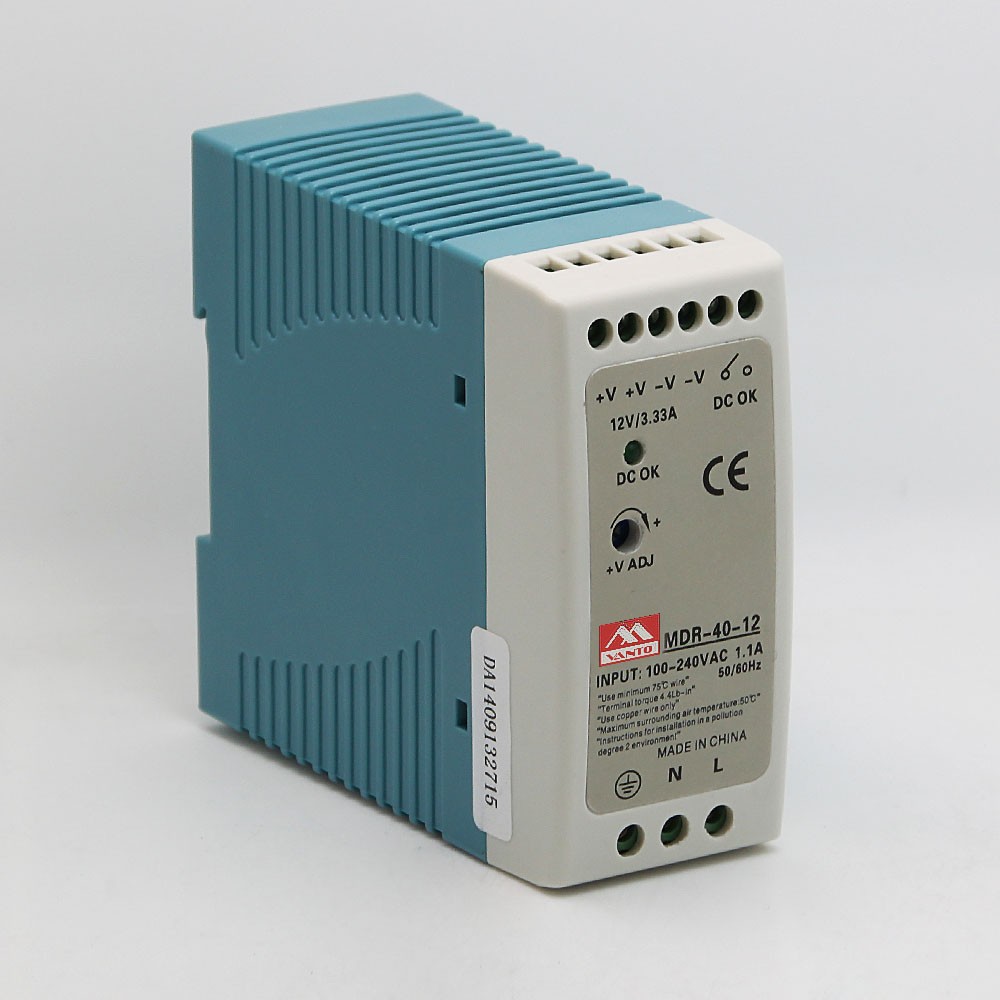

MDR-40W Din Rail Power Supply

1. Universal AC input
2. Small volume, low weight, high efficiency
3. Protections: short circuit/over load/over voltage
4. Cooling by free air convection
5. Can be installed on DIN rail
6. LED indicator for power on
7. 100% full load burn-in test
8. 2 Year warranty

OnLine Service:

E-mail Us PDF Download
vantoele 75606132
【Prev Products】 【Next Products】

Description

MDR-40W Din Rail Power Supply Specifications

MODEL

MDR-40-5

MDR-40-12

M DR-40-24

MDR-40-48






OUTPUT




DC VOLTAGE

5V

12V

24V

48V

RATED CURRENT

6A

3.33A

1.7A

0.83A

CURRENT RANGE

0~6A

0-3.33A

0 ~ 1.7A

0 ~ 0.83A

RATED POWER

30W

40W

40.8W

39.8W

RIPPLE & NOISE (max.) Note.2

80mVp-p

120mVp-p

150mVp-p

200mVp-p

VOLTAGE ADJ. RANGE

5-6V

12 ~ 15V

24 - 30V

48 - 56V

VOLTAGE TOLERANCE Note.3

±2.0%

±1.0%

±1.0%

±1.0%

LINE REGULATION

±1.0%

±1.0%

±1.0%

±1.0%

LOAD REGULATION

±1.0%

±1.0%

±1.0%

±1.0%

SETUP, RISE TIME Note.5

500ms, 30ms/230VAC 500ms, 30ms/115VAC at full load

HOLD UP TIME (Typ.)

50ms/230VAC 20ms/115VAC at full load



INPUT

VOLTAGE RANGE

85 ~ 264VAC 120-370VDC

FREQUENCY RANGE

47~63Hz

EFFICIENCY (Typ.)

78%

86%

88%

88%

AC CURRENT (Typ.)

1.1 A/115 VAC 0.7A/230VAC

INRUSH CURRENT (Typ.)

COLD START 30A/115VAC,60A/230VAC

LEAKAGE CURRENT

<1mA/240VAC


PROTECTION

OVERLOAD

105 ~ 150% rated output power

Protection type: Constant current limiting, recovers automatically after fault condition is removed

OVERVOLTAGE

6.25 - 7.25V

15.6 -18V

31.2-36V

57.6-64.8V

Protection type : Shut down o/p voltage, re-power on to recover

FUNCTION

DC OK SIGNAL

Relay contact rating{max.): 30V/1A resistive



ENVIRONMENT

WORKING TEMP.

-20 ~ +70“C (Refer to "Derating Curve")

WORKING HUMIDITY

20 - 90% RH non-condensing

STORAGE TEMP, HUMIDITY

-40 ~ +85°C, 10 ~ 95% RH

TEMP. COEFFICIENT

±0.03%/°C (0 ~50°C)

VIBRATION

Component: 10 - 500Hz, 2G 10min./1 cycle, period for60min. each along X, Y, Z axes; Mounting: Compliance to IEC60068-2-6


SAFETY &
EMC
(Note 4)

SAFETY STANDARDS

UL508, UL60950-1, TUV EN60950-1 approved

WITHSTAND VOLTAGE

l/P-0/P:3KVAC l/P-FG:2KVAC 0/P-FG:0.5KVAC

ISOLATION RESISTANCE

l/P-O/P, l/P-FG, 0/P-FG:>100M Ohms/500VDC/25°C/70% RH

EMC EMISSION

Compliance to EN55011, EN55022 (CISPR22), EN61204-3 Class B, EN61000-3-2,-3

EMC IMMUNITY

Compliance to EN61000-4-2, 3,4, 5, 6,8,11, EN55024, EN61000-6-2, EN61204-3, heavy industry level, criteria A


OTHERS

MTBF

301.7K hrs min. MIL-HDBK-217F (25°C)

DIMENSION

40*90*100mm (W*H*D)

PACKING

0.3Kg; 42pcs/13.6Kg/0.82CUFT




NOTE


1.All parameters NOT specially mentioned are measured at 230VAC input, rated load and 25°C of ambient temperature.
2.Ripple & noise are measured at 20MHz of bandwidth by using a 12" twisted pair-wire terminated with a 0.1 uf & 47uf parallel capacitor.
3.Tolerance : includes set up tolerance, line regulation and load regulation.
4.The power supply is considered a component which will be installed into a final equipment. The final equipment must be re-confirmed that it still meets EMC directives. For guidance on how to perform these EMC tests, please refer to “EMI testing of component power supplies."

5.Length of set up time is measured at first cold start. Turning ON/OFF the power supply may lead to increase of the set up time.

MDR-40W Din Rail Power Supply Packing

MDR 40W 60W Din Rail Power Supply Packing Show

FAQ-Vanto Electric

Q:1.How do you control the products' quality?

A:Auto inspection machine and manual testing together before packing.


Q:2.What's your payment term?
A:We usually accept T/T(30% deposit,the balance before delivery.)
Samples cost can be paid by Western Union,MoneyGram

Q:3.Would you accept to use our logo?
A:If you have good quantity,we can make OEM for you.

Q:4.Can I get a sample for reference?
A:We provide free samples for testing,you only need to pay the courier cost.

Q:5.What is your MOQ?
A:The MOQ can be only 1 piece.

Q:6.What is your delivery time?
A:Usually it takes 7-25 working days depends on items and quantity.

Q:7.What is your warranty time of the products?
A:24 months
