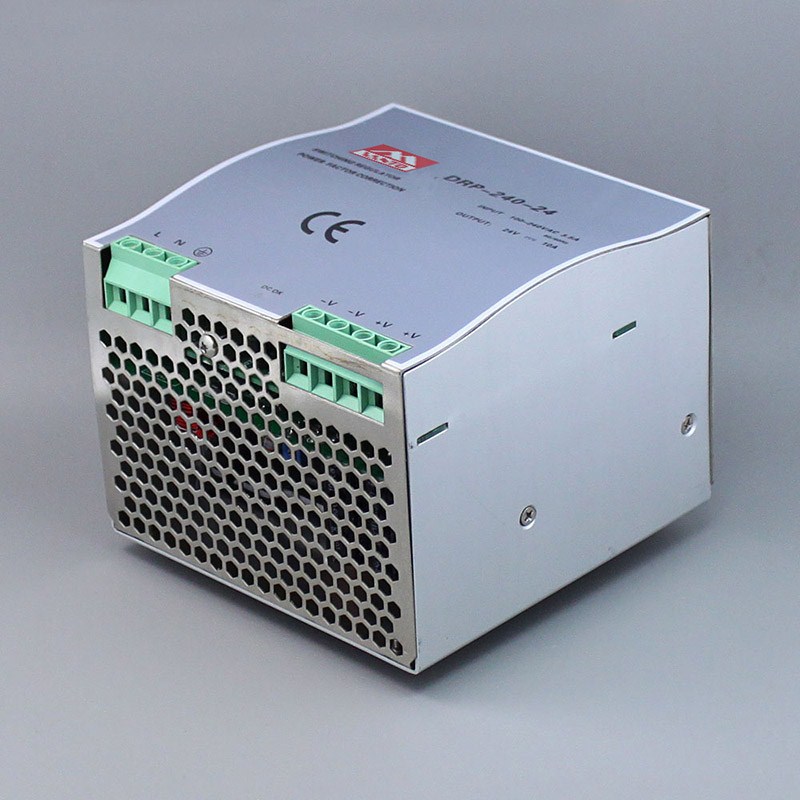

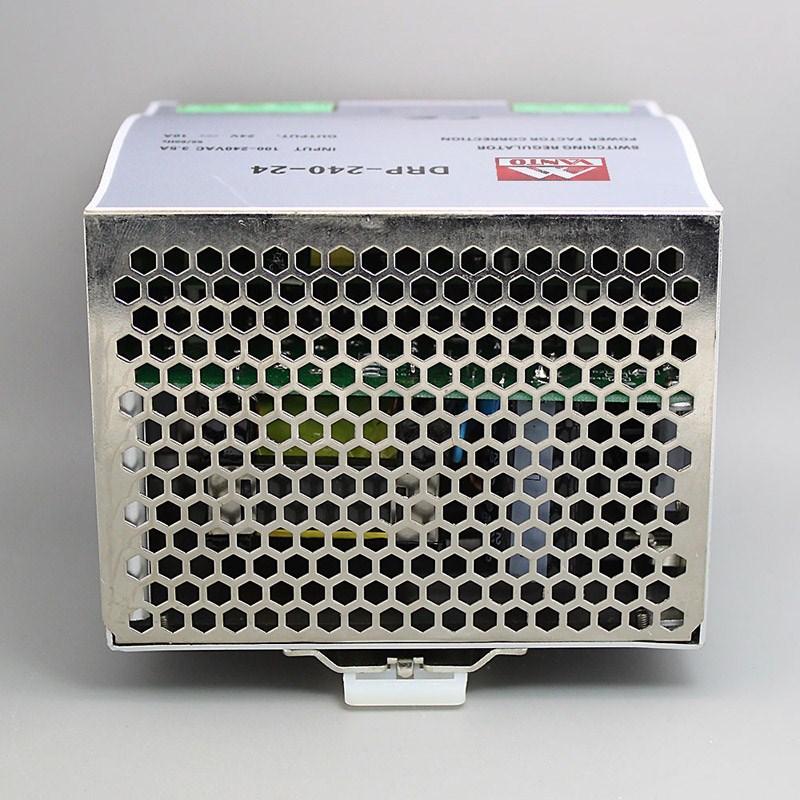

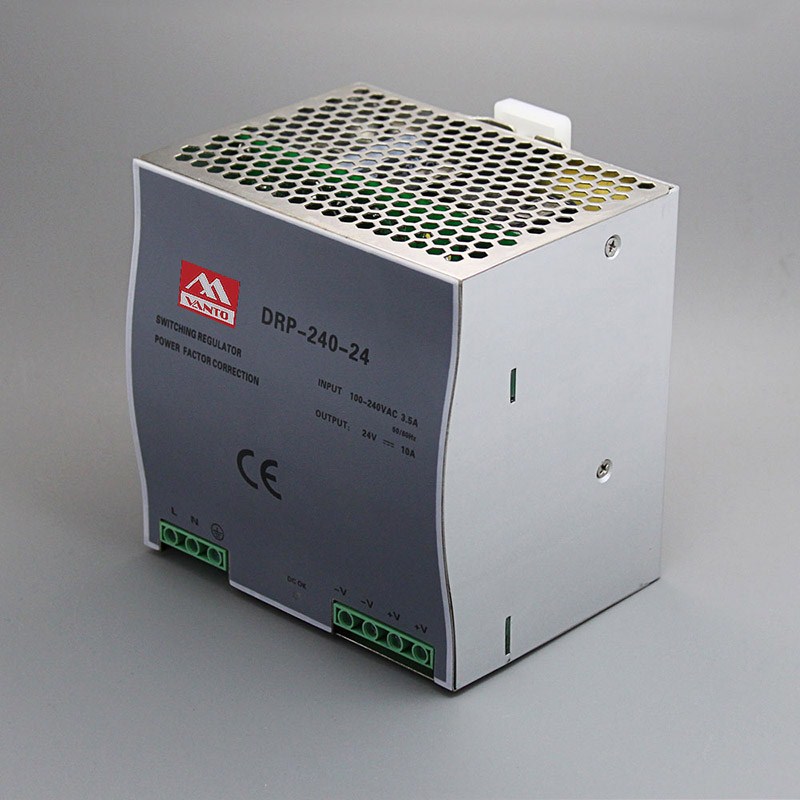

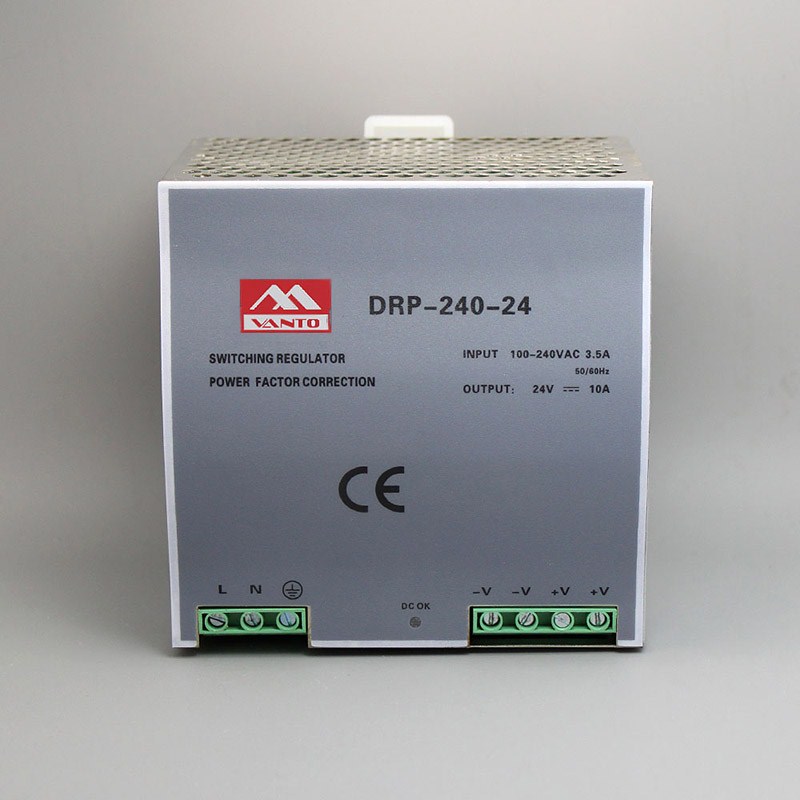

DR-240W Din Rail Power Supply

1. Universal AC input
2. Small volume, low weight, high efficiency
3. Protections: short circuit/over load/over voltage
4. Cooling by free air convection

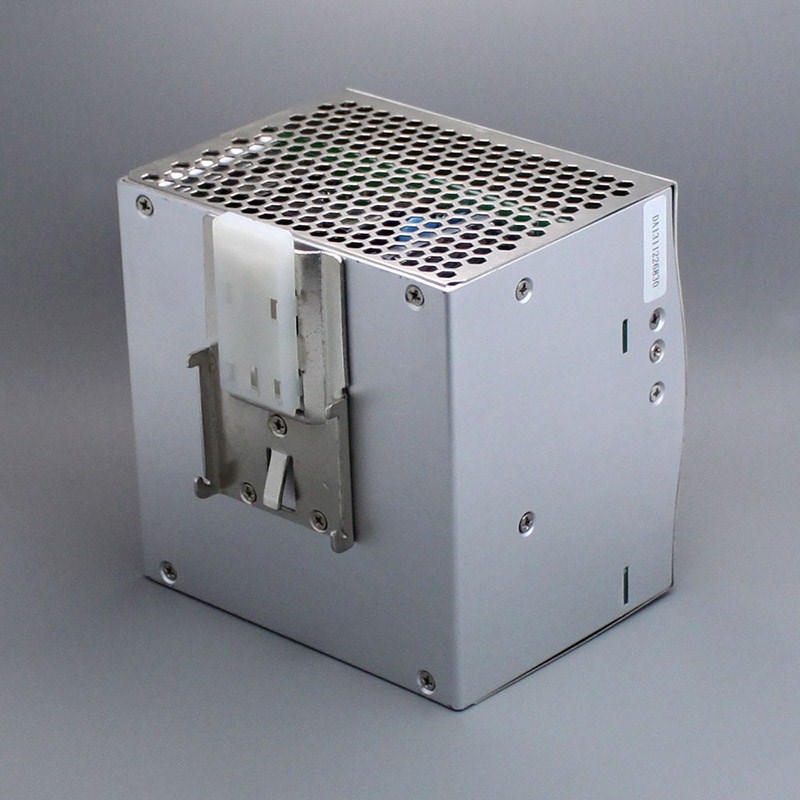

5. Can be installed on DIN rail
6. LED indicator for power on
7. 100% full load burn-in test
8. 2 Year warranty

OnLine Service:

E-mail Us PDF Download
vantoele 75606132
【Prev Products】 【Next Products】

Description

DR-240W Din Rail Power Supply Specificates

Model

DRP-240-24

DRP-240-48

DC output voltage

24V

48V

Output voltage range(Note:2)

±1%

±1%

Rated output current

10A

5A

Output current range

0-10A

0-5A

Wave and noise(Note:3)

80mVp-p

150mVp-p

Inlet stability(Note:4)

±0.5%

±0.5%

Load stability(Note:5)

±1%

±1%

DC output power

240W

240W

Efficiency

84%

85%

Adjustable range for DC voltage

21.6~26.4V

43.2~52.8V%

AC input voltage range

88~264VAC 47~63Hz;120~370VDC

Input current

3.5A/115V 1.8A/230V

AC inrush current

Cold-start current 30A/115V 60A/230V

Leakage current

<3.5mA/240VAC

Overload protection

105%~150% Type: pulsing hiccup shutdown Reset: tuto recovery

Over-voltage protection

30~34V

54~60V

High-temperature protection

100°c±5°c(TSW1)

Temperature coefficient

±0.03%/°c(0~50°c)

Setup, rise , hold up time

800ms, 40ms,20ms/230VAC 800ms, 40ms, 20ms/115VAC

Vibration

10~500Hz, 2G 10min,/1cycle, Period for 60min, Each axes

Withstand voltage

Input and output internal: Input and encolsur: 1.5KvAC, Output and enclosure: 0.5KvAC

Isolation resistance

Input and output internal: Input and enclosure, Output and enclosure:500VDC/100MΩ

Working temperature and humidity

-10°c~+60°c(Refer to output derating curve), 20%~90%RH

Overall dimension

125.5×125.2×100m

Weight

1.2Kgs 20PCS/14Kg/1.1CUFT

Safety standards

Meet UL 1012 requiement (Not apply for the mark)

EMC standards

Meet FCC PART 15 J Conduction class B

240W Din Rail Power Supply Packing
DR 240W Din Rail Power Supply Packing Show
DR-240W Din Rail Power Supply FAQ

Q:1.How do you control the products' quality?

A:Auto inspection machine and manual testing together before packing.


Q:2.What's your payment term?
A:We usually accept T/T(30% deposit,the balance before delivery.)
Samples cost can be paid by Western Union,MoneyGram

Q:3.Would you accept to use our logo?
A:If you have good quantity,we can make OEM for you.

Q:4.Can I get a sample for reference?
A:We provide free samples for testing,you only need to pay the courier cost.

Q:5.What is your MOQ?
A:The MOQ can be only 1 piece.

Q:6.What is your delivery time?
A:Usually it takes 7-25 working days depends on items and quantity.

Q:7.What is your warranty time of the products?
A:24 months
