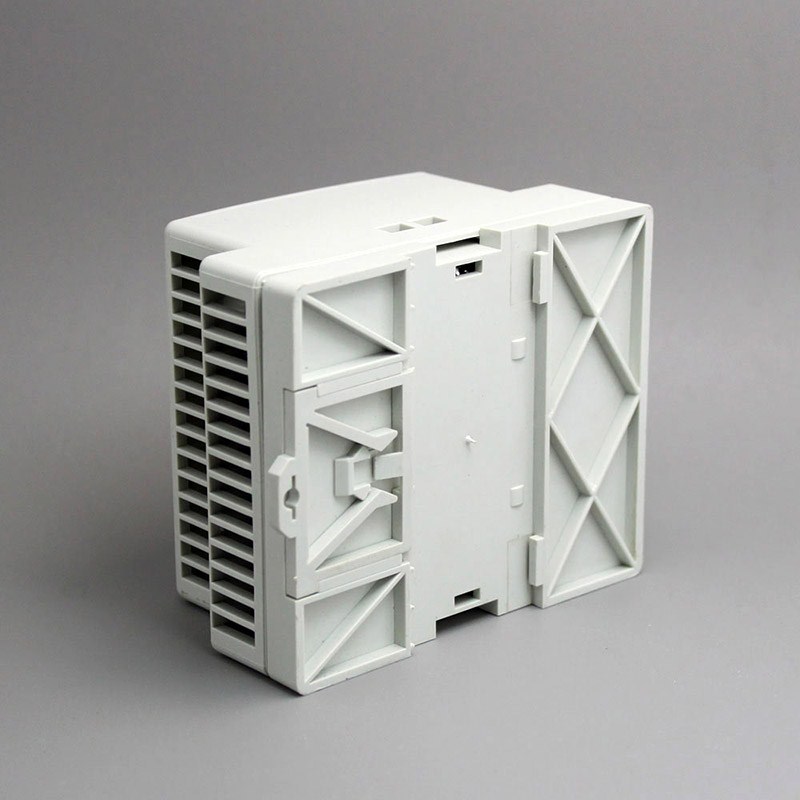

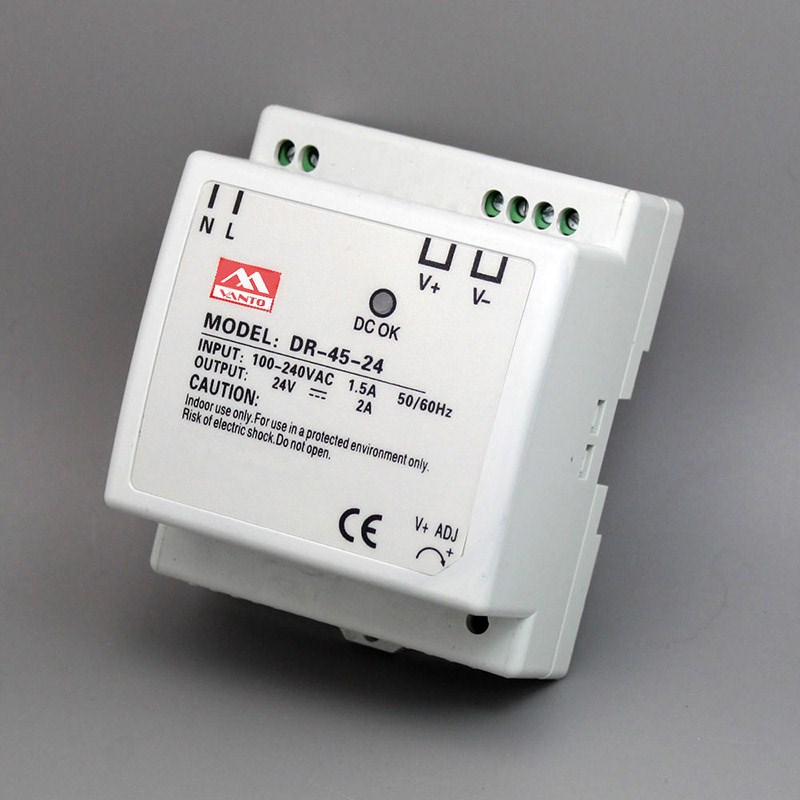

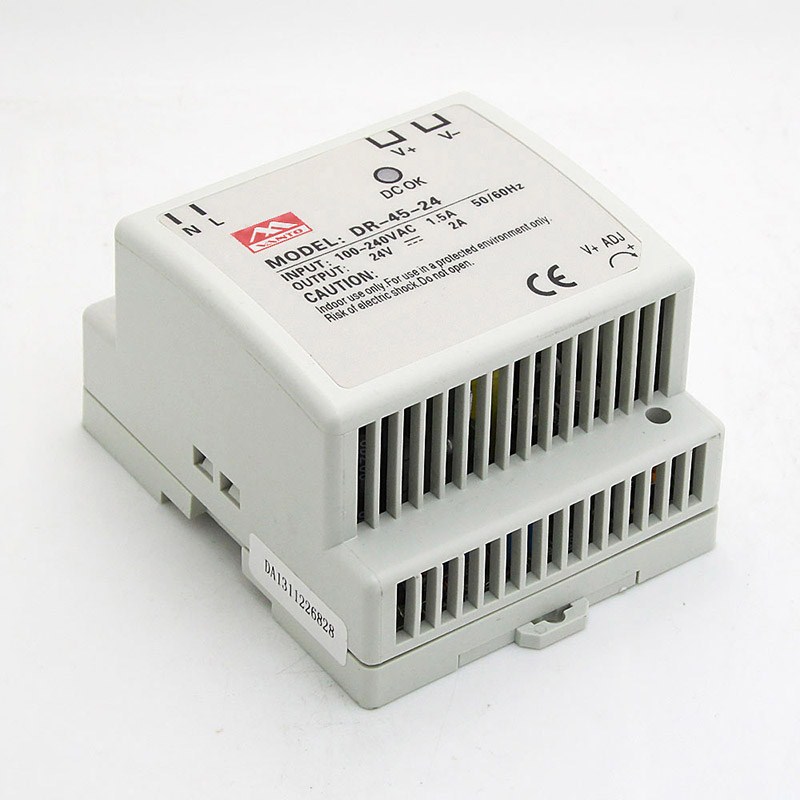

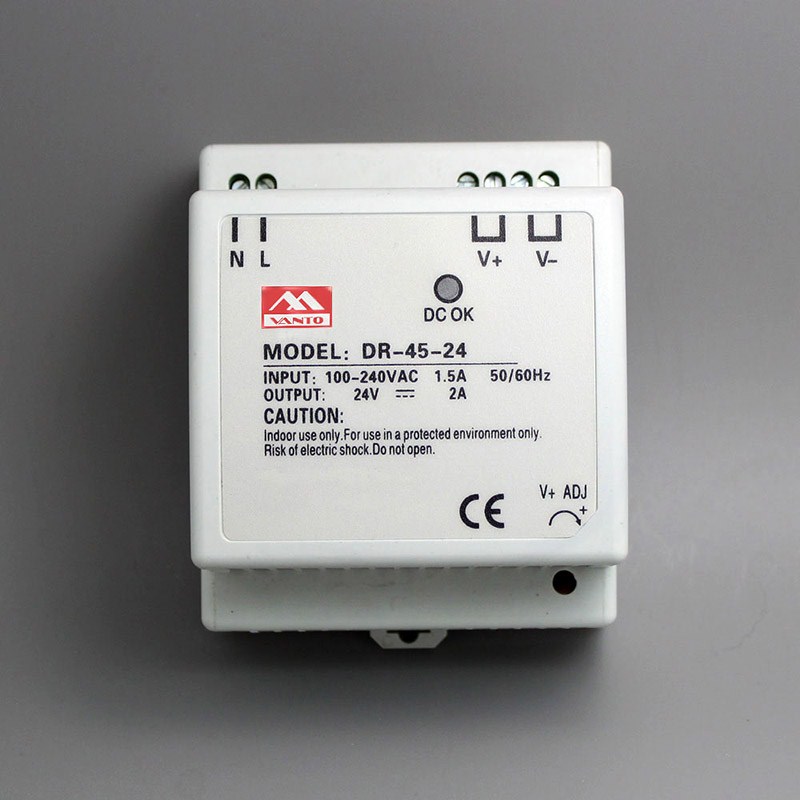

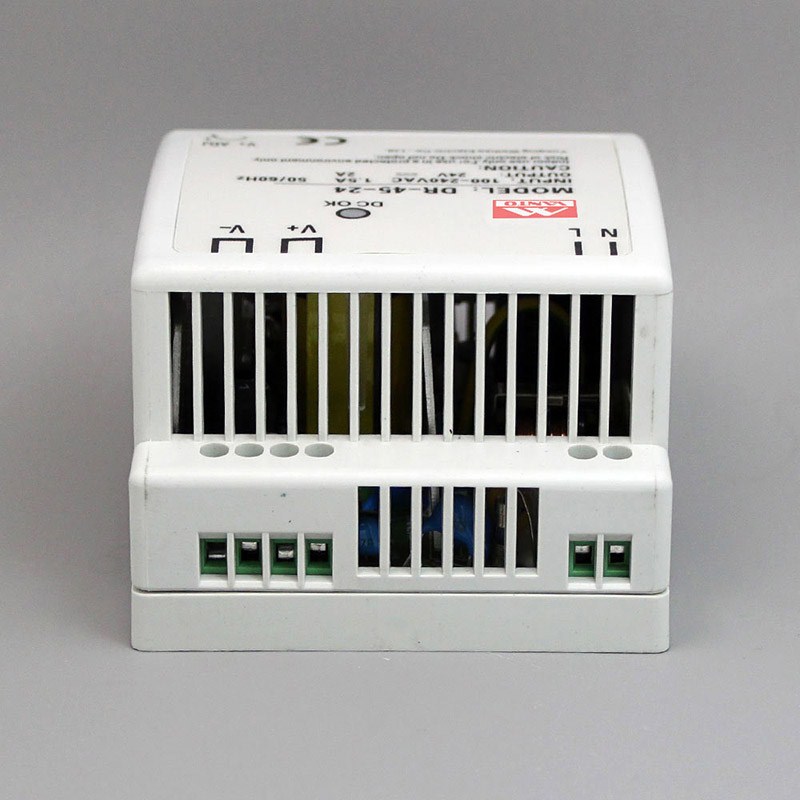

DR-45W Din Rail Power Supply

1. Universal AC input
2. Small volume, low weight, high efficiency
3. Protections: short circuit/over load/over voltage
4. Cooling by free air convection
5. Can be installed on DIN rail
6. LED indicator for power on
7. 100% full load burn-in test
8. 2 Year warranty

OnLine Service:

E-mail Us PDF Download
vantoele 75606132
【Prev Products】 【Next Products】

Description

DR-45W Din Rail Power Supply Specificates

MODEL

DR-45-5

DR-45-12

DR-45-15

DR-45-24

OUTPUT

DC VOLTAGE

5V

12V

15V

24V

RATED CURRENT

5A

3.5A

2.8A

2.0A

CURRENT RANGE

0 ~ 5A

0 ~ 3.5A

0 ~2.8A

0 ~ 2.0A

RATED POWER

25W

42W

42W

48W

RIPPLE & NOISE (max.) Note.2

100mVp-p

200mVp-p

240mVp-p

480mVp-p

VOLTAGE ADJ.RANGE

4.75 ~ 5.5V

10.8 ~ 13.2V

13.5 ~ 16.5V

21.6 ~ 26.4V

VOLTAGE TOLERANCE Note.3

±2.0%

±1.0%

±1.0%

±1.0%

LINE REGULATION

±1.0%

±1.0%

±1.0%

±1.0%

LOAD REGULATION

±1.0%

±1.0%

±1.0%

±1.0%

SETUP, RISE TIME

80ms, 60ms/230VAC at full load

HOLD TIME(Typ.)

100ms/230VAC at full load

INPUT

VOLTAGE RANGE

85 ~ 264VAC 120 ~ 370VDC

FREQUENCY RANGE

47 ~ 63Hz

EFFICIENCY (Typ.)

72%

77%

77%

80%

AC CURRENT

1.5A/115VAC 0.75A/230VAC

INRUSH CURRENT(max.)

COLD START 28A/115VAC 56A/230VAC

PROTECTION

OVERLOAD

105 ~ 150% rated output power

Protection type : Constant current limiting,recovers automatically after fault condition is removed

OVER VOLTAGE

5.75 ~ 6.75V

13.8 ~ 16.2V

17.25 ~ 20.25V

27.6 ~ 32.4V

Protection type: Shut down o/p voltage, re-power on to recover

ENVIRONMENT

WORKING TEMP.

-20 ~ +60ºC

WORKING HUMIDITY

20 ~ 90% RH non-condensing

STORAGE TEMP., HUMIDITY

-20 ~ +85ºC , 10 ~ 95% RH

TEMP. COEFFICIENT

±0.03%/ºC (0 ~ 50ºC)

VIBRATION

10 ~ 500Hz, 2G 10min./1cycle, 60min. each along X, Y, Z axes

SAFETY & EMC (Note 4)

SAFETY STANDARDS

Design refer to UL60950-1, TUV EN60950-1, EN50178

WITHSTAND VOLTAGE

I/P-O/P: 3KVAC I/P-FG: 1.5KVAC O/P-FG: 0.5KVAC

ISOLATION RESISTANCE

I/P-O/P, I/P-FG, O/P-FG: 100M Ohms/500VDC

EMI CONDUCTION & RADIATION

Compliance to EN55022 (CISPR22) Class B

HARMONIC CURRENT

Compliance to EN61000-3-2,-3

EMS IMMUNITY

Compliance to EN61000-4-2, 3, 4, 5; ENV50204, EN55024, Light industry level, criteria A

OTHERS

MTBF

216.2K hrs min. MIL-HDBK-217F (25ºC)

DIMENSION

93*78*67mm (L*W*H)

PACKING

0.31Kg; 48pcs/16.1Kg/1.3CUFT

DR-45W Din Rail Power Supply Packing
DR 30W 45W 60W Din Rail Power Supply Packing Show
DR-30W Din Rail Power Supply FAQ


Q:1.How do you control the products' quality?

A:Auto inspection machine and manual testing together before packing.


Q:2.What's your payment term?
A:We usually accept T/T(30% deposit,the balance before delivery.)
Samples cost can be paid by Western Union,MoneyGram

Q:3.Would you accept to use our logo?
A:If you have good quantity,we can make OEM for you.

Q:4.Can I get a sample for reference?
A:We provide free samples for testing,you only need to pay the courier cost.

Q:5.What is your MOQ?
A:The MOQ can be only 1 piece.

Q:6.What is your delivery time?
A:Usually it takes 7-25 working days depends on items and quantity.

Q:7.What is your warranty time of the products?
A:24 months
