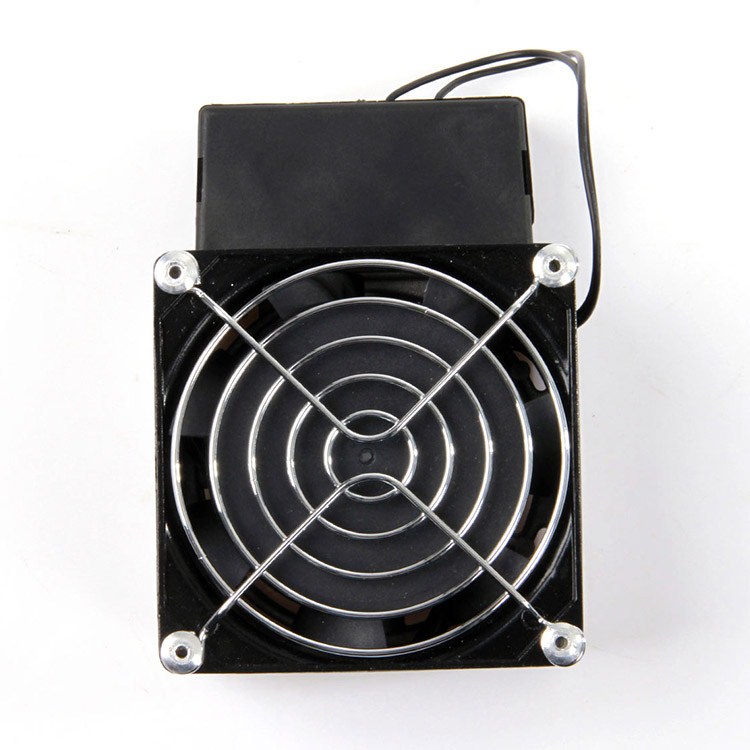

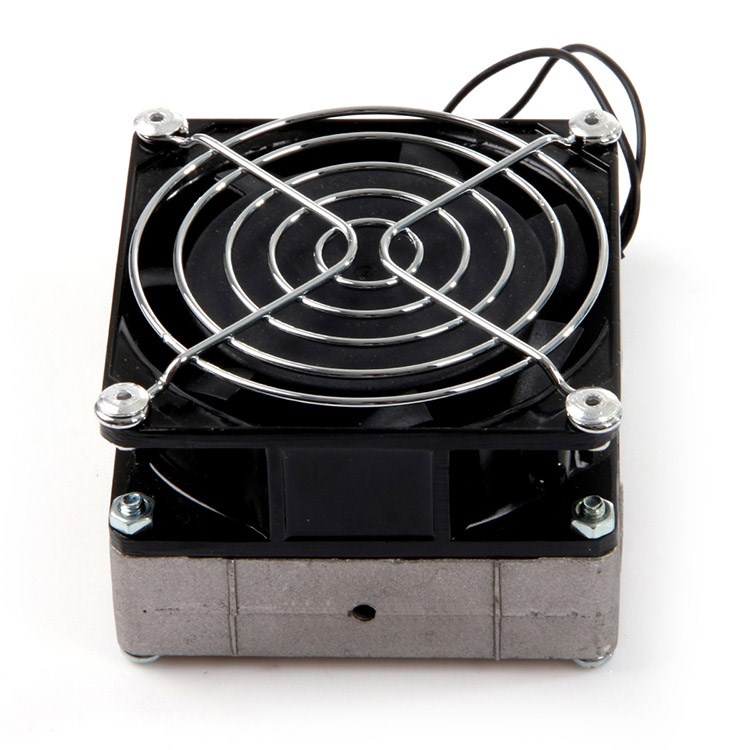

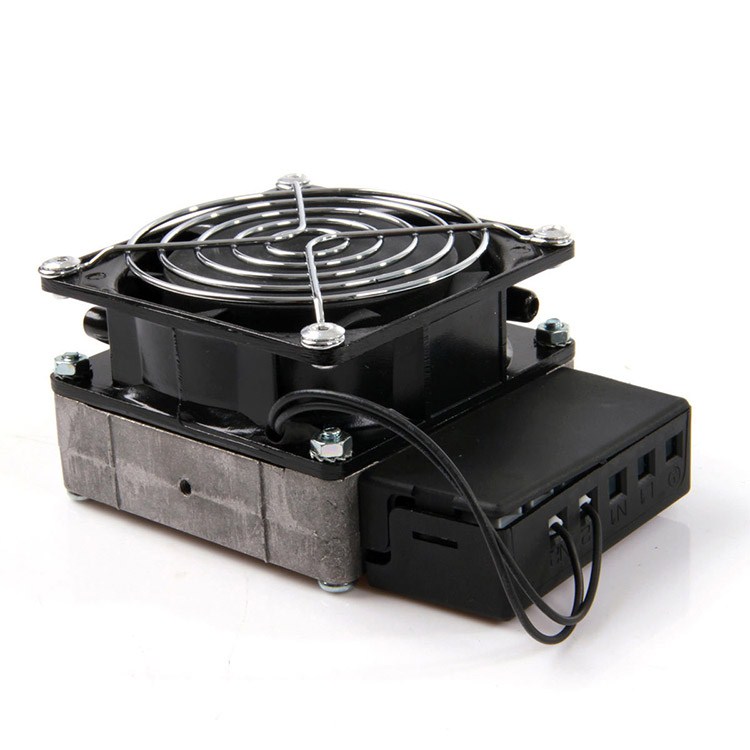

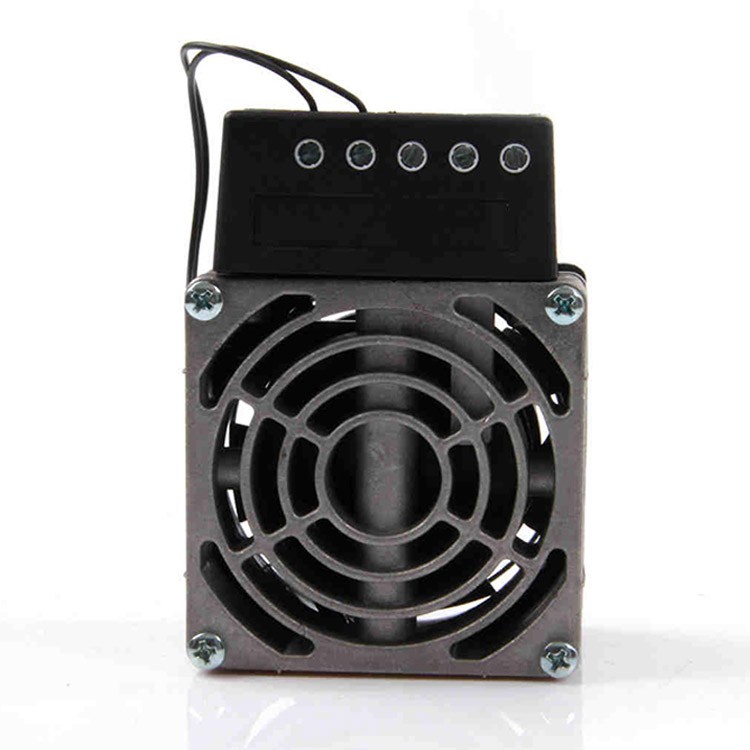

HVL 031 Fan Heater

1. Small Compact
2. Flat design
3. High air through-flow
4. Temperature safety cut-out
5. Clip fixing

Compact high-performance fan heater prevents formation of condensation and frost and provides an evenly distributed interior air temperature in enclosures with electric/electronic components. This fan heater may only be operated together with a fan.

OnLine Service:

E-mail Us PDF Download
vantoele 75606132
【Prev Products】 【Next Products】

Description

Stego HVL 031 Fan Heater Specifications

HV 031
Heater without fan (fan mounting kit included)
HVL 031
Heater with fan
Heating element
high performance cartridge
Temperature safety cut-out
to protect against overheating in case of fan failure
Heater body
die-cast aluminium (glass bead blasted)
Connection
3-pole screw connector 2.5mm clamping torque 0.8Nm max.
Connection casing
plastic according to UL94 V-0,black
Mounting
clip for 35mm DIN rail, EN 60715
Fitting position
horizontal
Operating/Storage temperature
-45 to +70℃ (-49 to +158°F)
Protection type/Protection class IP20 / I (earthed)
HVL 031 only
Axial fan, ball bearing airflow see table service life 50,000h at 25℃(77°F)
Connection(axial fan) 2-pole screw connector 2.5mm (L2/N2)

Important note: Heater may only be operated together with fan. Danger of overheating!

Art. No. HVL 031 Art. No. HVL 031 Heating capacity Airflow min., free flow Dimensions Weight (approx.)
230VAC, 50/60Hz 120VAC, 50/60Hz
03102.0-00 03102.9-00 100W 35m³/h 80 x 112 x 47mm
0.6kg
03103.0-00 03103.9-00 150W 35m³/h 80 x 112 x 47mm
0.6kg
03113.0-00 03113.9-00 200W 108m³/h 119 x 151 x 47mm
0.9kg
03114.0-00 03114.9-00 300W 108m³/h 119 x 151 x 47mm
0.9kg
03115.0-00 03115.9-00 400W 108m³/h 119 x 151 x 47mm
0.9kg

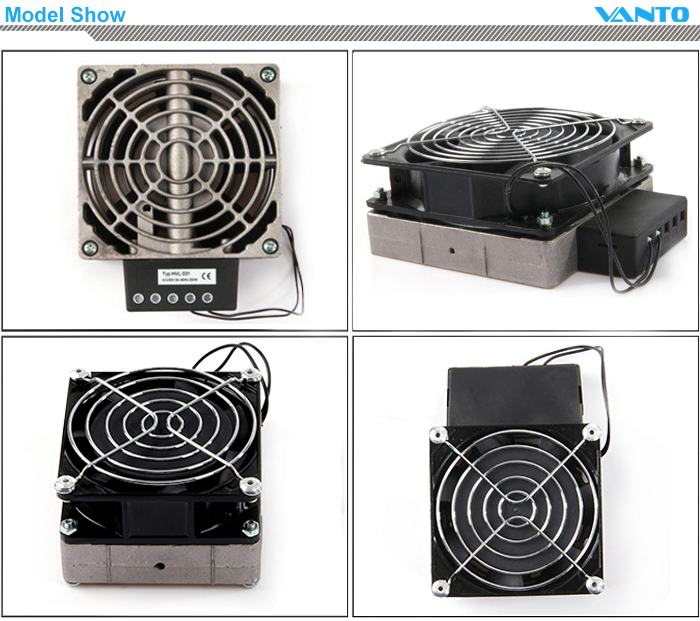

Stego Fan Heater Cabinet Heater Enclosure heater HVL 031 HV 031 for Climate Control DrawingFan Heater Cabinet Heater Enclosure heater HVL 031 for Climate Control Model ShowHVL 031 Stego Fan Heater Packing Show

Stego Fan Heater Cabinet Heater Enclosure heater HVL 031 Packing ShowFAQ-Vanto Electric

Q:1.How do you control the products' quality?

A:Auto inspection machine and manual testing together before packing.


Q:2.What's your payment term?
A:We usually accept T/T(30% deposit,the balance before delivery.)
Samples cost can be paid by Western Union,MoneyGram

Q:3.Would you accept to use our logo?
A:If you have good quantity,we can make OEM for you.

Q:4.Can I get a sample for reference?
A:We provide free samples for testing,you only need to pay the courier cost.

Q:5.What is your MOQ?
A:The MOQ can be only 1 piece.

Q:6.What is your delivery time?
A:Usually it takes 7-25 working days depends on items and quantity.

Q:7.What is your warranty time of the products?
A:24 months
