HV 031 Heater without Fan

1. Small Compact
2. Flat design
3. High air through-flow
4. Temperature safety cut-out
5. Clip fixing

This fan heater may only be operated together with a fan, HV 031 is heater without fan for self-assembly.

OnLine Service:

E-mail Us PDF Download
vantoele 75606132
【Prev Products】 【Next Products】

Description

HV 031Heater Specifications

HV 031
Heater without fan (fan mounting kit included)
HVL 031
Heater with fan
Heating element
high performance cartridge
Temperature safety cut-out
to protect against overheating in case of fan failure
Heater body
die-cast aluminium (glass bead blasted)
Connection
3-pole screw connector 2.5mm clamping torque 0.8Nm max.
Connection casing
plastic according to UL94 V-0,black
Mounting
clip for 35mm DIN rail, EN 60715
Fitting position
horizontal
Operating/Storage temperature
-45 to +70℃ (-49 to +158°F)
Protection type/Protection class IP20 / I (earthed)
HVL 031 only
Axial fan, ball bearing airflow see table service life 50,000h at 25℃(77°F)
Connection(axial fan) 2-pole screw connector 2.5mm (L2/N2)

Art. No. HV 031 Art. No. HV 031 Heating capacity Dimensions Weight (approx.)
230VAC, 50/60Hz 120VAC, 50/60Hz
03100.0-00 03100.9-00 100W 80 x 112 x 22mm 0.4kg
03101.0-00 03101.9-00 150W 80 x 112 x 22mm 0.4kg
03110.0-00 03110.9-00 200W 119 x 151 x 22mm 0.5kg
03111.0-00 03111.9-00 300W 119 x 151 x 22mm 0.5kg
03112.0-00 03112.9-00 400W 119 x 151 x 22mm 0.5kg

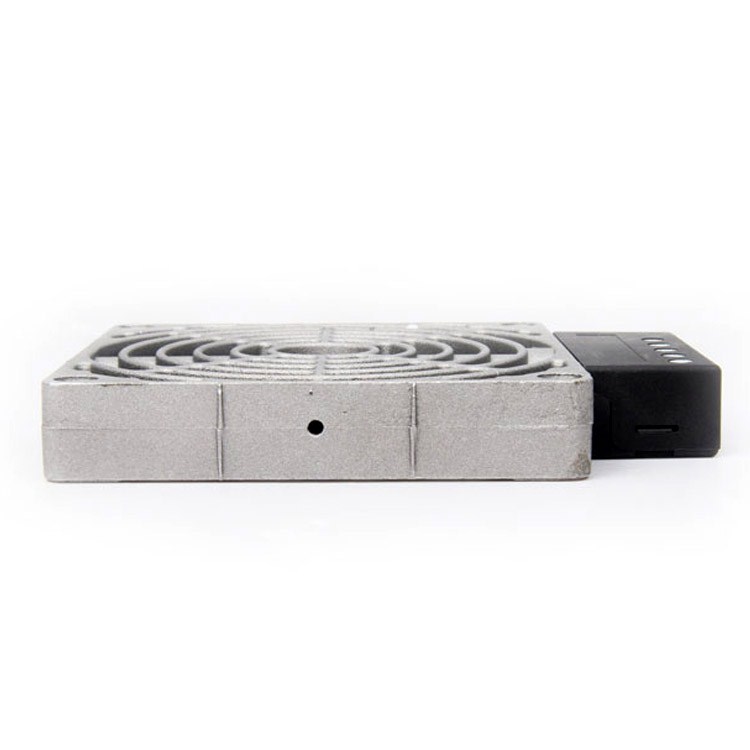

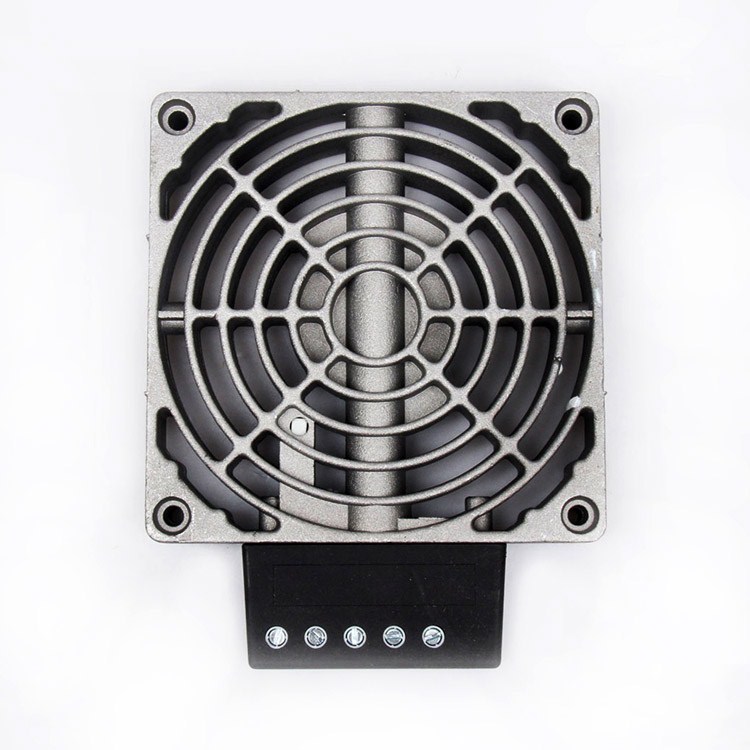

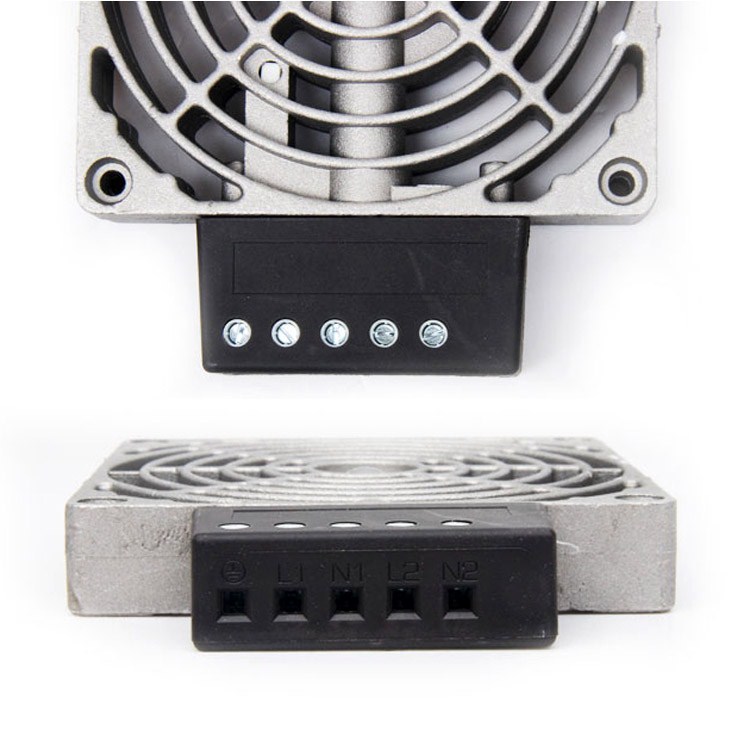

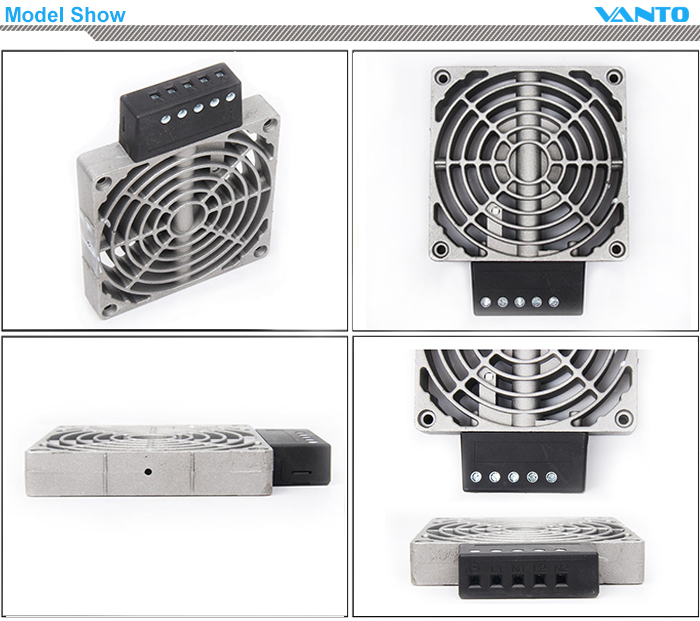

HV 031 Heater without Fan Model Show

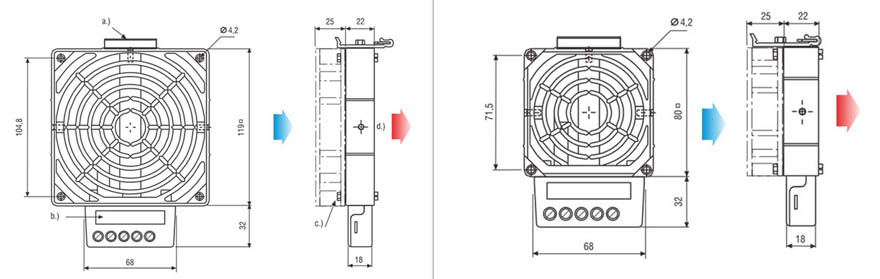

HVL 031 HV 031 Fan Heater Drawing

HV 031 Heater without Fan Packing Show


FAQ-Vanto Electric

Q:1.How do you control the products' quality?

A:Auto inspection machine and manual testing together before packing.


Q:2.What's your payment term?
A:We usually accept T/T(30% deposit,the balance before delivery.)
Samples cost can be paid by Western Union,MoneyGram

Q:3.Would you accept to use our logo?
A:If you have good quantity,we can make OEM for you.

Q:4.Can I get a sample for reference?
A:We provide free samples for testing,you only need to pay the courier cost.

Q:5.What is your MOQ?
A:The MOQ can be only 1 piece.

Q:6.What is your delivery time?
A:Usually it takes 7-25 working days depends on items and quantity.

Q:7.What is your warranty time of the products?
A:24 months
