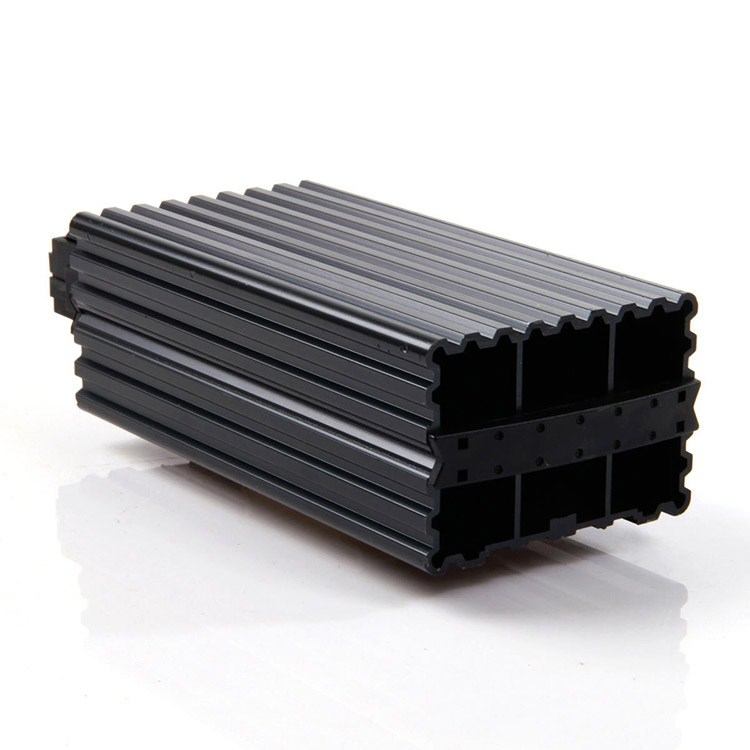

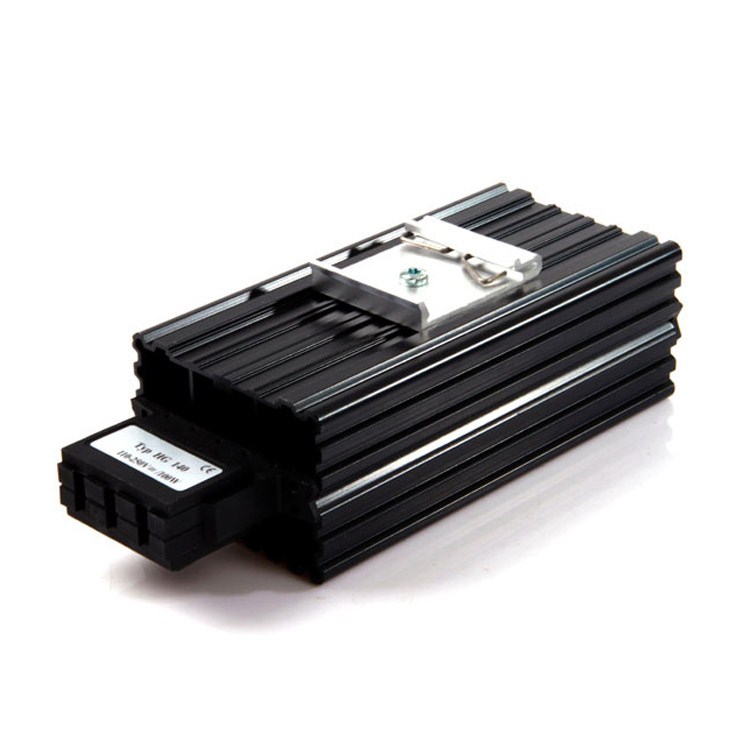

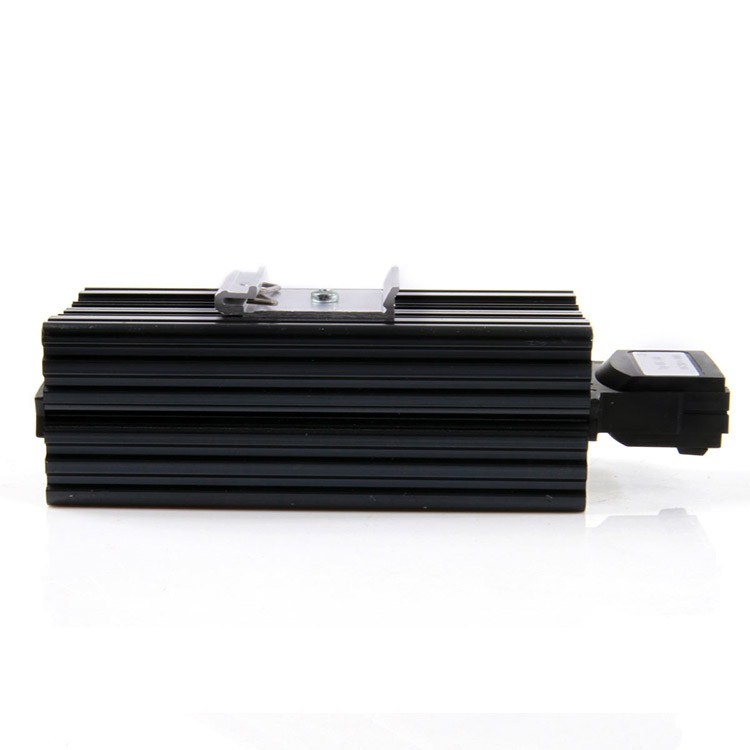

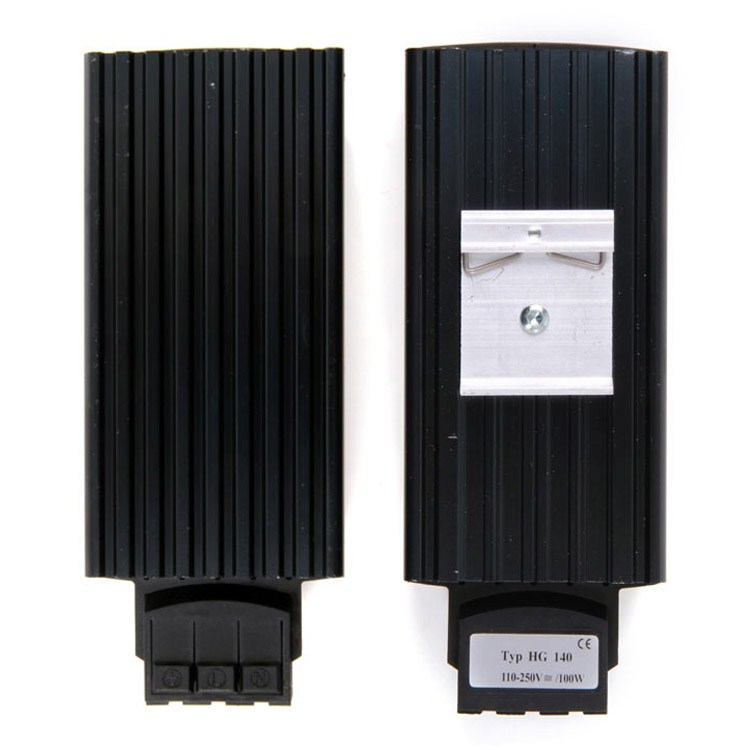

HG 140 Semiconductor PTC Heater

1. Pressure clamp connectors
2. Dynamic heating up
3. Wide voltage range
4. Energy saving
5. Clip fixing
6. Quick installation
These heaters(with terminal block) are used in enclosures where damage from condensation must be prevented, or where the temperature may not fall below a minimum value. The aluminium profile heater body design has a chimney effect and distributes the heat evenly. The heaters are designed for permanent operation. Pressure clamb connectors save time and simplify installation.

OnLine Service:

E-mail Us PDF Download
vantoele 75606132
【Prev Products】 【Next Products】

Description

Stego HG 140 Semiconductor PTC Heater Cabinet Heater Enclosure Heater Specifications

Operating voltage:
120-240V AC/DC* (min. 110V, max. 265V)
Heating element:
PTC resistor, self regulating and temperature limiting
Heater body:
extruded aluminium profile, anodised
Connection:
3 pressure clamps for stranded wire 0.5-1.5mm² (with wire end ferrule) and rigid wire 0.5- 2.5mm²
Connection casing:
plastic according to UL94 V-0, black
Mounting:
clip for 35mm DIN rail, EN 50022
Fitting position:
vertical
Operating/Storage temperature:
-45 to +70 °C (-49 to +158 °F)
Protection type/Protection class:
IP20 / I (earthed)
Accessoires:
screw fixing, Art. No. 09024.0-00 (1 packing unit = 2 pieces)

*Operating with voltages below 140V AC/DC reduces heating performance by approx. 10%.

-

Part No.

Power*
Max. current**
Length
Weight
14000.0-00
15W
1.5A
2.6"/65mm
0.3 kg
14001.0-00
30W
3.0A
2.6"/65mm
0.3 kg
14003.0-00
45W
3.5A
2.6"/65mm
0.3 kg
14005.0-00
60W
2.5A
5.5"/140mm
0.5 kg
14006.0-00
75W
4.0A
5.5"/140mm
0.5 kg
14007.0-00
100W
4.5A
5.5"/140mm
0.5 kg
14008.0-00
150W
9.0A
8.7"/220mm
0.8 kg

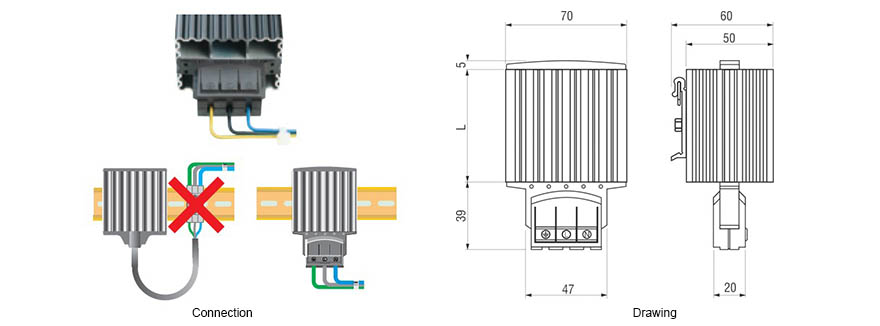

Stego HG 140 Semiconductor PTC Heater Cabinet Heater Enclosure Heater Drawing 1

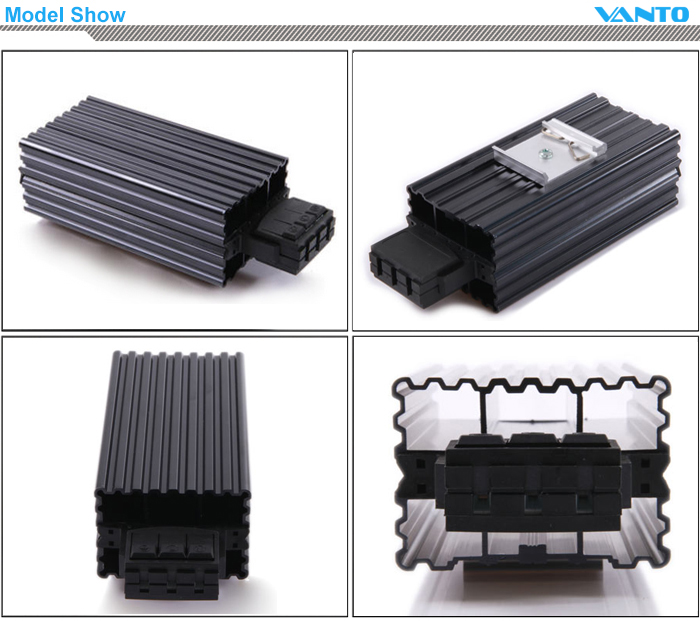

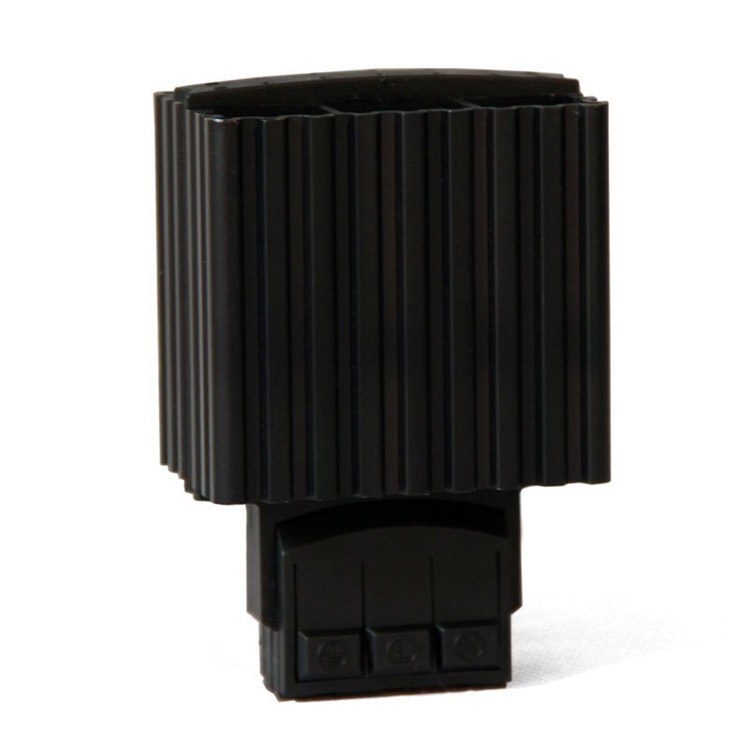

Stego HG 140 Semiconductor PTC Heater Cabinet Heater Enclosure Heater Model Show

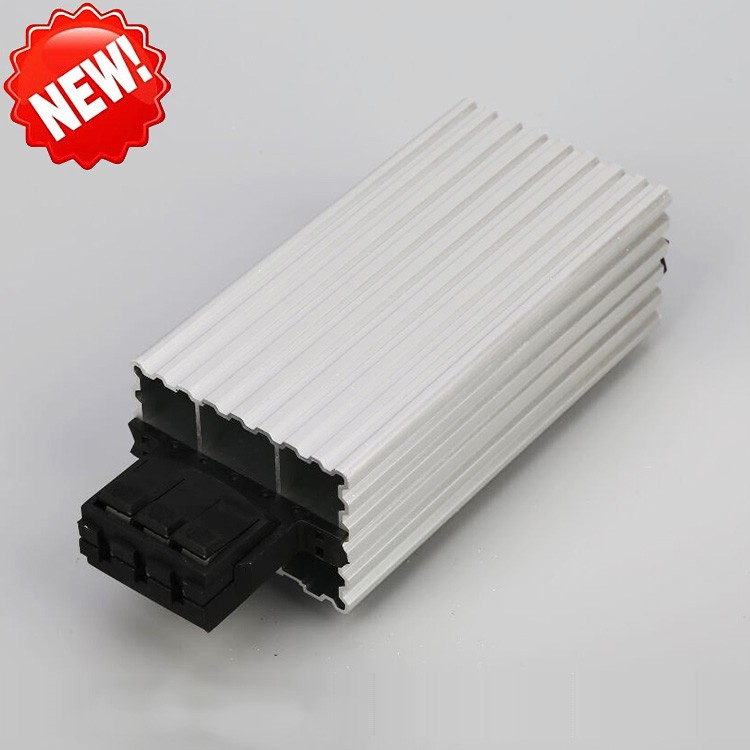

HG 140 Semiconductor PTC Heater New

Stego HG 140 Semiconductor PTC Heater Packing Show

Stego HG 140 Semiconductor PTC Heater Cabinet Heater Enclosure Heater for Climate Control Packing Show
