CS 060 Touch-safe PTC Heater (Semiconductor)
You are here: Home» Products » Heater » Semiconductor Heater

CS 060 Touch-safe PTC Heater (Semiconductor)

1. Low surface temperature
2. Quick mounting due to clip fixing
3. Double insulated (plastic)
4. Wide voltage range
5. Small size
Touch-safe heater for the use in enclosures with electrical/electronical components. The design of the heater supports the natural convection which results in a high air-current of warm air. The surface temperatures on the accessible side surfaces of the housing are kept down as a result of the heater design. Our complete range of thermostats and hygrostats can directly be connected to the heater CS 060.

OnLine Service:

E-mail Us PDF Download
vantoele 75606132
【Prev Products】 【Next Products】

Description

Stego Touch-safe PTC Heater Cabinet Heater Enclosure Heater Industrial Heater CS 060 (Semiconductor)

Operating voltage

120-240V AC/DC* (min. 110V, max. 265V)

Heating capacity

See table

Heater element

PTC resistor-temperature limiting

Surface temperature

<80 °C(176 °F),except upper protective grille

Connection

4-pole terminal 2.5mm2, torpue 0.8Nm max.

Casing

Plastic according to UL94-V-0, black

Mounting

Clip for 35mm DIN rail, EN 50022

Fitting position

Vertical

Operating/Storage temperature

-45 to +70 °C (-49 to +158 °F)

Protection type/Protection class

IP20 / II (double insulated)

Accessoires

Mounting clips (see illustration), Art. No. 09008.0-01

Note

Other voltages on request





















*Operating with voltages below 140V AC/DC reduces heating performance by approx.10%

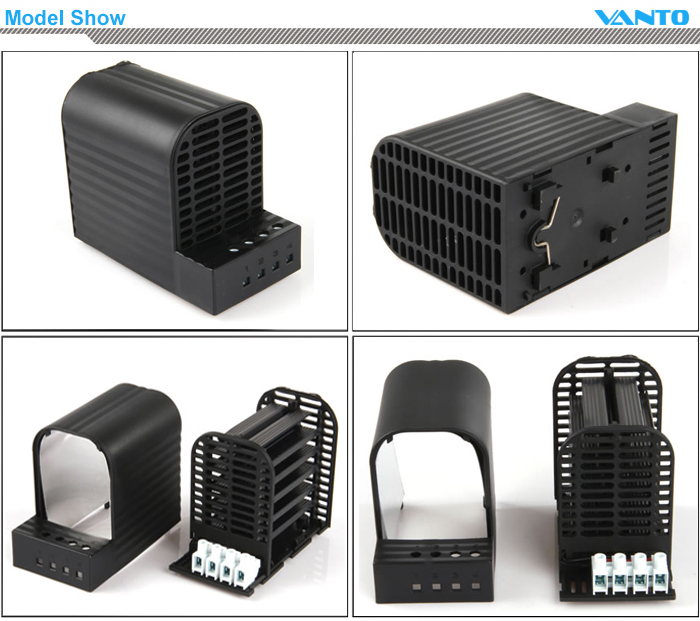

Stego Touch-safe PTC Heater Cabinet Heater Enclosure Heater Industrial Heater CS 060 DrawingStego Touch-safe PTC Heater Cabinet Heater Enclosure Heater Industrial Heater CS 060 Model Show
CS 060 Safe-touch Semiconductor PTC Heater Packing

FAQ-Vanto Electric


Q:1.How do you control the products' quality?

A:Auto inspection machine and manual testing together before packing.


Q:2.What's your payment term?
A:We usually accept T/T(30% deposit,the balance before delivery.)
Samples cost can be paid by Western Union,MoneyGram

Q:3.Would you accept to use our logo?
A:If you have good quantity,we can make OEM for you.

Q:4.Can I get a sample for reference?
A:We provide free samples for testing,you only need to pay the courier cost.

Q:5.What is your MOQ?
A:The MOQ can be only 1 piece.

Q:6.What is your delivery time?
A:Usually it takes 7-25 working days depends on items and quantity.

Q:7.What is your warranty time of the products?
A:24 months
