SG-6000 Electronic Thermostat

The SG-6000(RTC70.26) is used for 2-position control with on/off output for the control the temperature by means of an NTC sensor placed externally or internally in the thermostat. the thermostat acquires the room temperature with its built-in sensor or floor sensor, and the heating contact will close when the room temperature falls below the selected setpoint.

OnLine Service:

E-mail Us PDF Download
vantoele 75606132
【Prev Products】 【Next Products】

Description

Introduction

The RTC70.26(SG-6000) is used for 2-position control with on/off output for the control the temperature by means of an NTC sensor placed externally or

internally in the thermostat. the thermostat acquires the room temperature with its built-in sensor or floor sensor, and the heating contact will close when

the room temperature falls below the selected setpoint.


Application
For the control of warm-water(floor)heating systems and direct electric heating systems used in Commercial buildings, Residential buildings, Light in dustrial buildings...


Features

LED in dicator is light when heating is onwith manual switch and knob for easy operation ON/OFF control output for heating device.

Voltage:

AC230V

Power consumption:

5W

Setting range:

4℃~45℃

Switching differential:

±0.5k

Ambient temperature:

-5℃~50℃

Protective housing:

IP20

housing material:

Self-exting uishing PC

Floor sensor:

Rubber-thermoplastic NTC sensor

The external sensor:

Cable length is 3m

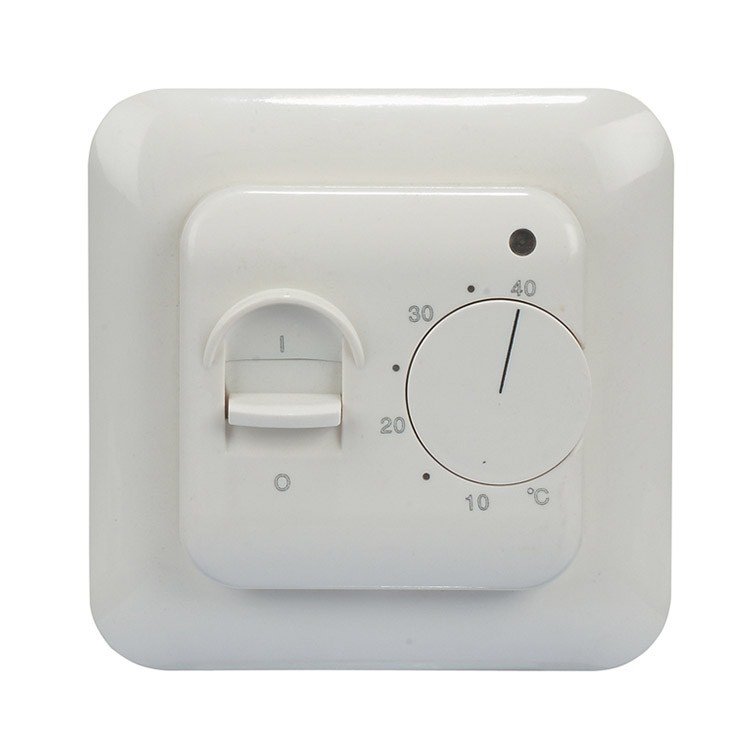

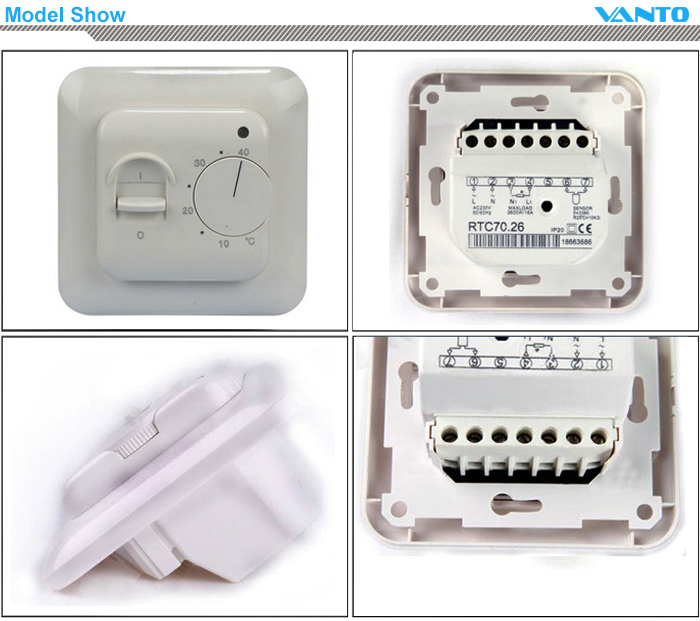

SG-6000 Mechanical Room Thermostat Model Show

SG-6000 Mechanical Room Thermostat Packing
