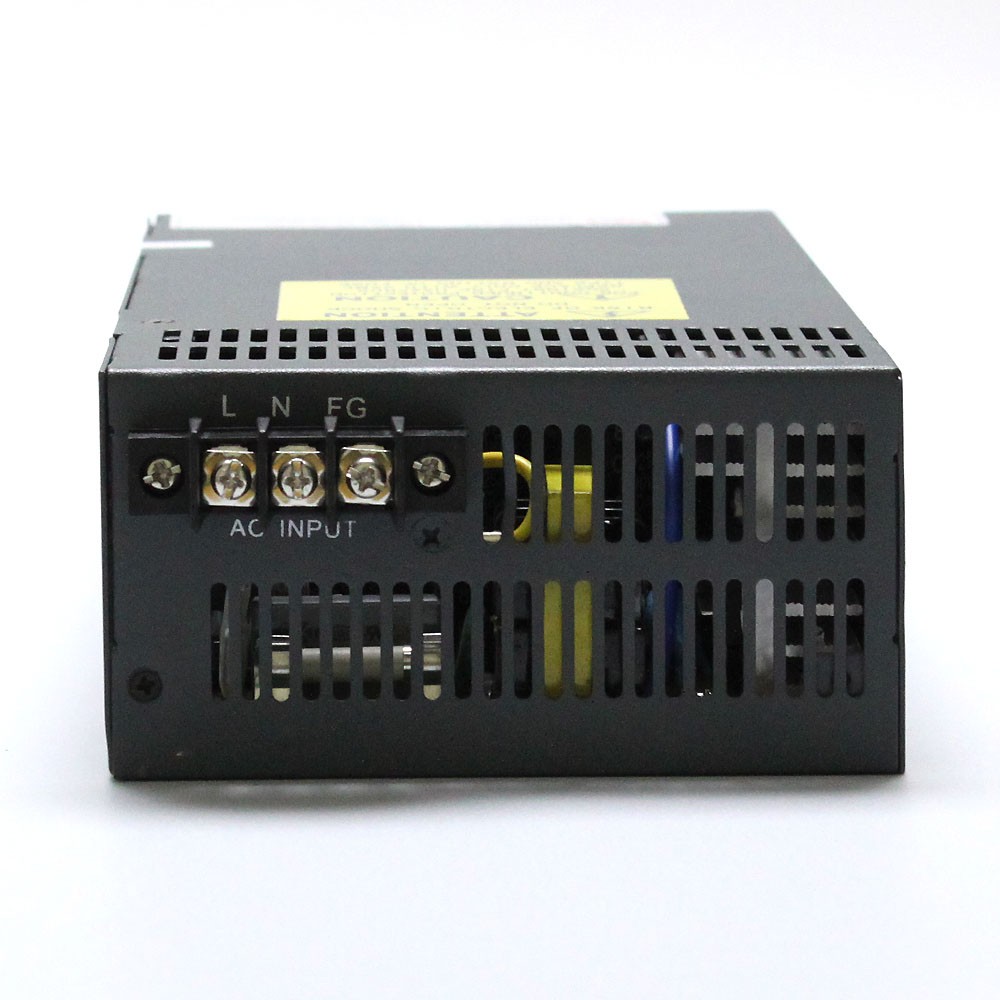

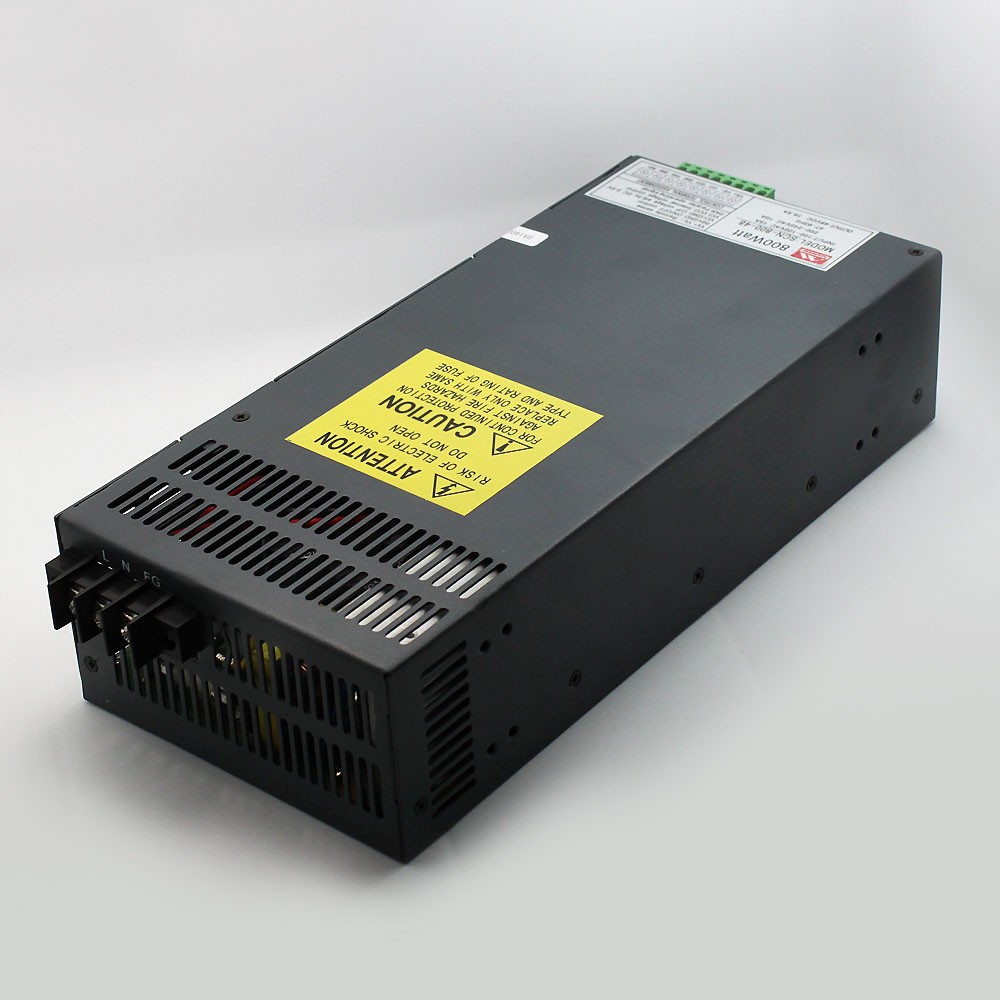

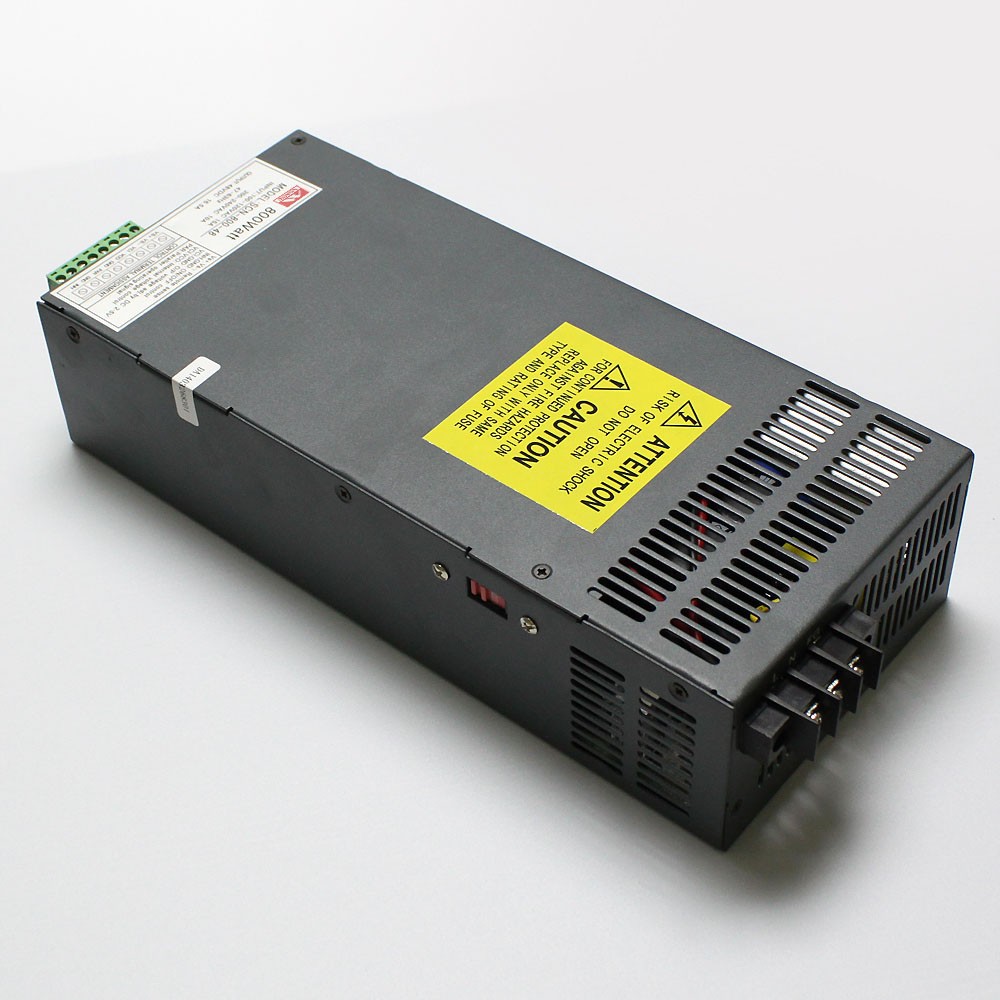

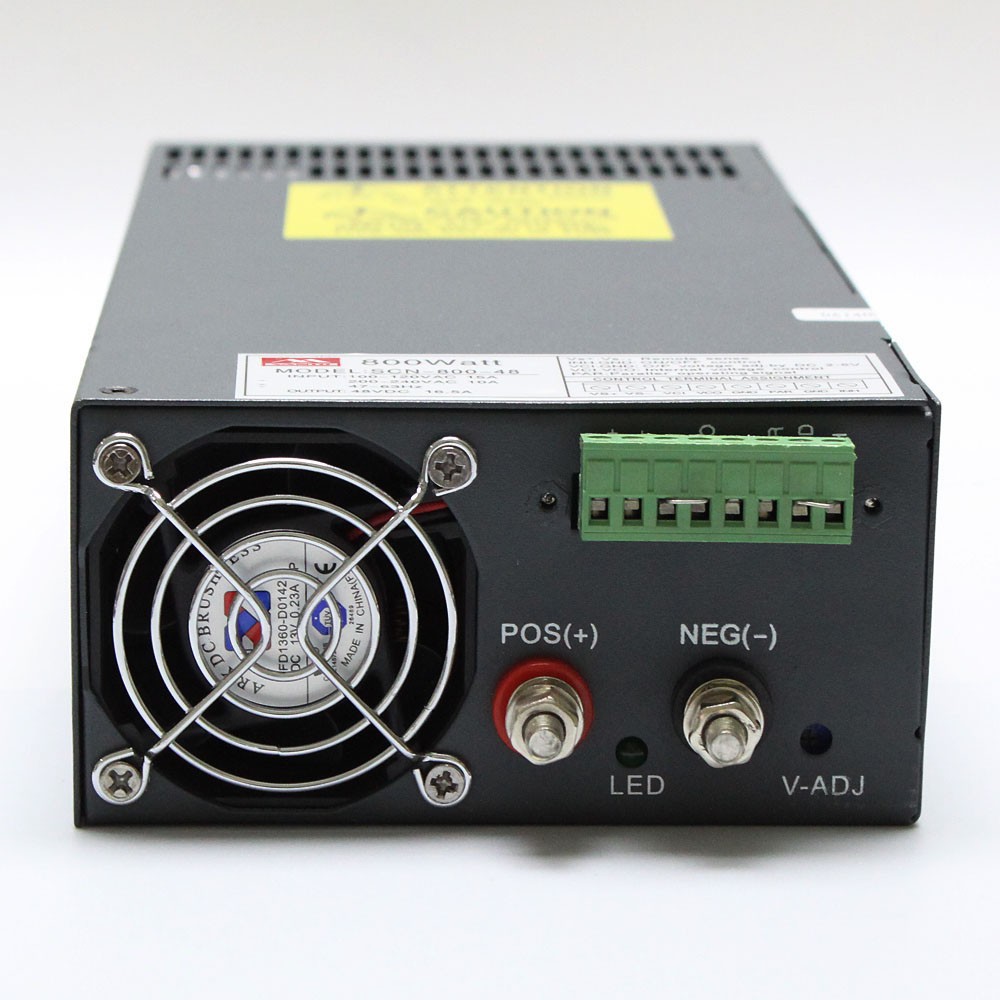

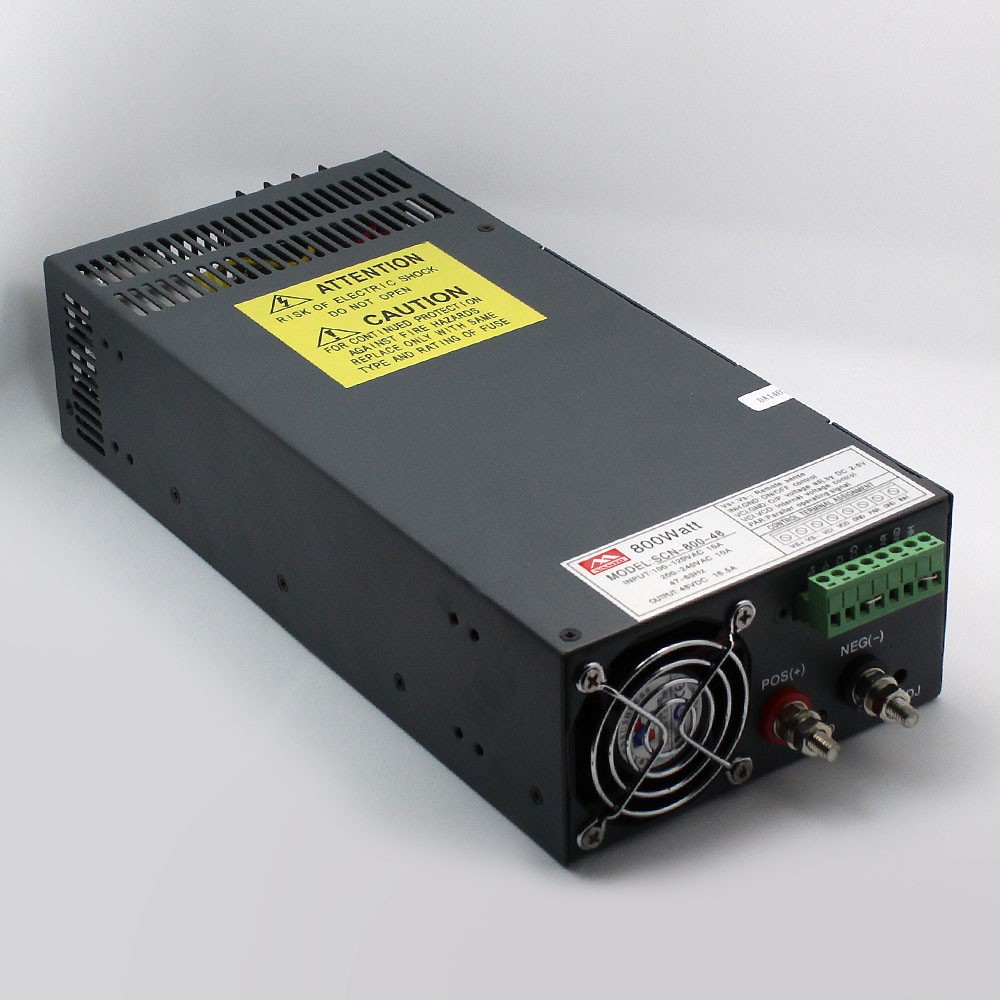

SCN-800W Single Output Switching Power Supply

1. High reliability, low ripple
2. Switch input voltage range choice
3. Protection characteristics: short circuit/overload/pressure/thermal
4. Built-in distance open/shutdown and voltage compensation signal interface
5. Has the parallel function
6. Built-in dc electric fan forced air cooling
7. One year warranty
8. Size : 291*132*68mm (L*W*H)

OnLine Service:

E-mail Us PDF Download
vantoele 75606132
【Prev Products】 【Next Products】

Description

SCN-800W AC to DC CCTV Switch Power Supply SMPS

Model
SCN-800-12
SCN-800-15
SCN-800-24
SCN-800-48

Output

Dc output voltage

12V

15V

24V

48V

Output voltage tolerance

±1%

±1%

±1%

±1%

Rated output current

66A

54A

33A

16.6A

Output current range

0-66A

0-54A

0-33A

0-16.6A

Output power

800W

800W

800W

800W

Ripple and the noise

150mVp-p

150mVp-p

240mVp-p

480mVp-p

Dc voltage adjustable scope

+ 5%; By external 2 ~ 5 V voltage control, which can adjust the output voltage of the rated voltage of the in the range of 40% ~ 100% in value

Start, rise, keep time

800ms, 50ms, 16ms Loaded with

Input

Input voltage range

90~130VAC / 180~260 VAC by switch 47~63 Hz;The switch choice
260~370VDC

Exchange input current

13A/115 VAC 8.0A/ 230 VAC

efficiency

80%

81%

85%

87%

Impulse current

60A/230V

Leakage current

3.5 mA/240VAC

Protection characteristics

Overload protection

110%~135%

Protection way: current limiting, delay shut off, restart

Overvoltage protection

110%~135%

Protection way: cut output, restart

High temperature protection

TSW1 (power tube) temperature > 100 ℃, restart when cut off output

Environment

Working temperature, humidity

-10℃~+65℃,20%~90 %RH

Keep temperature, humidity

-20℃~+85℃,10%~95 %RH

Vibrate resistance

10~200Hz,2G 10min.. / 1 cycle time, 60 minutes, the axis

Security

Compression sex

I/P-O/P, I/P-FG:1500VAC

Insulation resistance

I/P-O/P, I/P-FG, >100M Ohms / 500VDC

Standards

Safety standards

Accord with
UL1950,CSA22.2,IEC60950

EMC standard

Accord with
FCC Part 15 Class A

Other

weight

2.65Kg;

packaging

6pcs/16kg

Note

1. All the parameters in has not specified, all is in 230 VAC voltage input, rated load and 25 ℃ conditions measuring income value.

2. Ripple and noise voltage is in 20 MHz bandwidth oscilloscope take 12 inches twisted pair end with 0.1 mu and 47 u when capacitance measurement.

3. Tolerance is voltage setting error, the voltage adjustment rate and adjust the sum total of the current rate.

4. The power to consider as a device installed in final equipment, this equipment must be to make sure it’s EMC index.

SCN-800W AC to DC CCTV Switch Power Supply SMPS Packing

SCN-800W AC to DC CCTV Switch Power Supply SMPS Packing Show

SCN-800W AC to DC CCTV SMPS FAQ

Q:1.How do you control the products' quality?

A:Auto inspection machine and manual testing together before packing.


Q:2.What's your payment term?
A:We usually accept T/T(30% deposit,the balance before delivery.)
Samples cost can be paid by Western Union,MoneyGram

Q:3.Would you accept to use our logo?
A:If you have good quantity,we can make OEM for you.

Q:4.Can I get a sample for reference?
A:We provide free samples for testing,you only need to pay the courier cost.

Q:5.What is your MOQ?
A:The MOQ can be only 1 piece.

Q:6.What is your delivery time?
A:Usually it takes 7-25 working days depends on items and quantity.

Q:7.What is your warranty time of the products?
A:24 months
