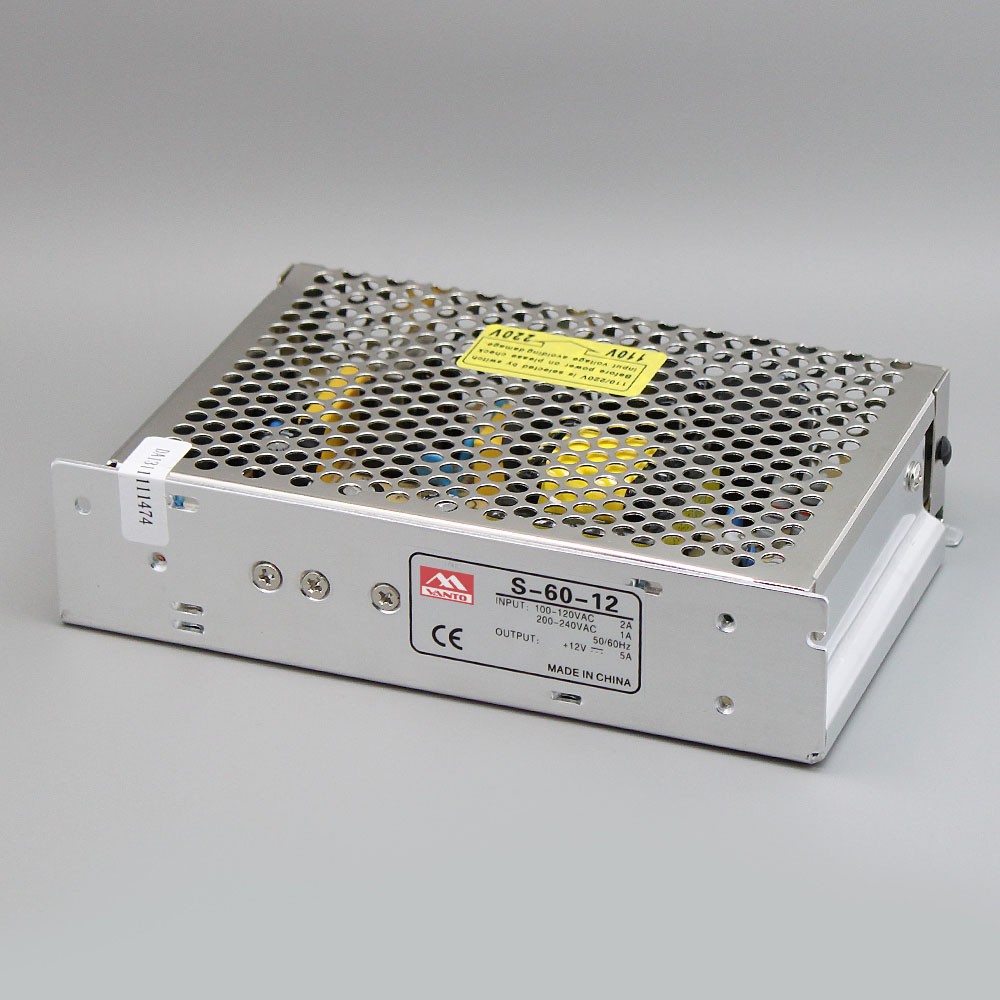

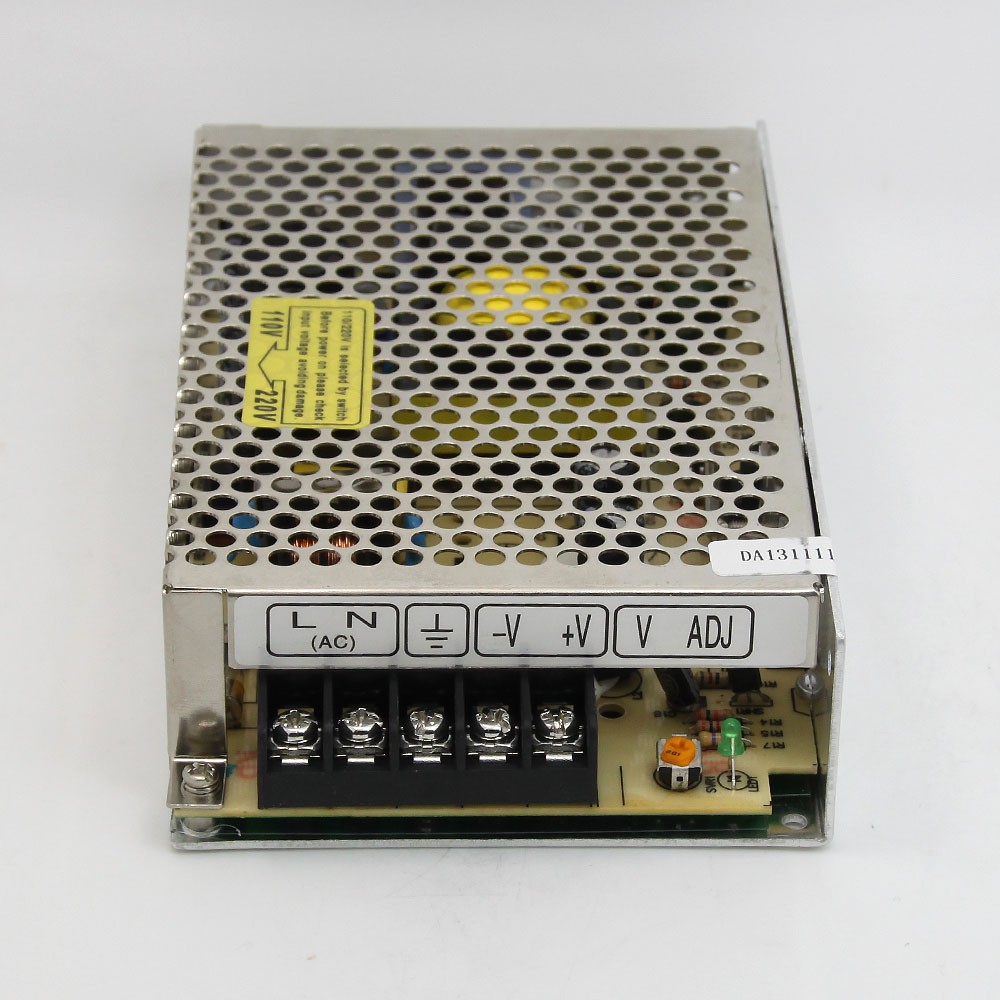

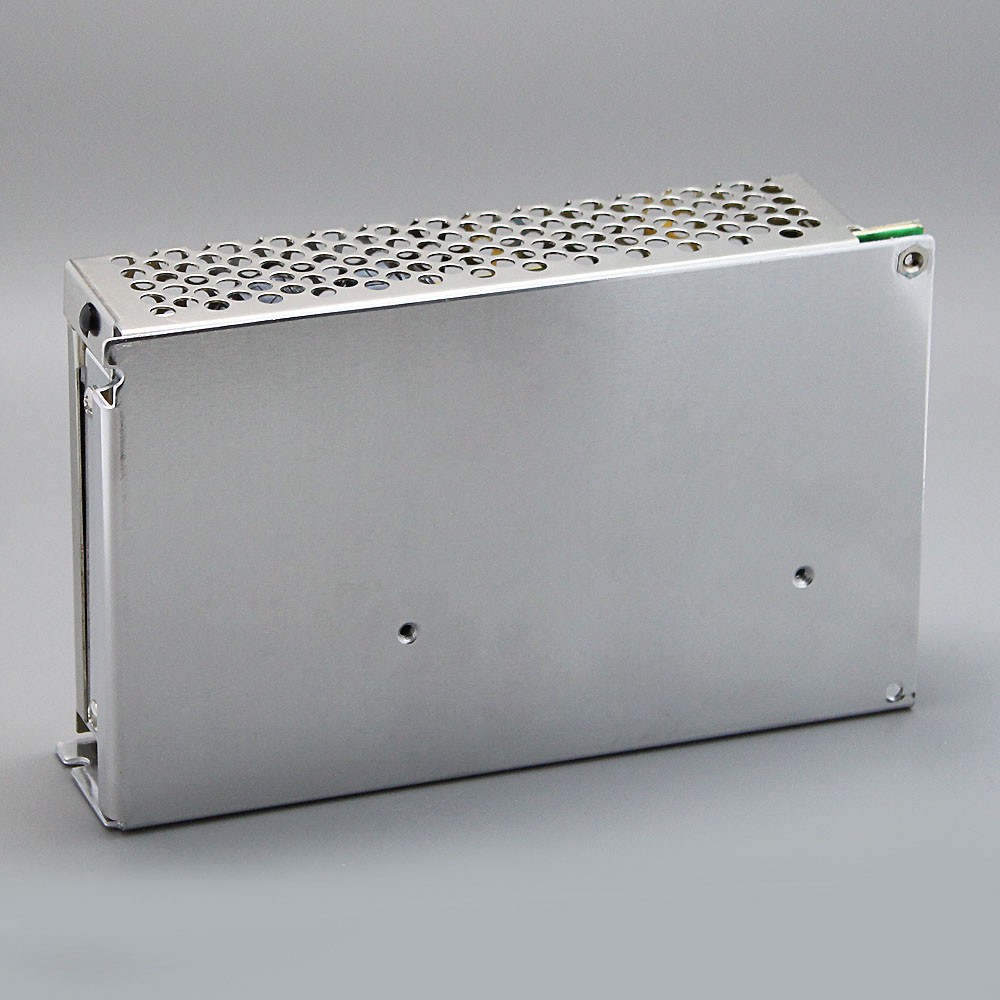

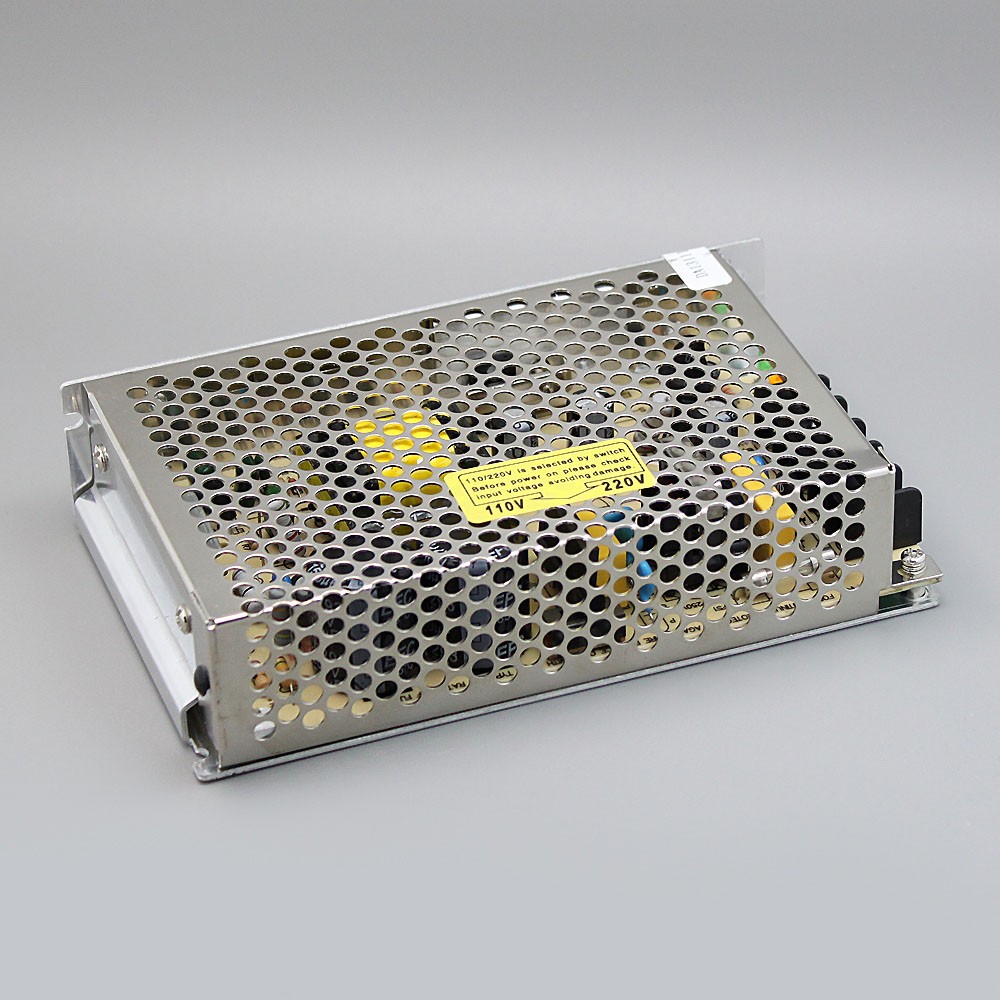

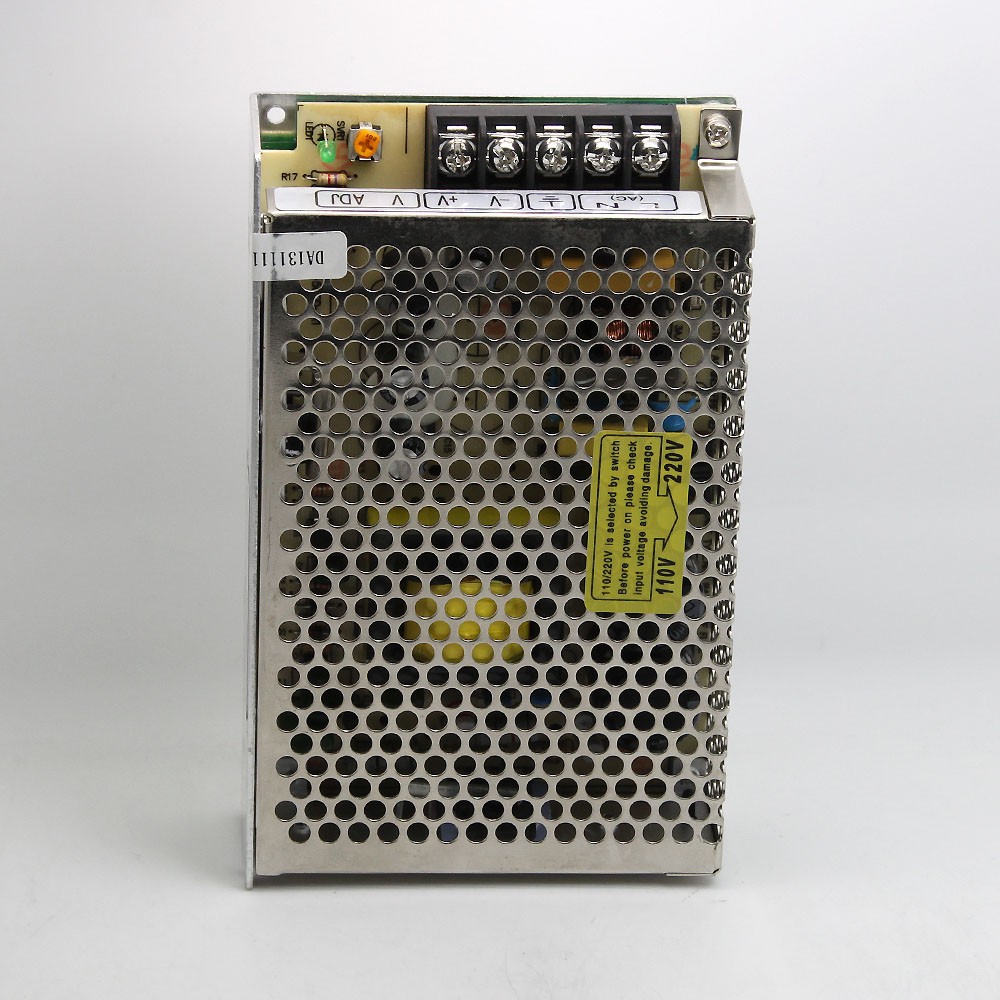

S-60W Single Output Switching Power Supply

1. High efficiency, high reliability and low cost
2. Switch input voltage range choice
3. 100% full load and machine test
4. Protection characteristics: short circuit/overload
5. Air cooling
6. Working frequency 37 KHz
7. Two years warranty
8. Size:159*98*38mm(L*W*H)

OnLine Service:

E-mail Us PDF Download
vantoele 75606132
【Prev Products】 【Next Products】

Description

S-60W AC DC Single Output Switching Power Supply Specificates

Model

S-60-5

S-60-12

S-60-15

S-60-24

S-60-48

Output

Dc output voltage

5V

12V

15V

24V

48V

Output voltage tolerance

±2%

±1%

±1%

±1%

±1%

Rated output current

12A

5A

4A

2.5A

1.3A

Output current range

0-12A

0-5A

0-4A

0-2.5A

0-1.3A

Output power

60W

60W

60W

60W

62.4W

Ripple and the noise

120mVp-p

120mVp-p

150mVp-p

150mVp-p

200mVp-p

Dc voltage adjustable scope

+10, -5%

±10%

±10%

±10%

±10%

Start, rise, keep time

800ms,50ms,10ms/115VAC 300ms,50ms,80ms/230VAC

Input

Input voltage range

90 ~132 VAC / 180-264VAC by switch 47~63 Hz;120~370VDC

Exchange input current

2A/115 V 1A/ 230 V

efficiency

73%

76%

77%

79%

79%

Impulse current

Cold start current 30A/115VAC 60A/230VAC

Leakage current

<3.5 mA/240VAC

Protection characteristics

Overload protection

115%~165%

Protection way: current limiting, automatic recovery

Over-voltage protection

115%~135%

Protection way: hiccups, auto recovery mode

Environment

Working temperature, humidity

-10℃~+60℃;20%~90 %RH

Keep temperature, humidity

-20℃~+85℃;10%~95 %RH

Vibrate resistance

10~500Hz,2G 10min./1 cycle time, 60 minutes, the axis

Security

Compression sex

3: KVAC between input and output and input and output KVAC: 1.5 to 0.5: KVAC

Insulation resistance

Between the input and output, the input and output, and ground:
100M Ohms/500VDC

Standard

Safety standards

Accord with
UL1012, UL1950,TUV EN60950

EMC standards

Accord with
EN55022,EN61000-3-2,-3,EN61000-4-2,3,4,5,6,8,11;ENV50204,EN55024

Other

weight

0.5Kg

packaging

30pcs/15.8Kg/0.99CUFT

Note

1. All the parameters in has not specified, all is in 230 VAC voltage input, rated load and 25 ℃ conditions measuring income value.
2. Ripple and noise voltage is in 20 MHz bandwidth oscilloscope take 12 inches twisted pair end with 0.1 mu and 47 u when capacitance measurement.
3. Tolerance is voltage setting error, the voltage adjustment rate and adjust the sum total of the current rate.
4. The power to consider as a device installed in final equipment, this equipment must be to make sure it’s EMC index.
5. Specific output current see output drop forehead curve

60W AC DC Switching Power Supply Packing

60W AC DC Switching Power Supply Packing Show

60W AC DC Switching Power Supply FAQ

Q:1.How do you control the products' quality?

A:Auto inspection machine and manual testing together before packing.


Q:2.What's your payment term?
A:We usually accept T/T(30% deposit,the balance before delivery.)
Samples cost can be paid by Western Union,MoneyGram

Q:3.Would you accept to use our logo?
A:If you have good quantity,we can make OEM for you.

Q:4.Can I get a sample for reference?
A:We provide free samples for testing,you only need to pay the courier cost.

Q:5.What is your MOQ?
A:The MOQ can be only 1 piece.

Q:6.What is your delivery time?
A:Usually it takes 7-25 working days depends on items and quantity.

Q:7.What is your warranty time of the products?
A:24 months
