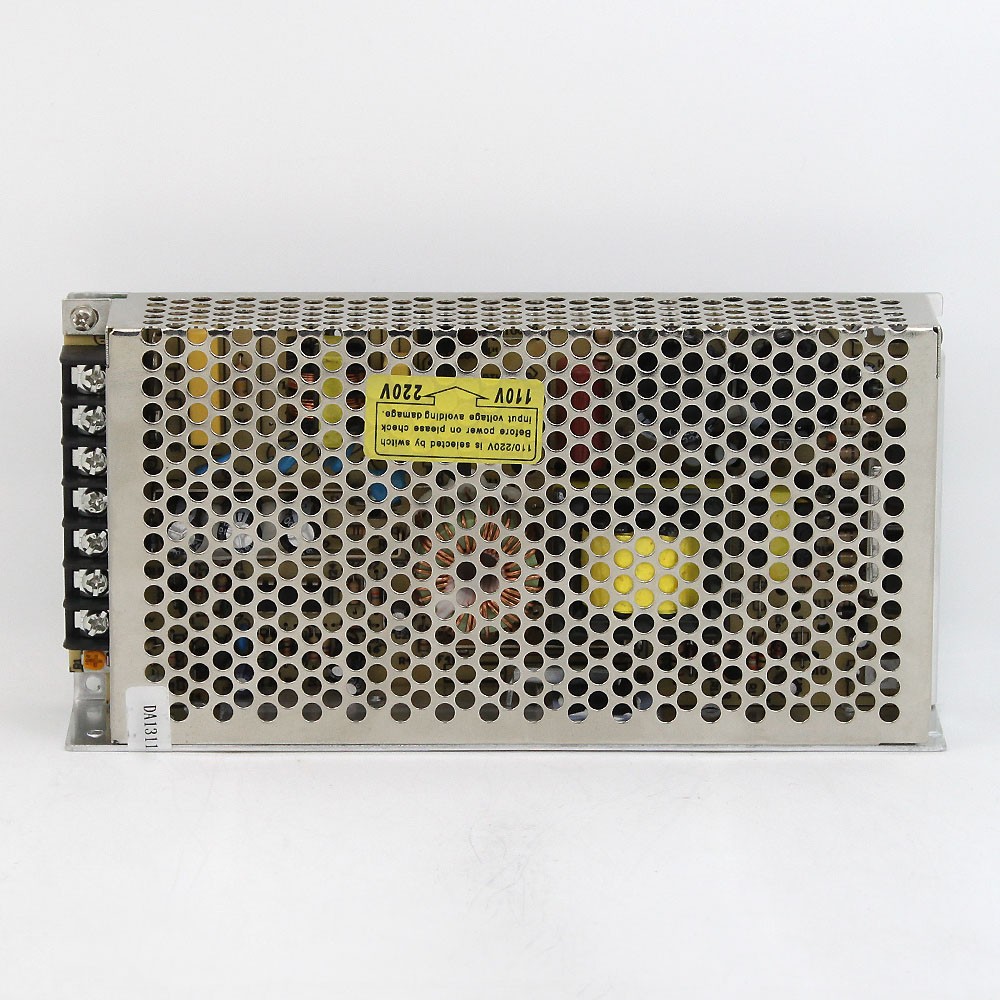

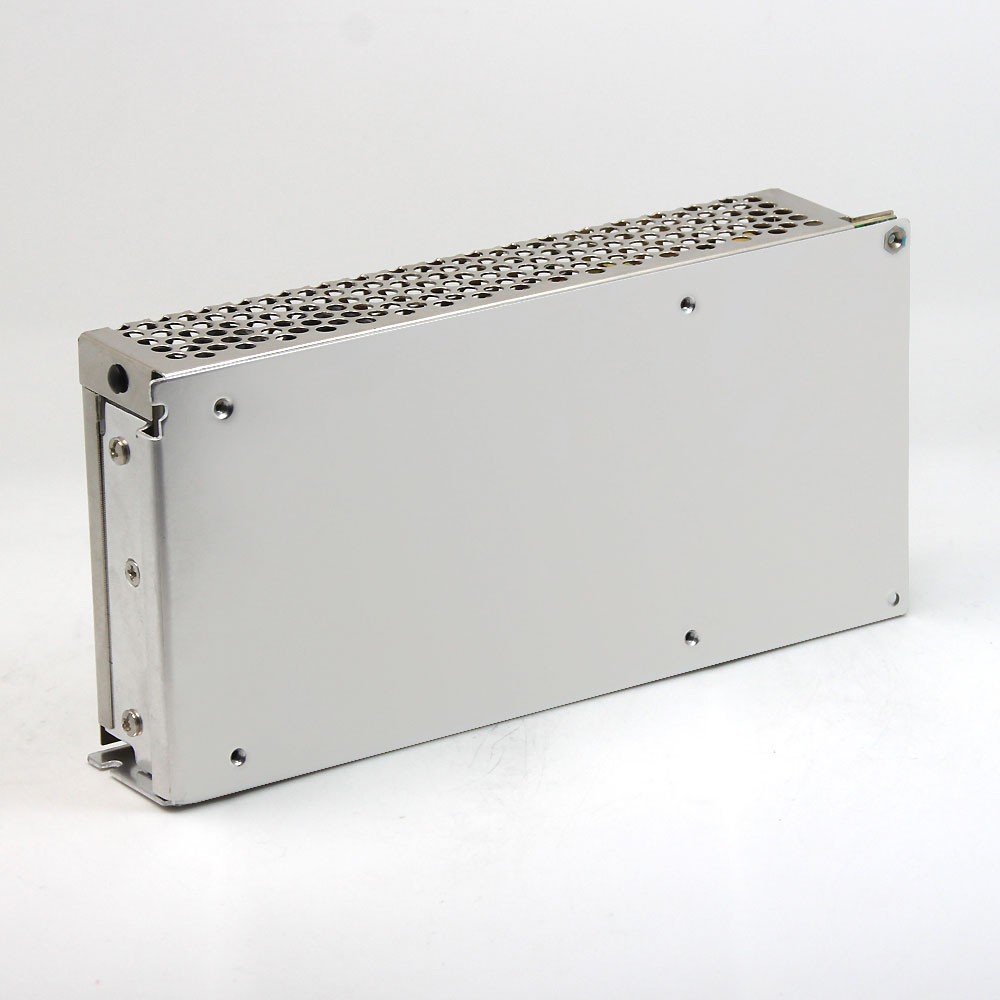

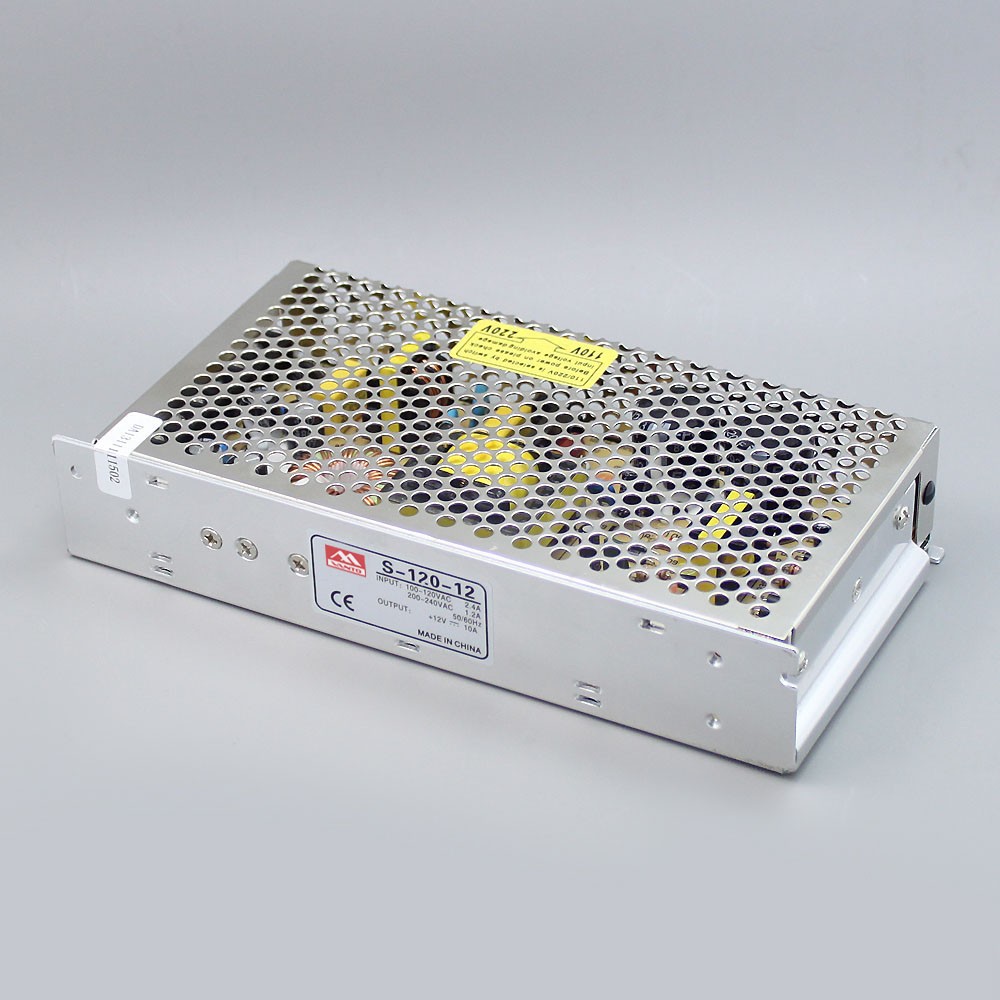

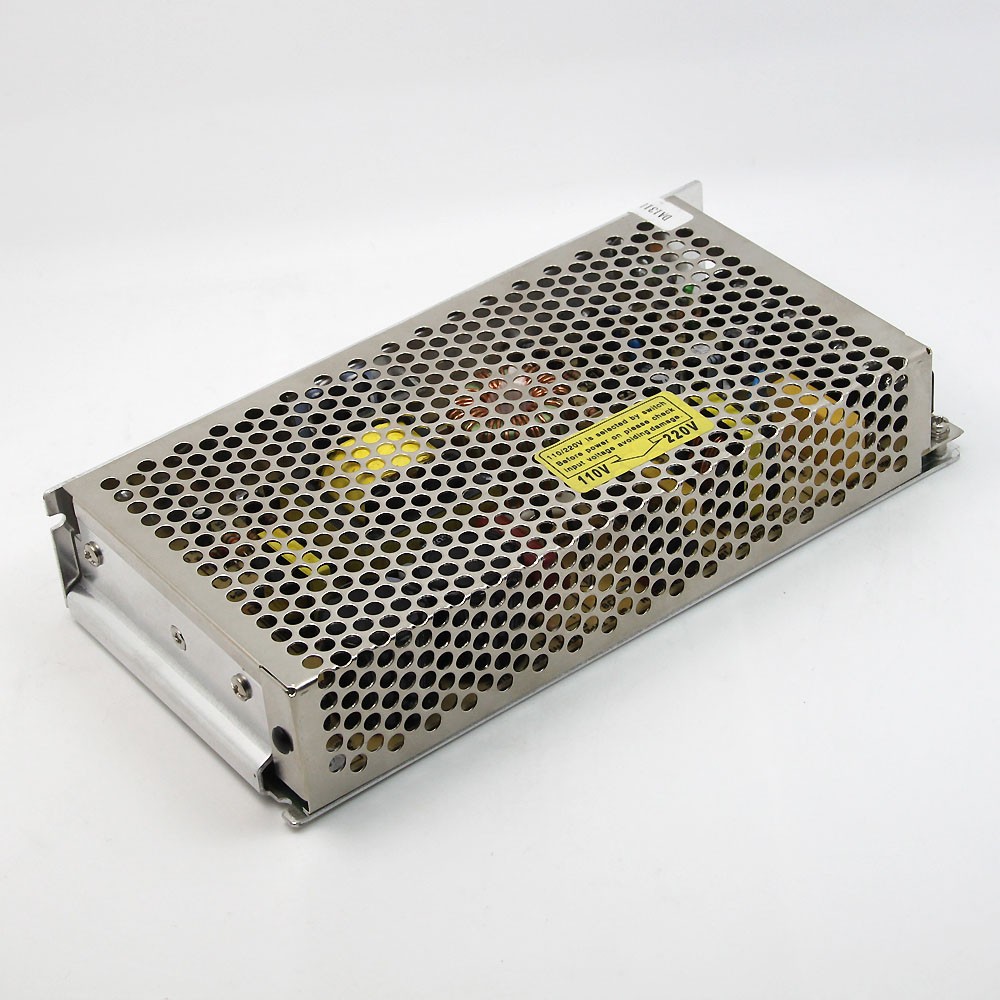

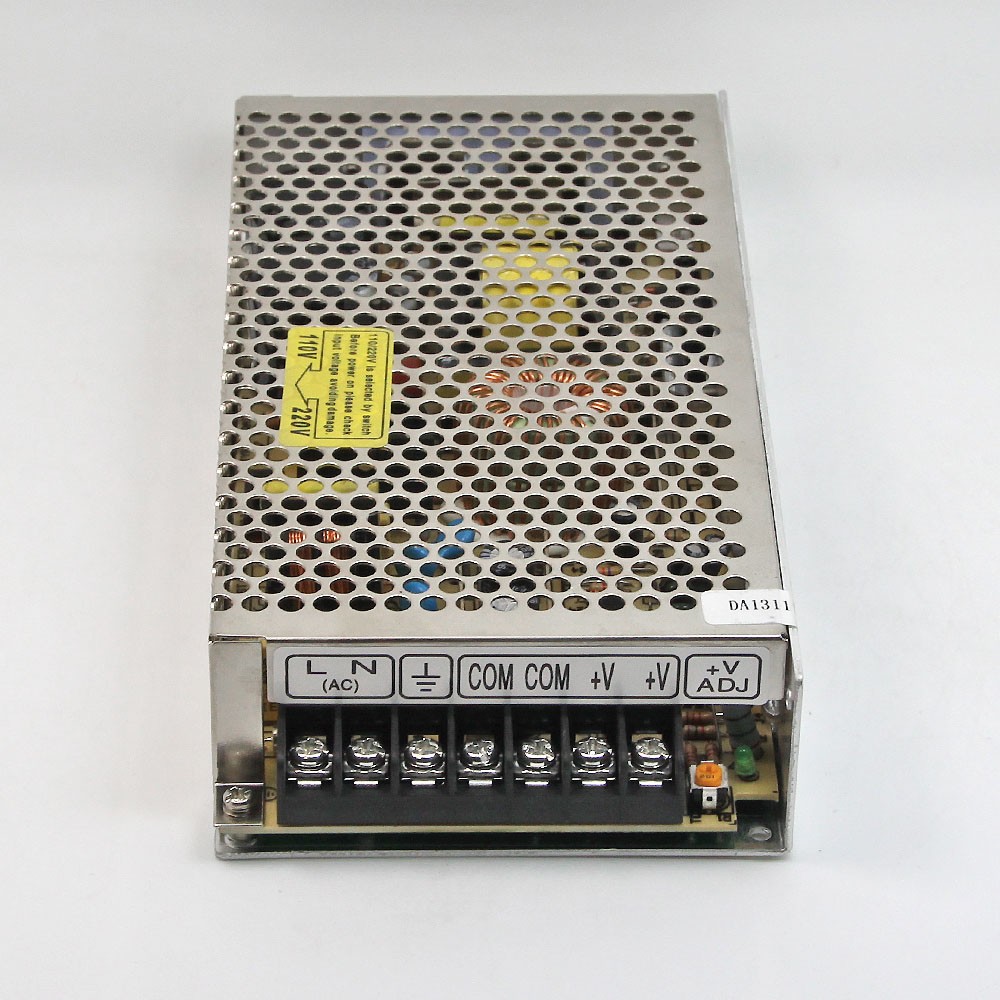

S-120W Single Output Switching Power Supply

1. High efficiency, high reliability and low cost
2. Switch input voltage range choice
3. 100% full load and machine test
4. Protection characteristics: short circuit/overload/pressure
5. Air cooling
6. Working frequency 25 KHz
7. 2 years warranty
8. Size: 199*98*38mm (L*W*H)

OnLine Service:

E-mail Us PDF Download
vantoele 75606132
【Prev Products】 【Next Products】

Description

120W 24VDC  12VDC Switching Power Supply Specificates

Model

S-120-5

S-120-12

S-120-15

S-120-24

DC output voltage

5V

12V

15V

24V

Output voltage tolerance

±2%

±1%

±1%

±1%

Rated output current

24A

10A

8A

5A

Output current range

0-24A

0-10A

0-8A

0-5A

Ripple and noise

50mVp-p

100mVp-p

100mVp-p

100mVp-p

Inlet stability

±0.5%

±0.5%

±0.3%

±0.2%

Load stability

±1%

±0.5%

±0.3%

±0.2%

DC output power

120W

120W

120W

120W

Efficiency

79%

84%

85%

85%

Output voltage adjustment range

±10%

±10%

±10%

±10%

AC input voltage range

85~132VAC/170~265VAC/47~63VAC,120~370VDC

Input current

0.6A/115V 0.35A/230V

AC impulse current

Cold-start current 15A/115V 30A/230V

Leakage current

<0.75mA/240VAC

Overload protection

105%~150% Type,PULSING HICCUP SHUTDOWN,Reset,auto recovery

Over-voltage protection

115%~135% rated output power

Temperature coefficient

±0.03%°C(0~50°C)

Setup rise hold up time

800ms,50ms,20ms/115VAC 300ms,50ms,80ms/230VAC

Vibration

10~500Hz,2G 10min./1cycle,Period for 60min,Each axes

Withstand voltage

I/P-O/P:2.5KVAC I/P-FG:2KVAC O/P-FG:0.5KVAC

Isolation resistance

I/P-O/P I/P-FG O/P-FG:500VDC/100MΩ

Working temperature and humidity

-10°C~+60°C,20~90%RH

Store temperature and humidity

-20°C~+85°C,10~95%RH

Overall dimension

199*98*38mm / 30pcs per carton

Weight

0.6Kgs

Safety standards

Desgin refer to UL1012,EN60950-1,EN61347-1,EN-61347-2 approved

EMC standards

EN55015,EN55022,EN55024,EN61000-2,EN61000-3,EN61547 approved

120W 24VDC  12VDC Switching Power Supply Packing

120W 24VDC  12VDC Switching Power Supply Packing Show

120W 24VDC  12VDC Switching Power Supply FAQ

Q:1.How do you control the products' quality?

A:Auto inspection machine and manual testing together before packing.


Q:2.What's your payment term?
A:We usually accept T/T(30% deposit,the balance before delivery.)
Samples cost can be paid by Western Union,MoneyGram

Q:3.Would you accept to use our logo?
A:If you have good quantity,we can make OEM for you.

Q:4.Can I get a sample for reference?
A:We provide free samples for testing,you only need to pay the courier cost.

Q:5.What is your MOQ?
A:The MOQ can be only 1 piece.

Q:6.What is your delivery time?
A:Usually it takes 7-25 working days depends on items and quantity.

Q:7.What is your warranty time of the products?
A:24 months
