Q-60W Quad Output DC Power Supply
You are here: Home» Products » Switching Power Supply » Quad Output Series

Q-60W Quad Output DC Power Supply

1• AC input voltage range selected by switch
2• Small volume,low weight,high efficiency
3• Protections:short circuit/over load/over voltage
4• LED indicator for power on
5• 100% full load burn-in test
6• 2 Year warranty

OnLine Service:

E-mail Us PDF Download
vantoele 75606132
【Prev Products】 【Next Products】

Description

60W Quad Output AC to DC SMPS Switch Mode Power Supply Specificates

MODEL

Q-60B

Q-60C

CH1

CH2

CH3

CH4

CH1

CH2

CH3

CH4

OUTPUT

DC VOLTAGE

5V

12V

-5V

-12V

5V

15V

-5V

-15V

VOLTAGE TOLERANCE

±2%

±6%

±5%

±5%

±2%

±6%

±5%

±5%

RATED CURRENT

5.5A

2A

0.5A

0.5A

5.5A

1.5A

0.5A

0.5A

CURRENTRANGE

0.5-8A

0.1-3A

0-1A

0-1A

0.5-8A

0.1-3A

0-1A

0-1A

RATED POWER

60W

60W

60W

60W

65W

65W

65W

65W

RIPPLE &NOISE(MAX)

100mVp-p

120mVp-p

100mVp-p

120mVp-p

100mVp-p

120mVp-p

100mVp-p

120mVp-p

DC VOLTAGEFRE QUENCYRANGE

CH1:+10,-5%

SETUP,RISE,HOLD TIME

1.6ms,20ms,12ms/115VAC800ms,20ms, 60ms/230VAC

INPUT

VOLTAGERANGE

85~264 VAC47-63Hz;20~370VDC

AC CURRENT

1.3A/115 V0.8A/ 230 V

EFFICIENCY

70%

INRUSH CURRENT

Cold start 18A/115V36A/230V

PROTECTION

OVERLOAD PROTECTION

150%~200% /115VAC Shut down O/P voltage, re-power on to recover

OVER-VOLTAGE PROTECTION

CH1:5.75~6.75V

ENVIRONMENT

WORKING TEMP.& HUMIDITY

-10°C~+50°C;20%~90 %RH

STORAGE TEMP.& HUMIDITY

-20°C~+85°C;10%~95 %RH

VIBRATION

10~500Hz,2G 10min./1cycle, period for 60min, each along X.Y.Z axes

SAFETY

WITHSTAND VOLTAGE

I/P-O/P:3KVACI/P-FG:0.5KVACO/P-FG:0.5KVAC

ISOLATION RESISTANGE

I/P-O/P, I/P-FG, O/P-FG:500VDC/100MΩ

STANDARDS

SAFETY STANDARDS

Design refer to UL1950

EMC STANDARDS

Design refer to EN55022,EN55024,EN61000, IEC801-2,3,4IEC555-2

OTHERS

WEIGHT

0.56Kg

PACKING

30pcs/17.8Kg/1CUFT

60W Quad Output AC to DC SMPS Switch Mode Power Supply Packing

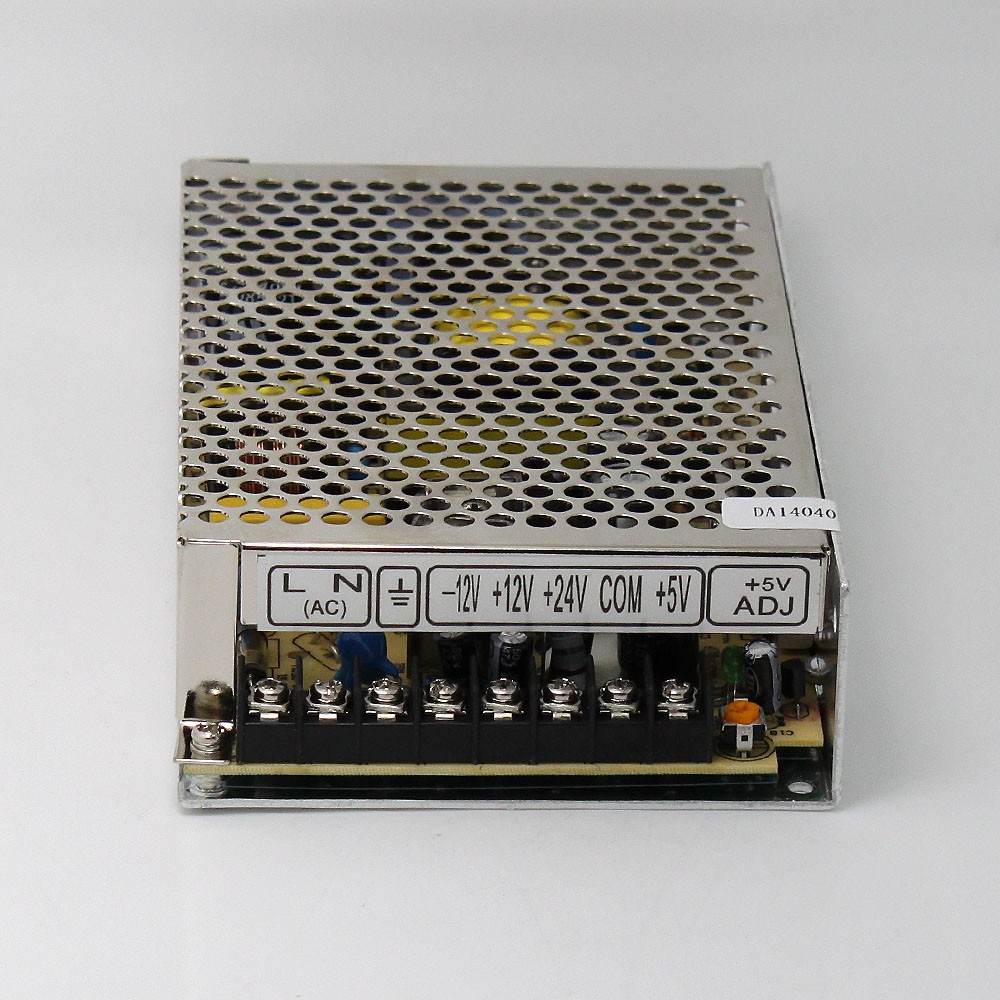

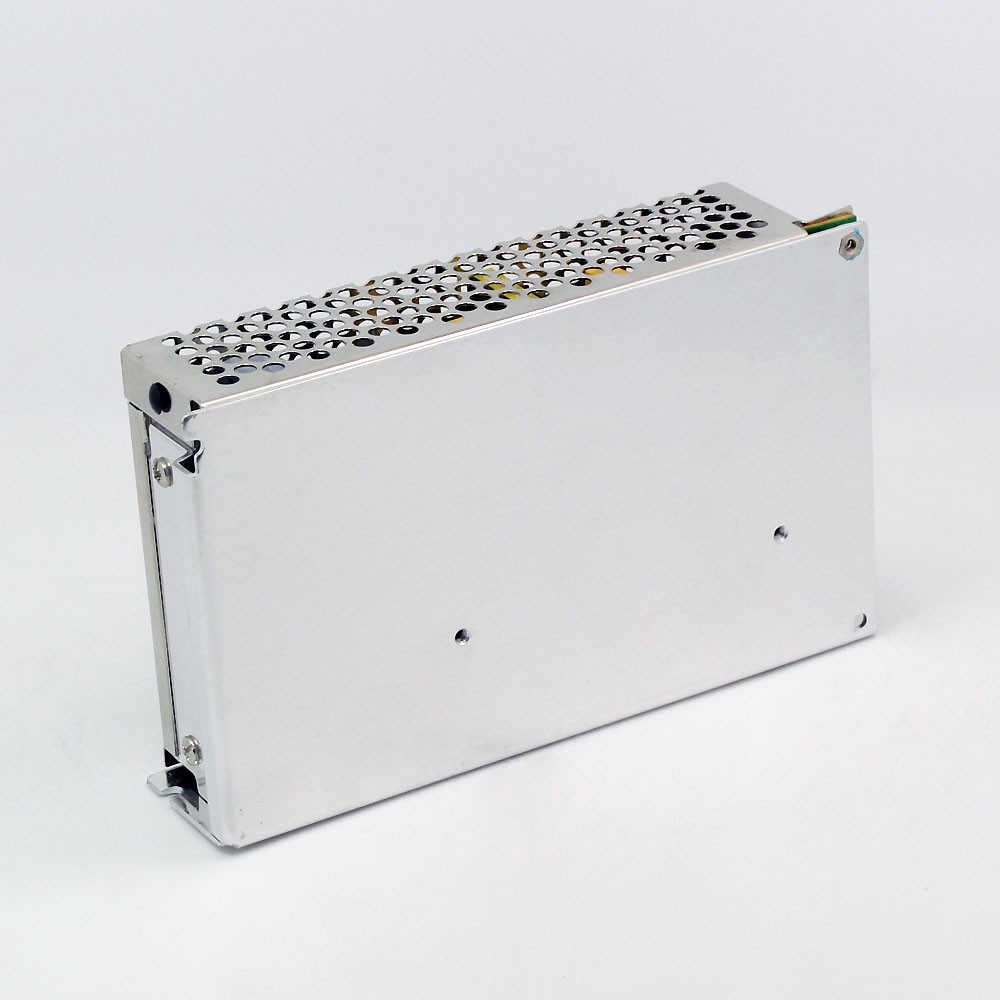

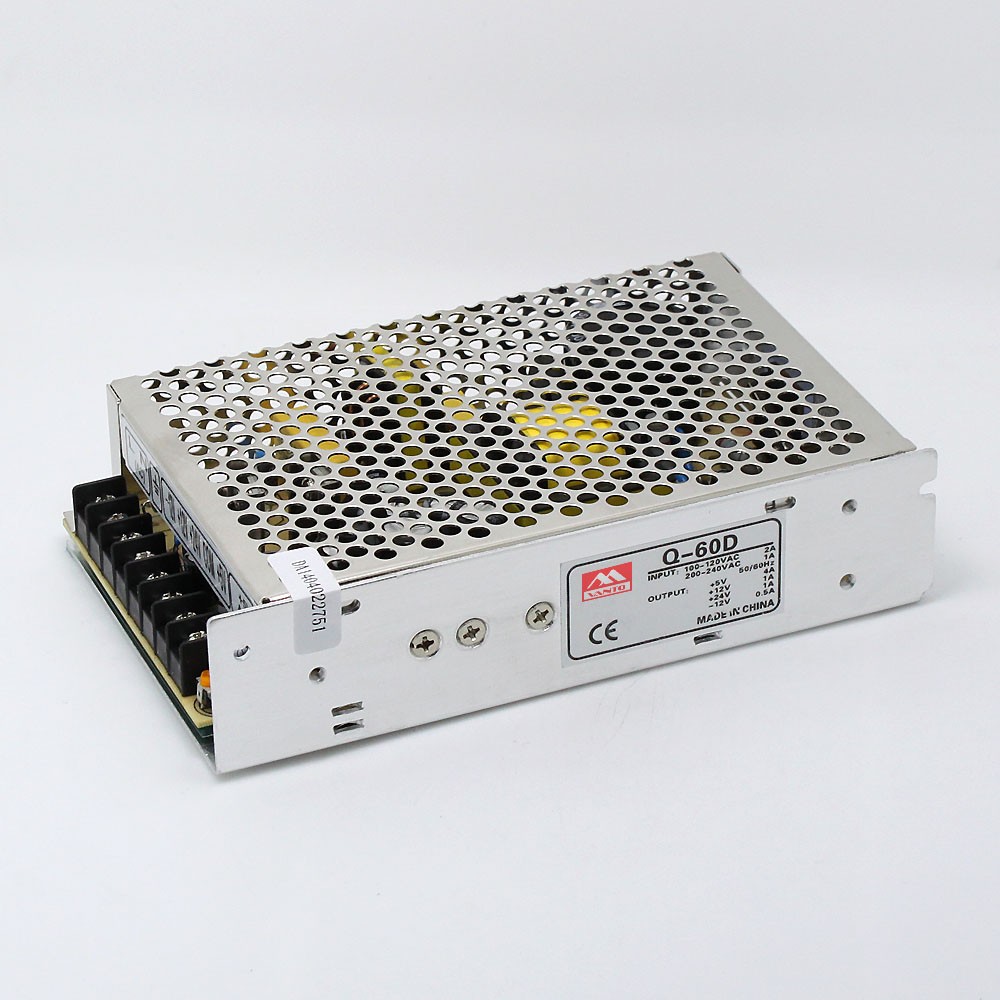

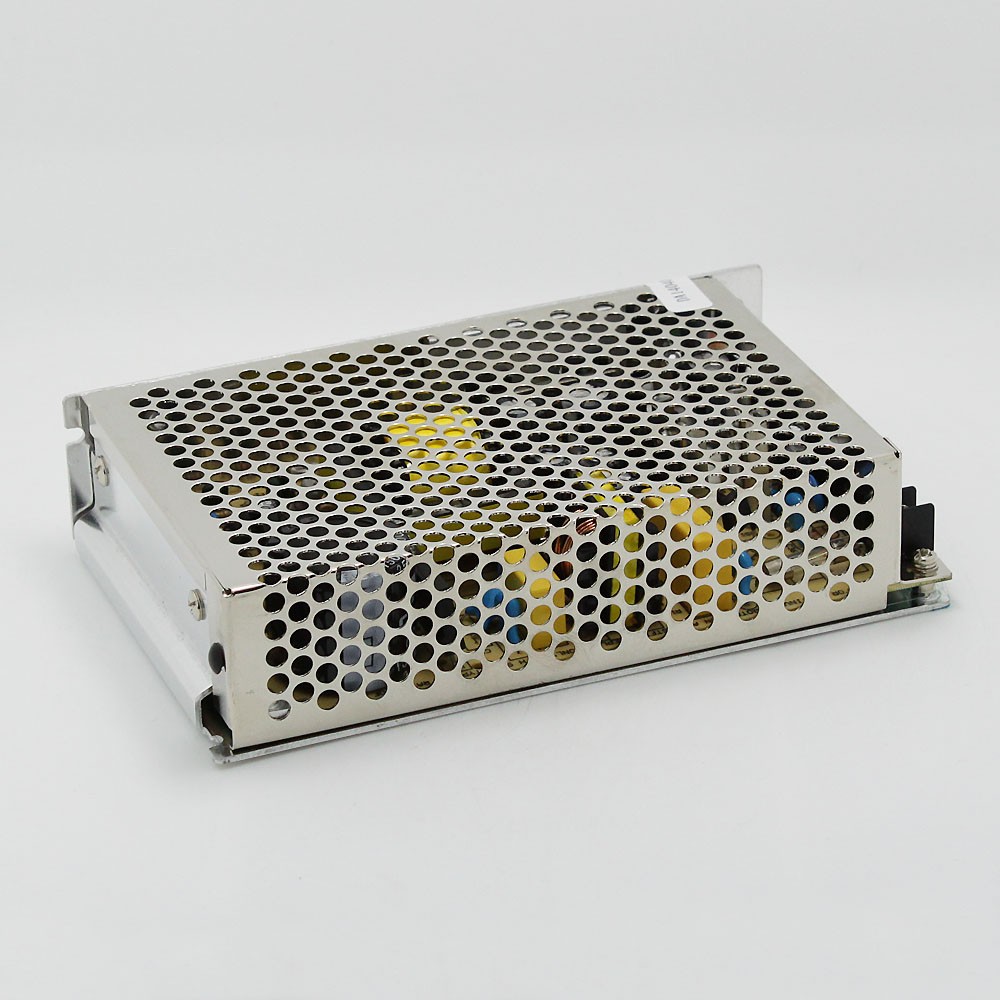

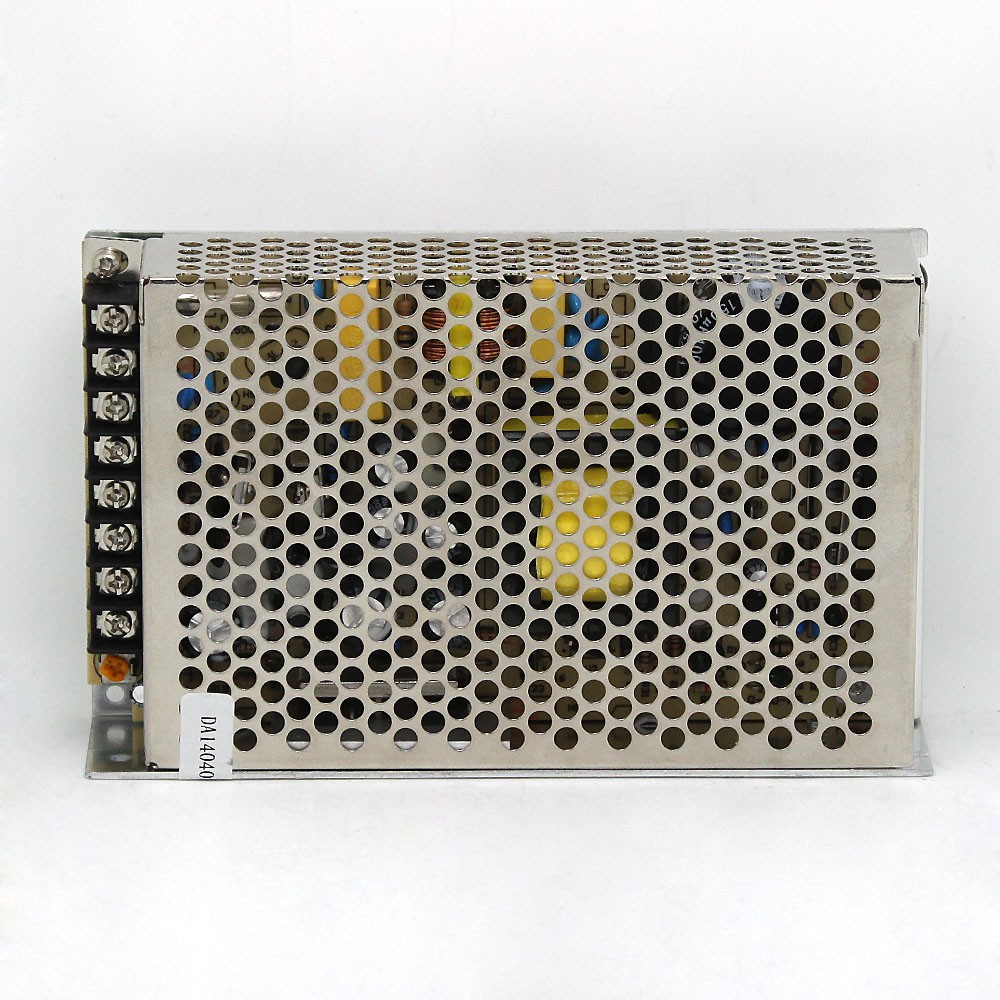

60W Quad Output AC to DC SMPS Switch Mode Power Supply Packing Show

60W Quad Output AC to DC SMPS Switch Mode Power Supply FAQ

Q:1.How do you control the products' quality?

A:Auto inspection machine and manual testing together before packing.


Q:2.What's your payment term?
A:We usually accept T/T(30% deposit,the balance before delivery.)
Samples cost can be paid by Western Union,MoneyGram

Q:3.Would you accept to use our logo?
A:If you have good quantity,we can make OEM for you.

Q:4.Can I get a sample for reference?
A:We provide free samples for testing,you only need to pay the courier cost.

Q:5.What is your MOQ?
A:The MOQ can be only 1 piece.

Q:6.What is your delivery time?
A:Usually it takes 7-25 working days depends on items and quantity.

Q:7.What is your warranty time of the products?
A:12-24 months
