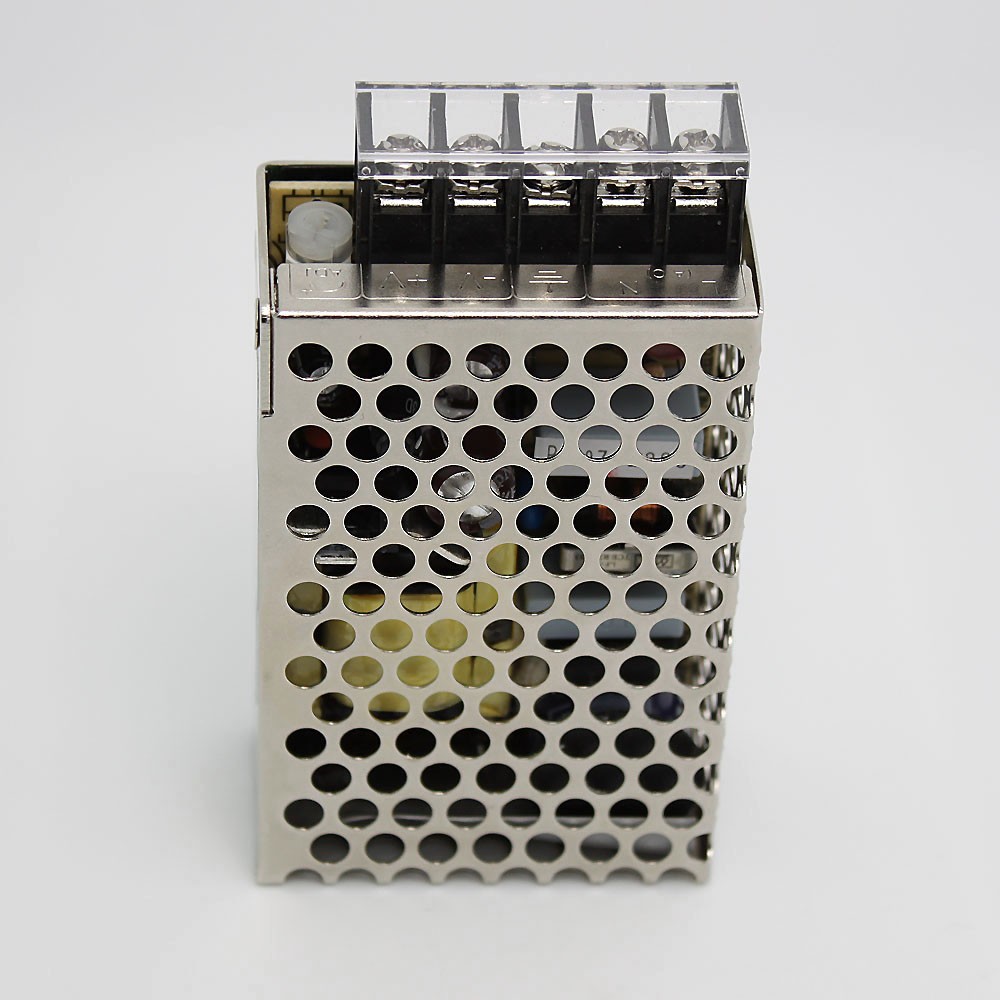

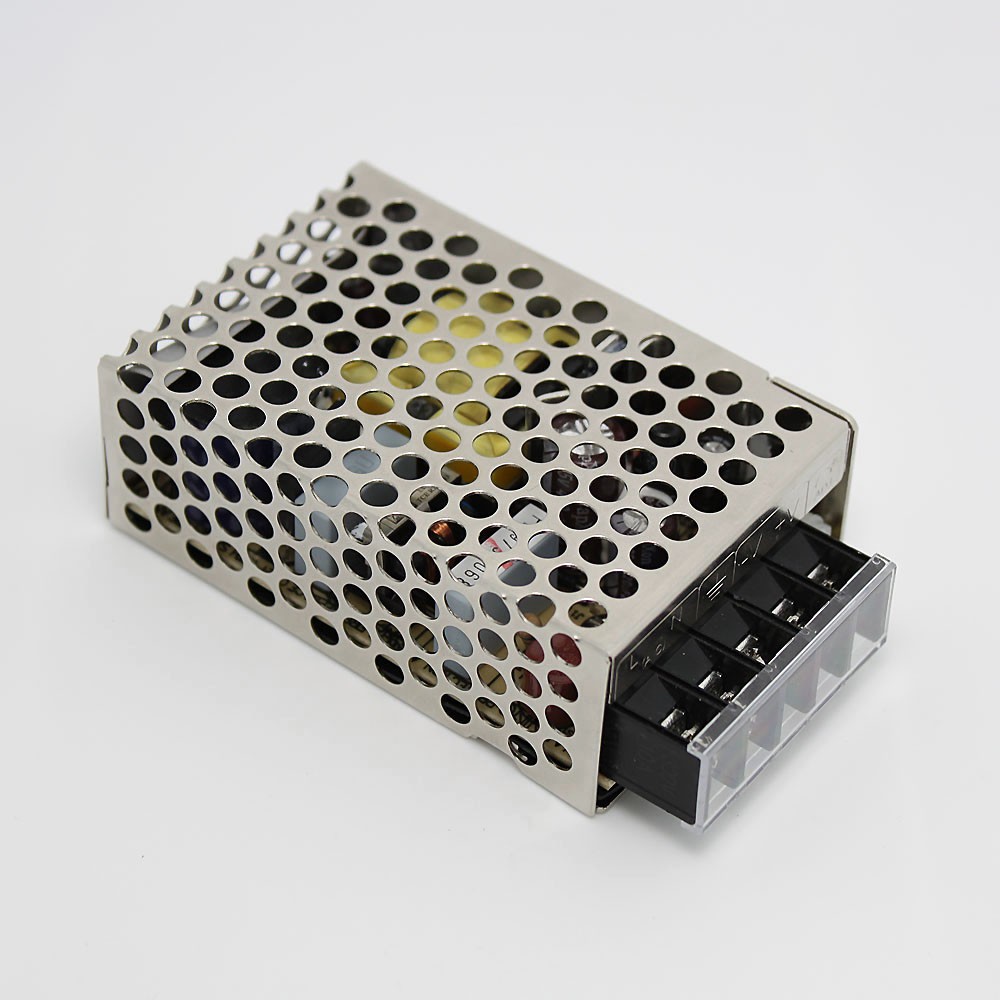

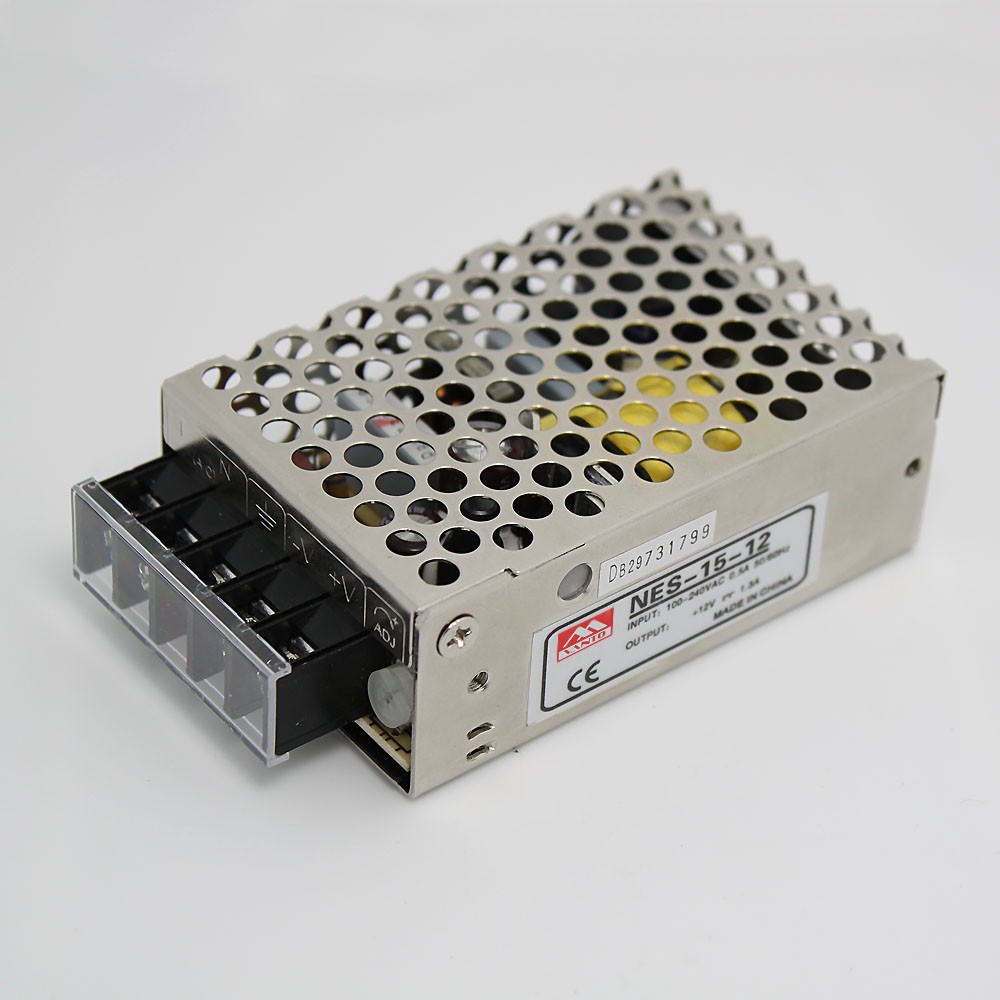

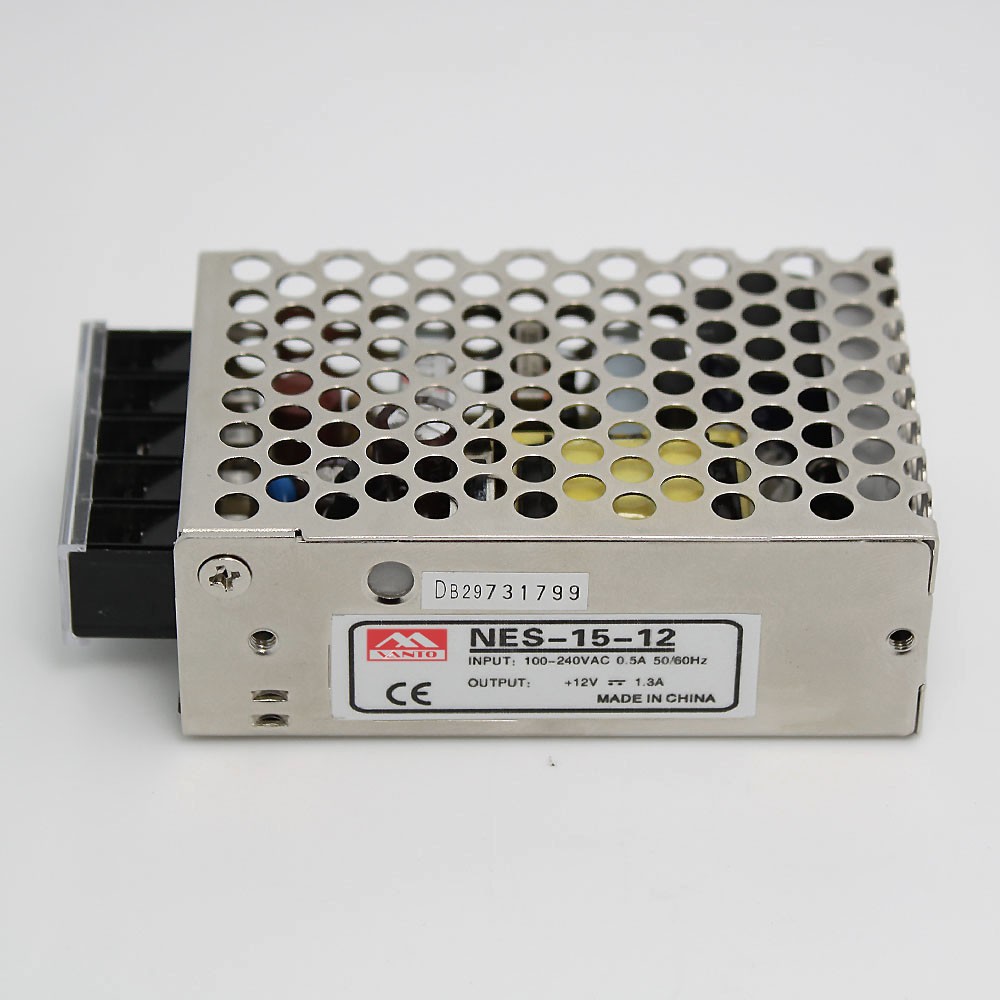

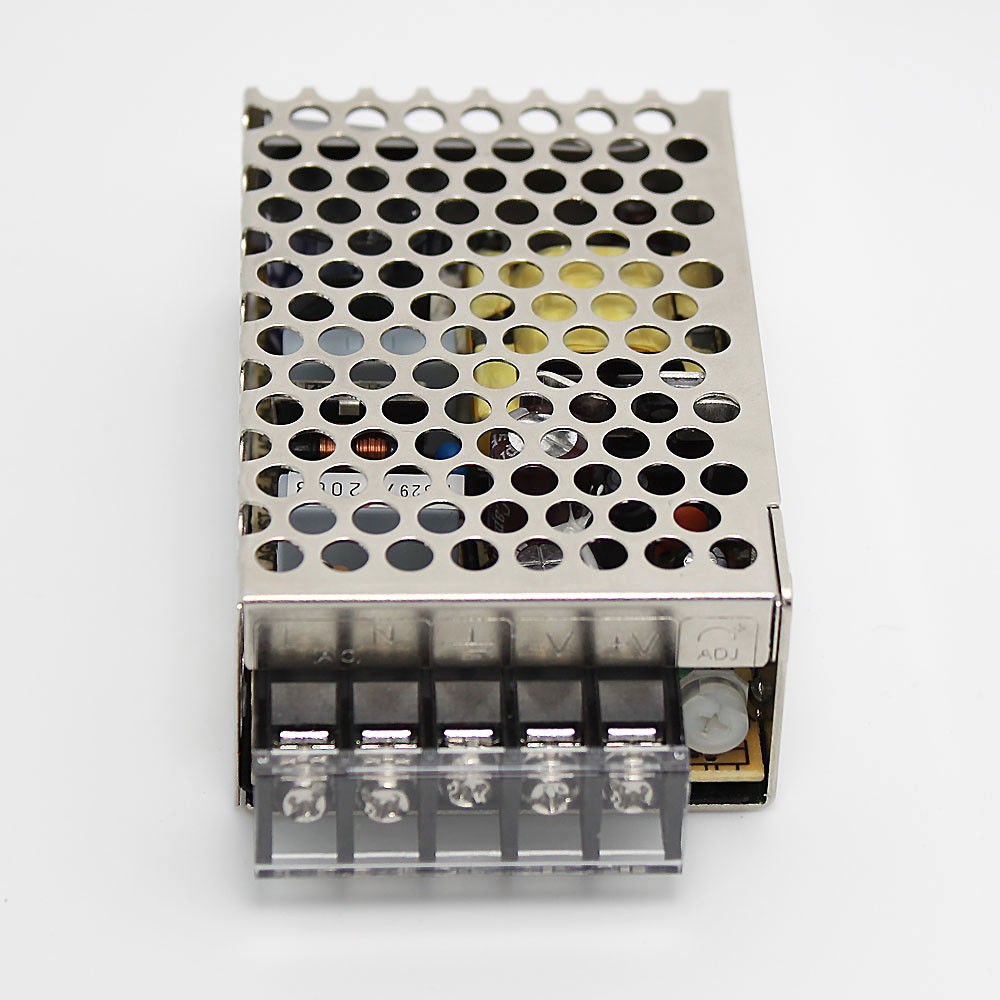

NES-15W Switched Mode Power Supply

1. AC input range selectable by switch
2. Protections: Short circuit / Overload / Over voltage / Over temperature
3. 100% full load burn-in test
4. Low cost, high reliability
5. 24 months warranty
6. Size:78×51×28mm (L*W*H)

OnLine Service:

E-mail Us PDF Download
vantoele 75606132
【Prev Products】 【Next Products】

Description

NES-15W SMPS Switched Mode Power Supply Specificates

MODEL

NES-15-5

NES-15-12

NES-15-15

NES-15-24

NES-15-48

OUTPUT

DC VOLTAGE

5V

12V

15

24V

48

RATED CURRENT

3A

1.3A

1A

0.7A

0.35A

CURRENT RANGE

0 ~ 3A

0 ~ 1.3A

0 ~ 1A

0 ~ 0.7A

0 ~ 0.35A

RATED POWER

15W

15.6W

15W

16.8W

16.8W

RIPPLE & NOISE (max.)

150mVp-p

150mVp-p

150mVp-p

150mVp-p

200mVp-p

VOLTAGE ADJ. RANGE

4.75 ~ 5.5V

10.8 ~ 13.2V

13.5~16.5V

21.6 ~ 26.4V

43.2~52.8

VOLTAGE TOLERANCE

±2.0%

±1.0%

±1.0%

±1.0%

±1.0%

LINE REGULATION

±1.0%

±0.5%

±0.5%

±0.5%

±0.5%

LOAD REGULATION

±1.0%

±0.5%

±0.5%

±0.5%

±0.5%

SETUP, RISE TIME

1000ms,30ms at full load

HOLD TIME

100ms/230VAC 20ms/115VAC at full load

INPUT

VOLTAGE RANGE

85~264VAC or120~370VDC

FREQUENCY RANGE

47 ~ 63Hz

EFFICIENCY (Typ.)

80%

82%

83%

85%

83%

AC CURRENT

0.35A/115VAC 0.25A/230VAC

INRUSH CURRENT (max.)

COLD START 45A

LEAKAGE CURRENT

<3mA/240VAC

PROTECTION

OVERLOAD

Above 105% rated output power


Protection type : Constant current limiting,
recovers automatically after fault condition is reoved


OVER VOLTAGE

5.8~6.8V

14~16V

17~20V

28~32V

55~64V

Protection type :Shut off

ENVIRONMENT

WORKING TEMP.

-20 ~ +60°C

WORKING HUMIDITY

20 ~ 90% RH non-condensing

STORAGE TEMP., HUMIDITY

-30 ~ +85°C, 10 ~ 95% RH

TEMP. COEFFICIENT

±0.02%/ (0 ~ 40°C)

VIBRATION

10 ~ 500Hz, 2G 10min./1cycle, 60min

SAFETY & EMC

SAFETY STANDARDS

Desgin refer to UL1012,EN60950-1,EN61347-1,EN-61347-2 approved

WITHSTAND VOLTAGE

I/P-O/P:3KVAC I/P-FG:2KVAC O/P-FG:0.5KVAC

ISOLATION RESISTANCE

I/P-O/P, I/P-FG, O/P-FG:100M Ohms/500VDC

EMC EMISSION & IMMUNITY

EN55015,EN55022,EN55024,EN61000-2,EN61000-3,EN61547 approved

OTHERS

MTBF

500K hrs min

DIMENSION

78×51×28mm (L*W*H)

WEIGHT

0.18KG

NES-15W SMPS Switched Mode Power Supply Packing

NES-15W SMPS Switched Mode Power Supply Packing Show

NES-15W SMPS Switched Mode Power Supply FAQ

Q:1.How do you control the products' quality?

A:Auto inspection machine and manual testing together before packing.


Q:2.What's your payment term?
A:We usually accept T/T(30% deposit,the balance before delivery.)
Samples cost can be paid by Western Union,MoneyGram

Q:3.Would you accept to use our logo?
A:If you have good quantity,we can make OEM for you.

Q:4.Can I get a sample for reference?
A:We provide free samples for testing,you only need to pay the courier cost.

Q:5.What is your MOQ?
A:The MOQ can be only 1 piece.

Q:6.What is your delivery time?
A:Usually it takes 7-25 working days depends on items and quantity.

Q:7.What is your warranty time of the products?
A:24 months
