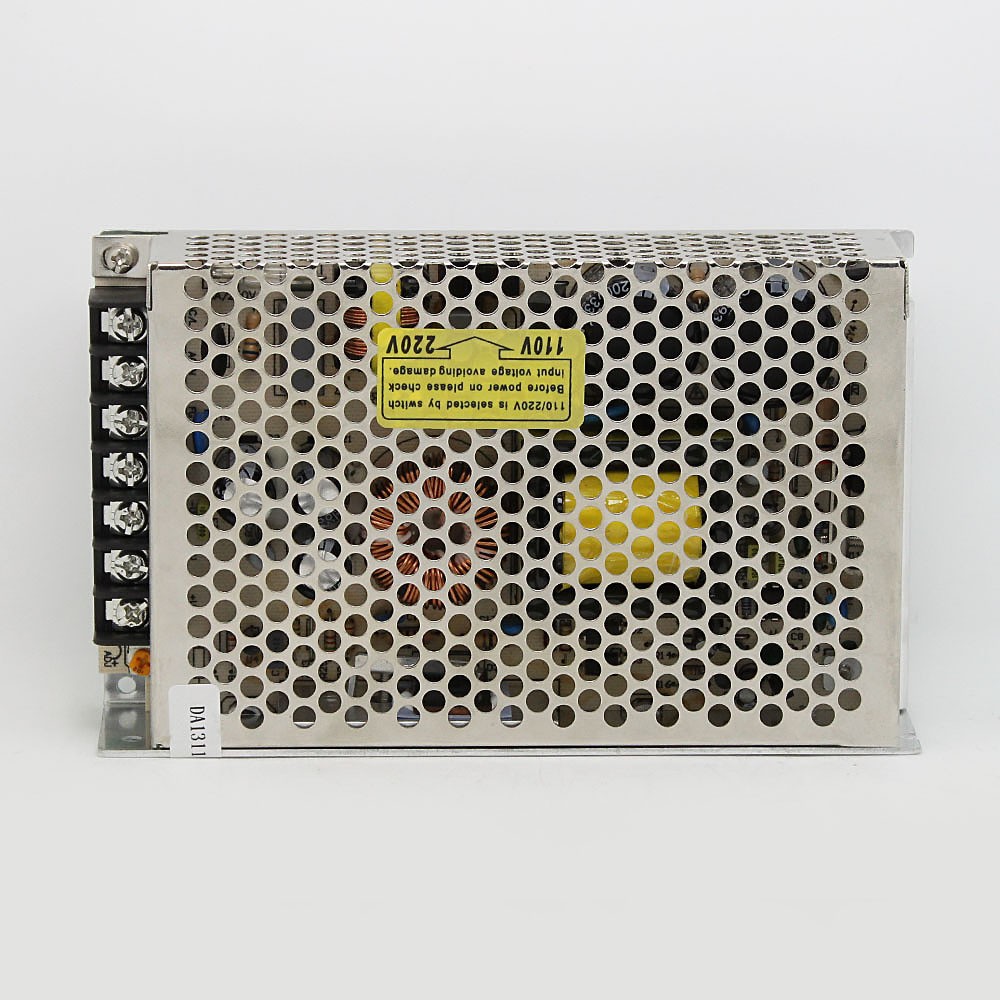

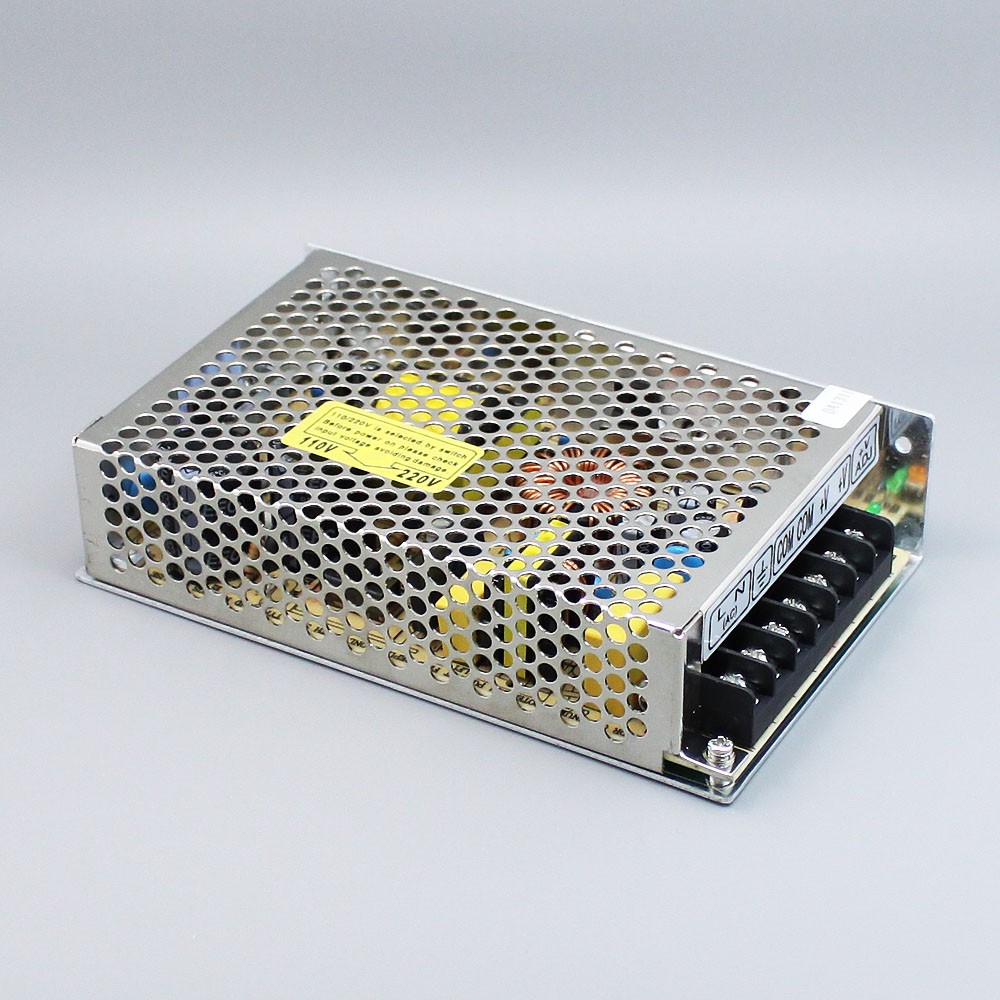

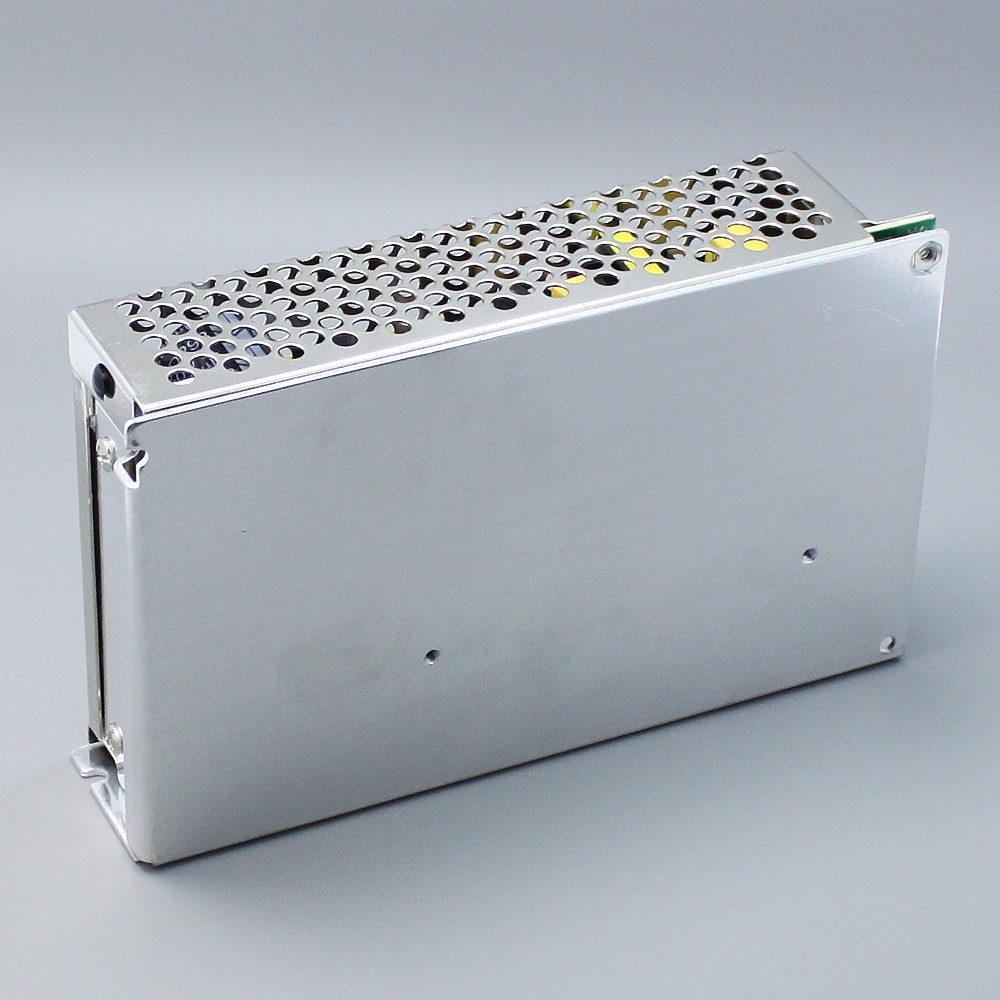

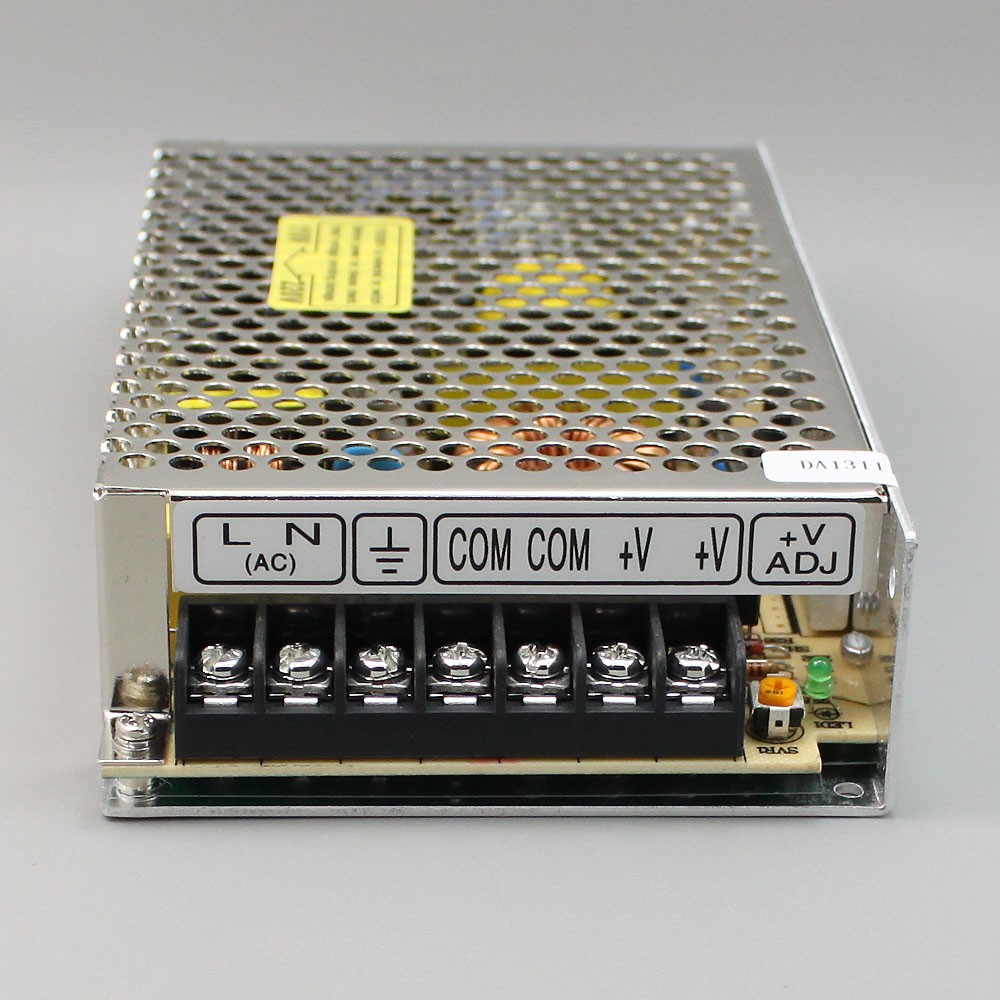

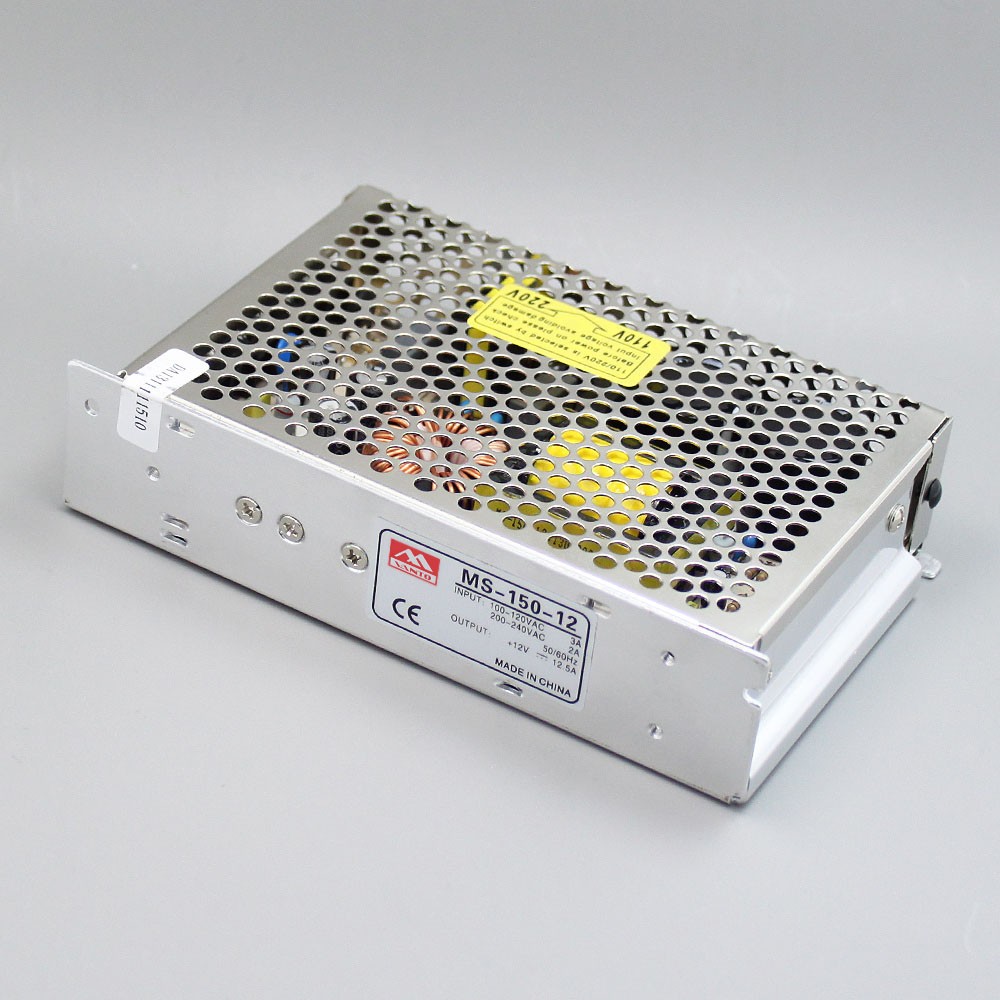

MS-150W Switch Mode Power Supply

1.High Efficiency and good price
2.Built-in EMI filter
3.100% full load burn-in test
4.Low output ripple and noise
5.Protection:Over load/Over voltage/Short circuit
6.2 years warranty
7.Size:199×98×38mm

OnLine Service:

E-mail Us PDF Download
vantoele 75606132
【Prev Products】 【Next Products】

Description

MS-150W Switch Mode Power Supply Specificates

MODEL MS-150-5 MS-150-12 MS-150-24 MS-150-48
Output DC Voltage 5V 12V 24V 48V
Rated current 30A 12.5A 6.25A 3.2A
Current range 0-30A 0-12.5A 0-6.25A 0-3.2A
DC power 150W 150W 150W 150W
Voltage ADJ.range ±10% ±10% ±10% ±10%
Voltage tolerance ±2% ±1% ±1% ±1%
Ripple and noise 100mVp-p 100mVp-p 100mVp-p 100mVp-p
Intet stability ±0.5% ±0.5% ±0.3% ±0.2%
Load stability ±0.5% ±0.5% ±0.3% ±0.2%
Intput AC voltage range 90~132VAC/180~264VAC 47~63Hz(The switch choice),254~373VDC
Current 3.2A/115V 1.6A/230V
Effi ciency 76% 80% 81% 82%
AC Inrush current Cold-start current 18A/115V 36A/230V
Leakage current < 1mA/240VAC
Protection Overload 105%~150% Type:pulsing hiccup shutdown Resete:auto recovery
Over voltage 5.75~6.75 13.8~16.2V 27.6~32.4V 55.2~64.81
100ms,50ms,20ms
Safety Setup,rise,hold up time 100ms,50ms,20ms
Vibration 10~500Hz,2G 10min,/1 cycle
Withstand voltage Input and output internal:1.5KvAc,input and enclosure:1.5KvAc,Output and enclosure:0.5KvAc
Isolation resistance Input and output internal:Input and enclosure,Output and enclosure:500VDC/100MΩ
Environment ±0.03%/°C (0~50°C )
Temperature coeffi cient
Working temperature and humidity -10°C ~+60°C,20%~90%RH
Store temperature and humidity -20°C ~+85°C,10%~95%RH
Other Overall dimension 199×98×38mm 30PCS/CARTON
Weight 0.69Kg
Certificate CE EMC Authenticate EN55022:2010 EN61000-3-2:2006+AL:2009 EN61000-3-3:2008
EN55024:2010 EN55015:2006+AL2007+2009 EN61547:2009
MS-150W Switch Mode Power Supply Packing

MS-150W Switch Mode Power Supply Packing ShowMS-150W Switch Mode Power Supply FAQ


Q:1.How do you control the products' quality?

A:Auto inspection machine and manual testing together before packing.


Q:2.What's your payment term?
A:We usually accept T/T(30% deposit,the balance before delivery.)
Samples cost can be paid by Western Union,MoneyGram

Q:3.Would you accept to use our logo?
A:If you have good quantity,we can make OEM for you.

Q:4.Can I get a sample for reference?
A:We provide free samples for testing,you only need to pay the courier cost.

Q:5.What is your MOQ?
A:The MOQ can be only 1 piece.

Q:6.What is your delivery time?
A:Usually it takes 7-25 working days depends on items and quantity.

Q:7.What is your warranty time of the products?
A:24 months
