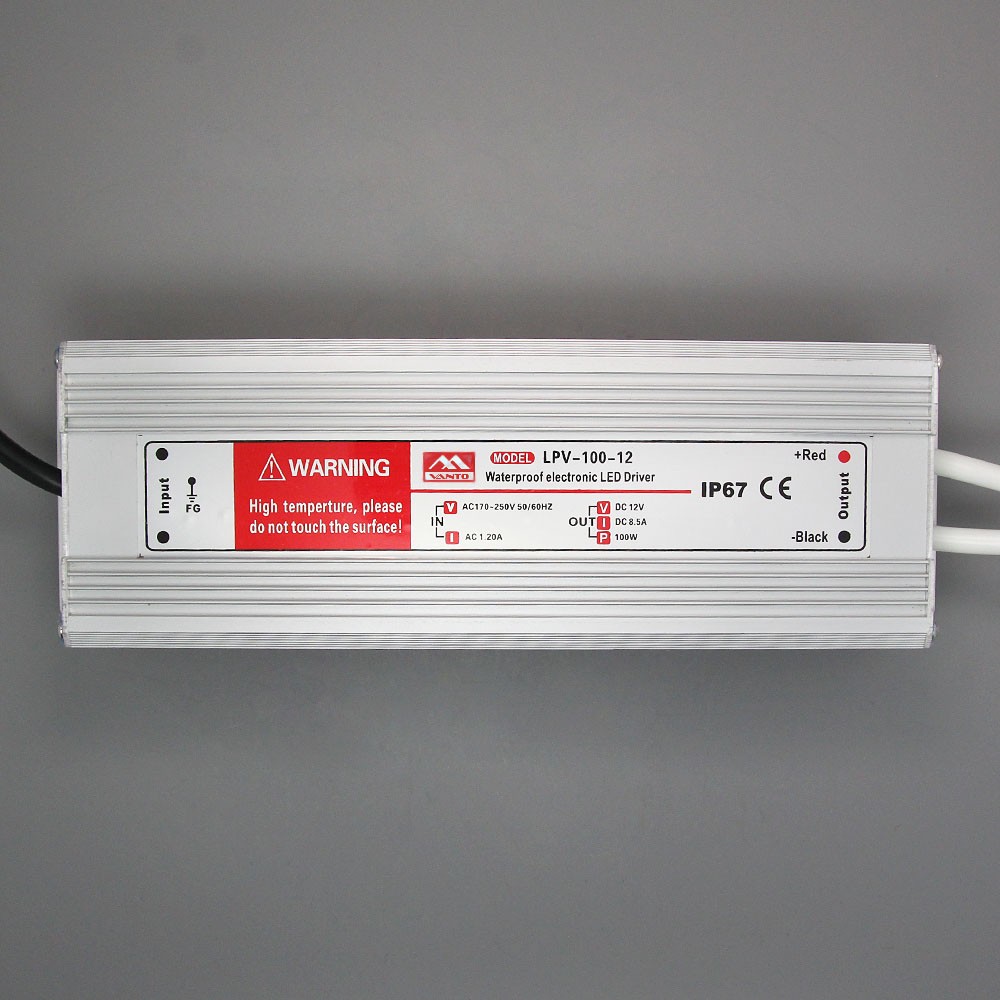

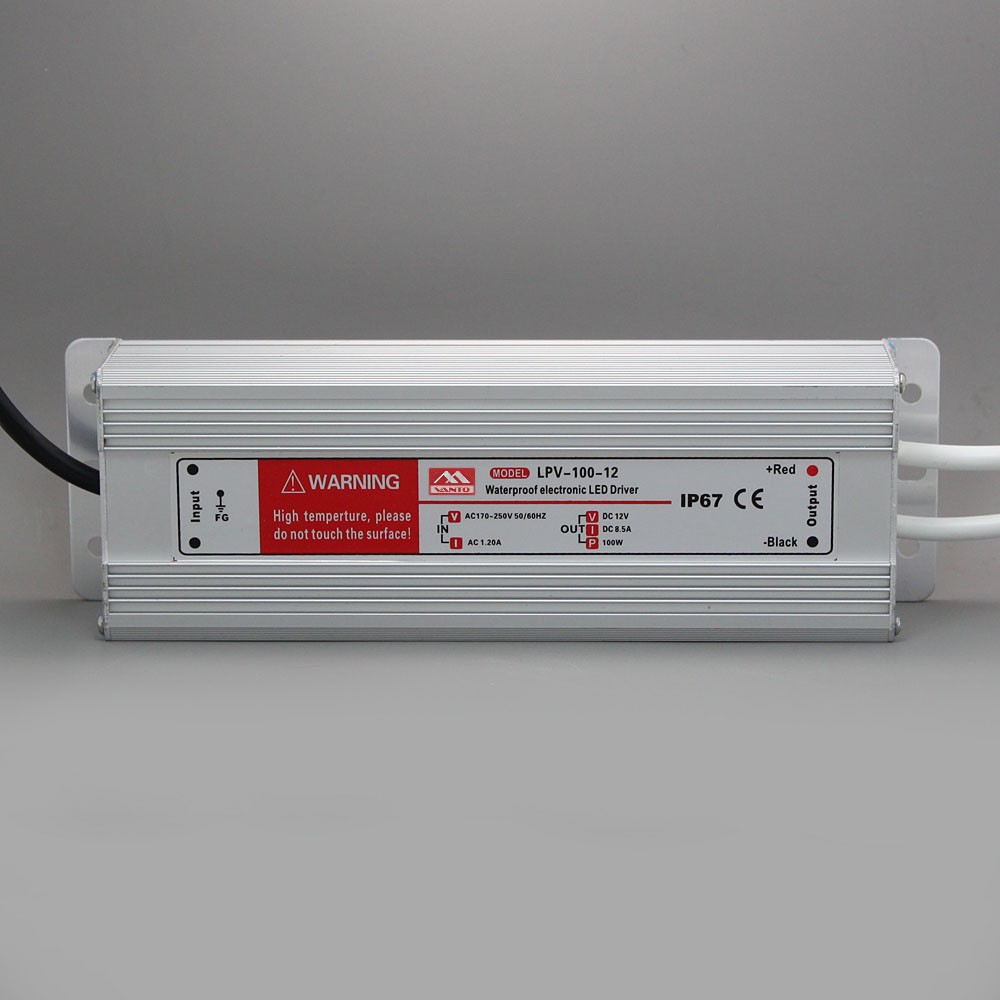

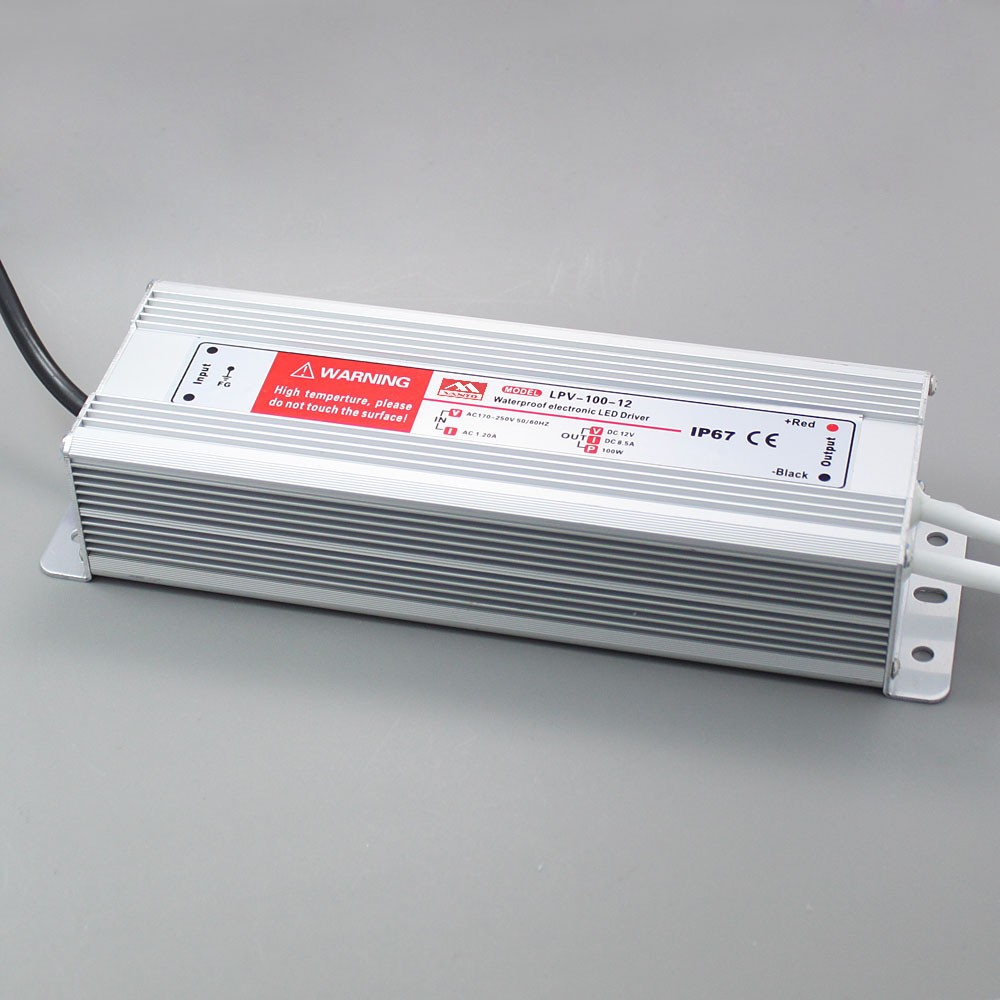

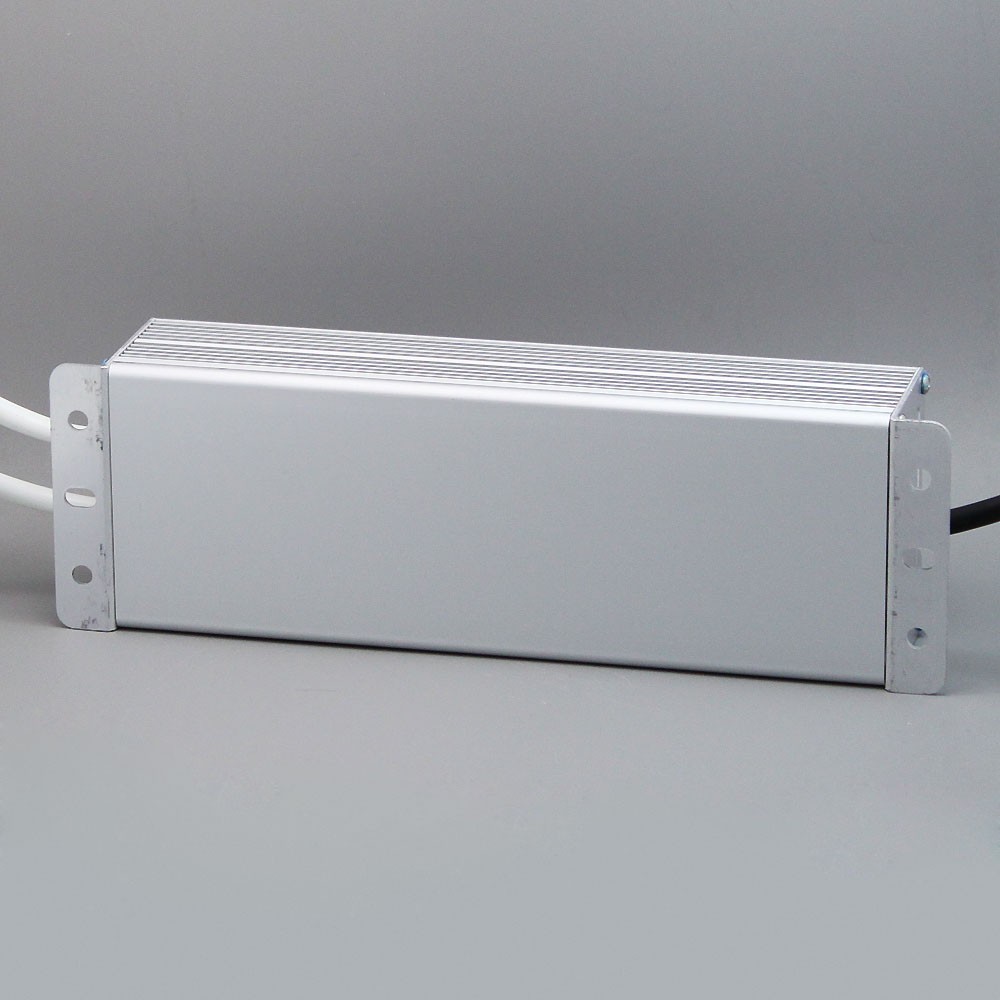

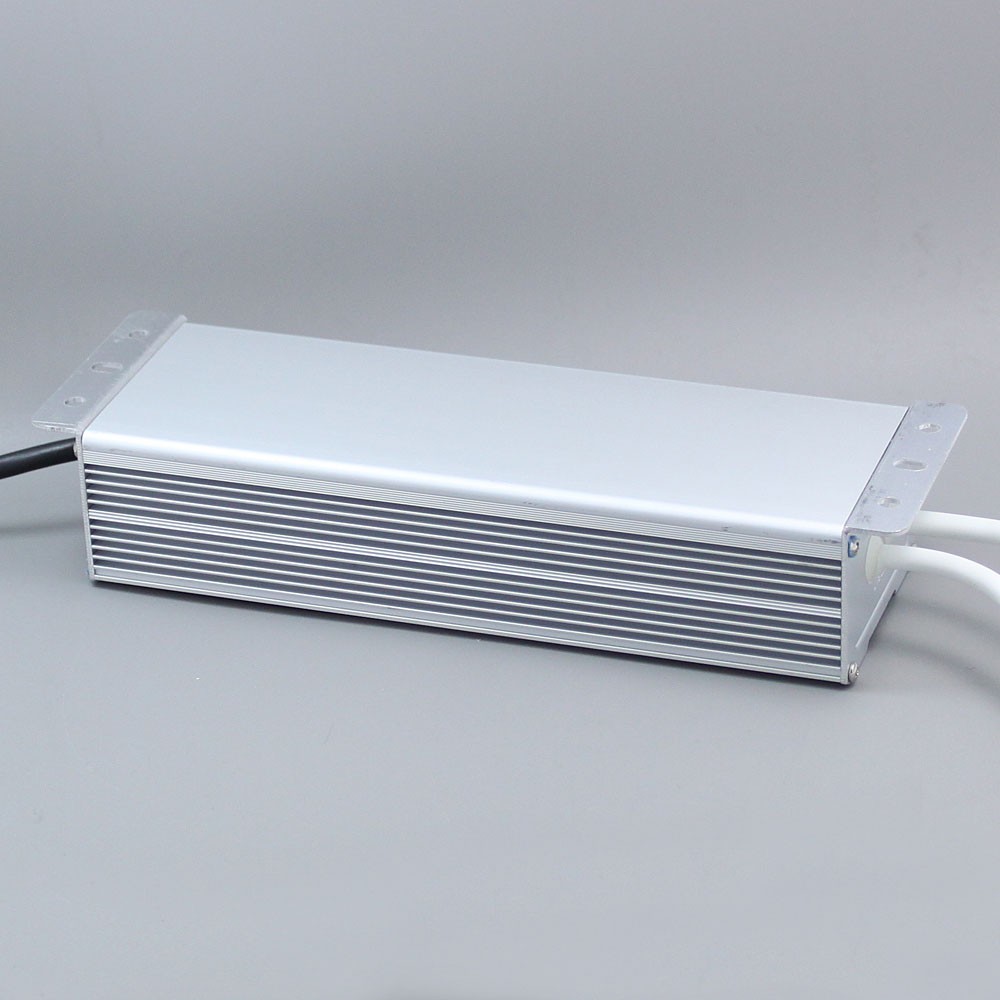

LPV-100W Waterproof LED Switch Power Supply
You are here: Home» Products » Switching Power Supply » LED Waterproof Series LPV

LPV-100W Waterproof LED Switch Power Supply

1. 180-264VAC input range
2. Small volume, light weight, high efficiency
3. Characteristics: short circuit protection miscalculates/overload/pressure/thermal
4. Air cooling
5. Meet the IP67 miscalculates level
6. 100% full load test machine
7. 2 years warranty
8. Size: 222 x 130 x 65mm

OnLine Service:

E-mail Us PDF Download
vantoele 75606132
【Prev Products】 【Next Products】

Description

LPV-100W Waterproof LED switching Mode Power Supply Specificates

Model

LPV-100-12

LPV-100-24

DC output voltage

12V

24V

Output voltage error

±1%

±1%

Rated output current

8.5A

4.5A

Output current rage

0-8.5A

0-4.5A

Wave and noise

80mVp-p

100mVp-p

Inlet stability

±0.5%

±0.5%

Load stability

±0.5%

±0.5%

DC output power

100W

100W

Efficiency

85%

86%

AC input voltage range

180-264VAC

Input current

1.2A/115V 0.55A/230V

AC impulse current

Cold-start current 13A/115V 26A/230V

Leakage current

<0.75mA/240VAC

Over load protection

105%~150% rated output power

Protection:Hiccup mode,recover automatically

Over voltage protection

13~16V

28~32V

Protection:Shut down output voltage

Short circuit protection

Protection:Hiccup mode

Temperature coefficient

±0.03%(050)

Setup rise hold up time

100ms,60ms/230VAC

Vibration

10~500Hz,2G 10min./1cycle,Period for 60min,Each axes

Withstand voltage

I/P-O/P:2.5KVAC I/P-FG:2KVAC O/P-FG:0.5KVAC

Isolation resistance

I/P-O/P:100M Ohms / 500VDC / 25 / 65% RH

Working temperature and humidity

-10+60,20%90%RH

Store temperature and humidity

-20+85,10%95RH

Overall dimension

222x130x65mm

Weight

1.2KG

Safety standards

Desgin refer to UL1012,EN60950-1,EN61347-1,EN-61347-2 approved

EMC

EN55015,EN55022,EN55024,EN61000-2,EN61000-3,EN61547

LPV-100W Waterproof LED switching Mode Power Supply Packing

LPV-100W Waterproof LED switching Mode Power Supply Packing Show
LPV-100W Waterproof LED switching Mode Power Supply FAQ

Q:1.How do you control the products' quality?

A:Auto inspection machine and manual testing together before packing.


Q:2.What's your payment term?
A:We usually accept T/T(30% deposit,the balance before delivery.)
Samples cost can be paid by Western Union,MoneyGram

Q:3.Would you accept to use our logo?
A:If you have good quantity,we can make OEM for you.

Q:4.Can I get a sample for reference?
A:We provide free samples for testing,you only need to pay the courier cost.

Q:5.What is your MOQ?
A:The MOQ can be only 1 piece.

Q:6.What is your delivery time?
A:Usually it takes 7-25 working days depends on items and quantity.

Q:7.What is your warranty time of the products?
A:24 months
